Запчасти Case IH LA-SERIES (083) - HYDRAULIC SINGLE & DUAL CONTROL UNIT - MAIN HOUSING & PUMP DRIVE - FOR SINGLE & DUAL (08) - HYDRAULICS

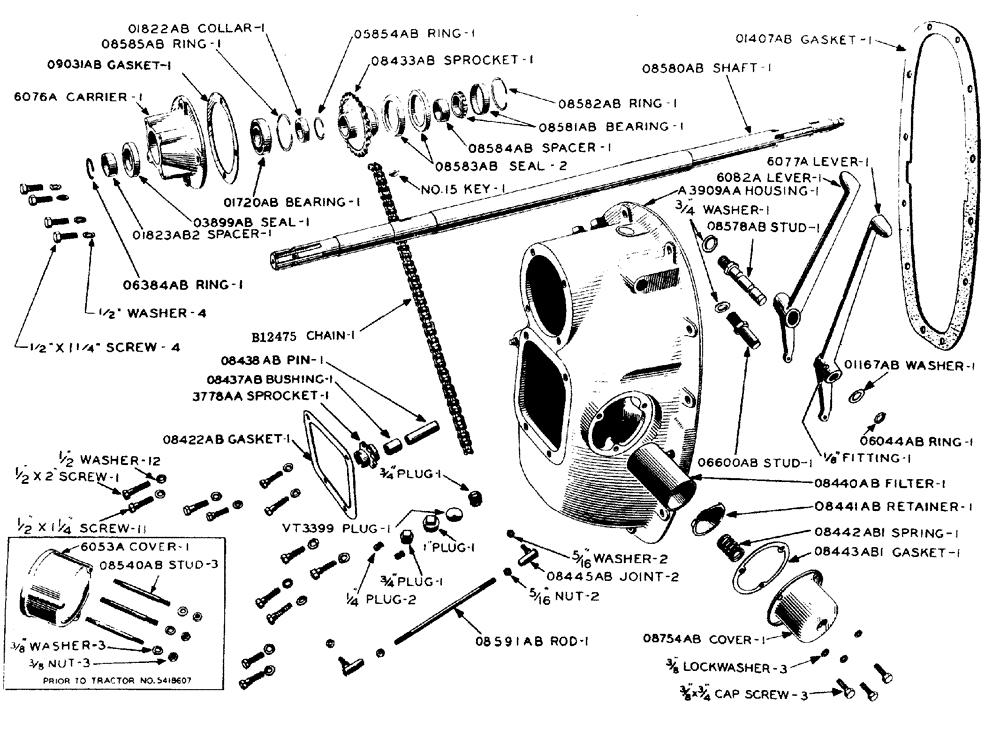

Схема запчастей Case IH LA-SERIES - (083) - HYDRAULIC SINGLE & DUAL CONTROL UNIT - MAIN HOUSING & PUMP DRIVE - FOR SINGLE & DUAL (08) - HYDRAULICS
b12475
08443ab1
01167ab
vt3399
06600ab
08754ab
01720ab
6082a
3778aa
08582ab
08585ab
6077a
08591ab
6076a
08440ab
06044ab
01407ab
08433ab
08422ab
08442ab1
08445ab
08578ab
06384ab
08584ab
08580ab
05854ab
08583ab
01822ab
08540ab
03899ab
01823ab2
08438ab
a3909aa
09031ab
08437ab
08441ab
08581ab
6053a

Артикул

Название

Примечание

Количество

a9344

A9344

lever, hand, valve, hydraulic, for dual valve (See 08578AB1)

1шт.

a11708

A11708

outer, hand ,valve control, for single and dual valve (Can use 6077A)

1шт.

FITTING straight, Lincoln No. 5000, 1/8", for single and dual valve

1шт.

a11709

A11709

LEVER inner, hand, valve control, for dual valve (Can use 6082A)

1шт.

FITTING straight, Lincoln No. 5000, 1/8", for dual valve

1шт.

1791dx

1791DX

CHAIN (AG),79 Links x 15.88mm = 1254.13mm

drive, hydraulic pump, for single and dual valve

2шт.

6053a

6053A

COVER filter, hydraulic pump, casting, for single and dual valve (See O8754AB)

1шт.

6075a

6075A

HOUSING main, hydraulic (Use A3909AA)

1шт.

a6075a

A6075A

HOUSING main, hydraulic (Use A3909AA)

1шт.

6077a

6077A

LEVER outer, hand, valve control, for single and dual valve

1шт.

FITTING straight, Lincoln No. 5000, 1/8", for single and dual valve

1шт.

6082a

6082A

LEVER inner, hand, valve control, for dual valve

1шт.

FITTING straight, Lincoln No. 5000, 1/8", for dual valve

1шт.

01167ab

380718R1

WASHER

lever, hand, valve control, hydraulic, for single and dual valve

1шт.

01407ab

O1407AB

X

GASKET housing, main, hydraulic, for single and dual valve

1шт.

06044ab

O6044AB

X

RING snap, stud, hand lever, valve control, hydraulic, for single and dual valve (Use with O6600AB)

1шт.

06600ab

O6600AB

STUD lever, hand, valve control, hydraulic, for single valve (See O8578AB)

1шт.

WASHER lock, standard, 3/4", for single valve

1шт.

08422ab

1349382C1

GASKET

body, valve, hydraulic, for single and dual valve

1шт.

08433ab

O8433AB

SPROCKET drive, pump, hydraulic, 26 teeth, for single and dual valve

1шт.

KEY Woodruff No. 15, for single and dual valve

1шт.

08435ab

A27372

CHAIN (AG)

CHAIN drive, pump, hydraulic, for single and dual valve

1шт.

08437ab

O8437AB

BUSHING for 3778AA driven sprocket, for single and dual valve

1шт.

08438ab

O8438AB

PIN bearing, sprocket, driven, for single and dual valve

1шт.

08440ab

A27377

FILTER CARTRIDGE

FILTER oil, pump, hydraulic, 3" outside diameter x 5" long, for single and dual valve (Used with O8754AB cover) (See O8587AB)

1шт.

08441ab

A27378

RETAINER

filter, pump, hydraulic, for single and dual valve

1шт.

08442ab

A27379

SPRING

filter, pump, hydraulic, for single and dual valve

1шт.

08443ab

A27380

GASKET

cover, filter, pump, hydraulic, for single and dual valve

1шт.

08445ab

O8445AB

X

JOINT ball, rod, valve control, hydraulic, for single valve

2шт.

08445ab

O8445AB

X

JOINT ball, rod, valve control, hydraulic, for double valve

4шт.

WASHER lock, standard, 5/16", for single valve

2шт.

WASHER lock, standard, 5/16", for double valve

4шт.

08540ab

O8540AB

STUD for 6053A cover, for single and dual valve

3шт.

NUT light, hex, N.F. thread, 3/8", for single and dual valve

3шт.

WASHER lock, standard, 3/8", for single and dual valve

3шт.

08578ab1

O8578AB1

STUD lever, hand, valve control, for dual valve (See O6600AB)

1шт.

WASHER lock, standard, 3/4", for dual valve

1шт.

08587ab

O8587AB

FILTER oil, pump, hydraulic, 3" outside diameter x 5-3/4" long, for single and dual valve (Used with 6053A cover) (See O8440AB)

1шт.

08591ab

O8591AB

ROD control, valve, hydraulic, for single valve

1шт.

08591ab

O8591AB

ROD control, valve, hydraulic, for dual valve

2шт.

NUT jam, hex, N.F. thread, 5/16", for single valve

2шт.

NUT jam, hex, N.F. thread, 5/16", for dual valve

4шт.

08754ab

O8754AB

COVER filter, pump, hydraulic, pressed steel, for single and dual valve (See 6053A)

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 3/4", for single and dual valve

3шт.

WASHER lock, shakeproof, internal tooth, No. 1220, 3/8", for single and dual valve

3шт.

09639ab

378066R1

SNAP RING,#X74, .616" Dia, E-Type

RING "E" for 08578AB1 or A9344 stud, for dual valve

1шт.

b12505

241-1315

LINK, CONNECTING

LINK connecting, for 08435AB roller chain, for single and dual valve

1шт.

b12506

241-1715

LINK,15.88mm Pitch

LINK offset, for 08435AB roller chain, for single and dual valve

1шт.

b12507

42362400

CHAIN LINK

LINK roller, for 08435AB roller chain, for single and dual valve

1шт.

vt3399

VT3399

PLUG Welch, housing, main, hydraulic, 1", for single and dual valve

1шт.

3778aa

3778AA

SPROCKET driven, pump, hydraulic, with bushing, 11 teeth, for single and dual valve

1шт.

3909aa

3909AA

HOUSING main, hydraulic (Use A3909AA)

1шт.

a3909aa

A3909AA

HOUSING main, hydraulic, single and dual valve

1шт.

PLUG pipe, square head, Lisle magnetic No. 403KQ, 3/4", single and dual valve

1шт.

PLUG pipe, square head, 1/4", for single and dual valve

2шт.

PLUG pipe, square head, 3/4", for single and dual valve

1шт.

PLUG pipe, square head, 1", for single and dual valve

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4", for single and dual valve

11шт.

SCREW cap, hex head, N.C. thread, 1/2" x 2", for single and dual valve

1шт.

WASHER lock, standard, 1/2", for single and dual valve

12шт.

6076a

6076A

CARRIER bearing, rear, shaft, power take off

1шт.

SCREW cap, hex head, rear bearing carrier, shaft, power take off, N.C. thread, 1/2" x 1-1/4"

4шт.

WASHER lock, standard, 1/2", rear bearing carrier, shaft, power take off

4шт.

06693a

O6693A

BEARING front end, shaft, power take off (New departure No. 1305)

1шт.

0809ab

O809AB

SPRING plunger, shifter shaft, power take off

1шт.

0831ab

O831AB

CAP front, power take off

1шт.

SCREW cap, hex head, front cap, power take off, N.C. thread, 3/8" x 5/8"

3шт.

WASHER lock, standard, front cap, power take off, 3/8"

3шт.

0907ab

O907AB

WASHER front end, shaft, power take off

1шт.

01407ab

O1407AB

X

GASKET cover, rear, transmission case

1шт.

01488ab

A26538

GASKET

for 0831AB power take off front cap

1шт.

01720ab

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING rear, shaft, power take off (New departure No. 1207)

1шт.

01815ab

A26597

NUT

front, shaft, power take off

1шт.

PIN cotter, front nut, shaft, power take off, 1/8" x 1-1/4"

1шт.

01816ab

O1816AB

WASHER front, shaft, power take off

1шт.

01818ab

O1818AB

CLUTCH gear, power take off

1шт.

01820ab

O1820AB

FORK shifter, power take off

1шт.

SCREW cap, hex head, shifter fork, power take off, N.C. thread, 3/8" x 1-1/4"

1шт.

WASHER lock, standard, shifter fork, power take off, 3/8"

1шт.

01822ab

A26604

COLLAR

shaft, power take off

1шт.

01823ab2

A26606

SPACER

rear, shaft, power take off

1шт.

03674ab

O3674AB

PLUNGER shifter, power take off

1шт.

a26760

A26760

OIL SEAL

oil, rear, shaft, power take off

1шт.

04244ab

O4244AB

SEAL oil, shaft, shifter, power take off

1шт.

05386ab

O5386AB

PLATE mounting, guard, power take off

1шт.

BOLT carriage, mounting plate, guard, power take off, 3/8" x 1", with hex nut

2шт.

WASHER lock, shakeproof, mounting plate, guard, power take off, No. 4020-26, type 40, 3/8"

2шт.

05854ab

67755C1

RING

snap, front, shaft, power take off

1шт.

06102ab

O6102AB

BUSHING gear, power take off

1шт.

06384ab

O6384AB

RING snap, rear, shaft, power take off

1шт.

08069ab

O8069AB

PIN shoulder, hand lever, power take off

1шт.

PIN cotter, shoulder pin, hand lever, power take off, 3/32" x 1/2"

1шт.

WASHER plain, shoulder pin, hand lever, power take off, 3/8"

1шт.

08070ab

O8070AB

SHAFT shifter, power take off

1шт.

a27335

A27335

GUARD

power take off

1шт.

08580ab

O8580AB

SHAFT power take off, 1-3/8" x 54-29/32" long

1шт.

KEY Woodruff No. 15, shaft, power take off

1шт.

PIN cotter, shaft, power take off, 1/8" x 1-1/4"

1шт.

08581ab

O8581AB

BEARING front, shaft, power take off, Hyatt type BU-1008Z hy-load

1шт.

08582ab

A27414

RING

snap, retainer, front bearing, shaft, power take off

1шт.

08583ab

O3866AB

OIL SEAL

SEAL oil, front, shaft, power take off

2шт.

08584ab

O8584AB

SPACER for 08433AB drive sprocket

1шт.

08585ab

512889R1

RING

snap, retainer, rear bearing, shaft, power take off

1шт.

08794ab

O8794AB

GUARD tubular, shaft, power take off

1шт.

SCREW cap, hex head, tubular guard, shaft, power take off, N.C. thread, 3/8" x 7/8"

3шт.

WASHER lock, shakeproof, tubular guard, shaft, power take off, No. 4020-26, type 40, 3/8"

3шт.

09031ab

A27588

GASKET

carrier, rear bearing, power take off

1шт.

2448aa

2448AA

GEAR and BUSHING power take off

1шт.

3586aa

3586AA

LEVER hand, power take off

1шт.

PIN groove, hand lever, power take off, type 5, 5/16" x 1"

1шт.

Выбрано товаров: 110
