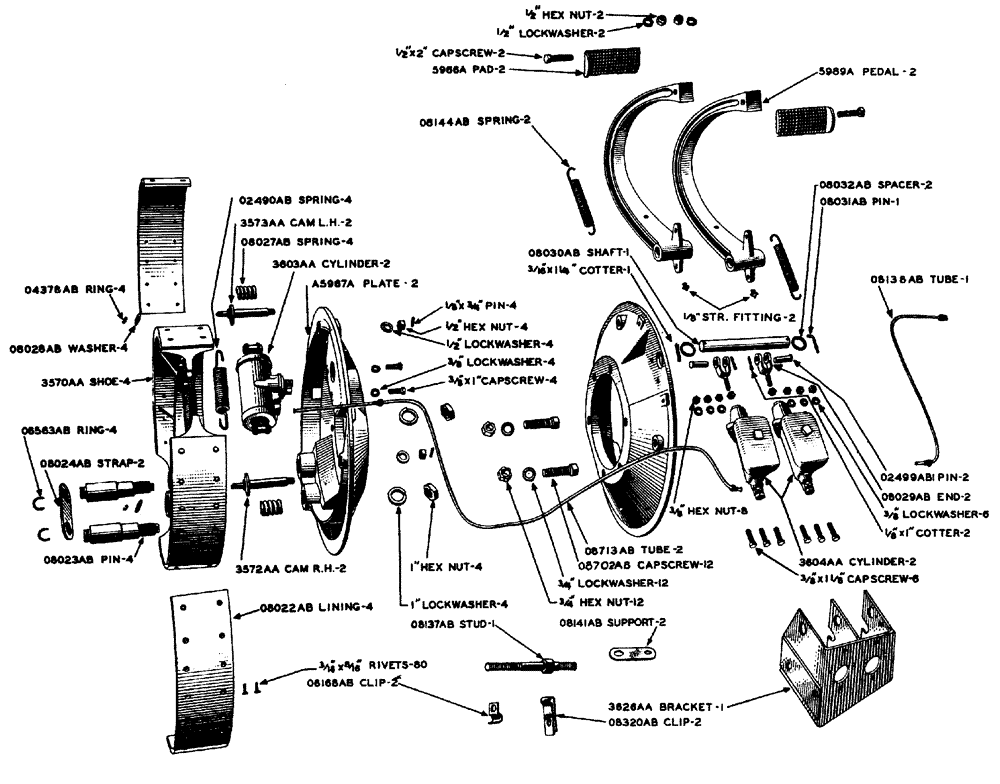

Запчасти Case IH LA-SERIES (059) - HYDRAULIC REAR WHEEL BRAKES TRACTOR NO. 5208165 TO 5418607 (07) - BRAKES

a5745a

A5745A

HOUSING rear axle, for hydraulic rear wheel brakes

2шт.

FITTING Lincoln, 1/8" x 45°

2шт.

PLUG pipe, 1/8"

2шт.

5966a

5966A

PAD pedal, brake

2шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2", with nut and lock washer

2шт.

a5967a

A5967A

PLATE backing, brake

2шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1"

4шт.

WASHER lock, standard, 3/8"

4шт.

5968a

5968A

SHOE brake (Use 3570AA)

1шт.

5989a

5989A

PEDAL brake

2шт.

SCREW cap, hex head, N.C. thread, 3/8" x 2-1/4"

2шт.

SCREW set, cup point, 3/8" x 2-1/4"

2шт.

FITTING straight, Lincoln No. 5000, 1/8"

2шт.

NUT hex, N.C. thread, 3/8"

2шт.

02490ab

O2490AB

SPRING brake shoe

4шт.

02499ab1

427-8136

CLEVIS PIN,1/2" x 1.360"

PIN end yoke, master cylinder

2шт.

PIN cotter, 1/8" x 1"

2шт.

04378ab

O4378AB

RING snap, cam pin, brake adjusting

4шт.

06134ab

O6134AB

BUSHING front, platform channel

2шт.

06135ab

O6135AB

BUSHING rear, platform channel

2шт.

06168ab

O6168AB

CLIP tube, brake fluid, Serial Range: (Fastens-platform)

2шт.

SCREW cap, hex head, N.F. thread, 5/16" x 3/4", with nut and lock washer

2шт.

06563ab

A31221

RING, SNAP

RING snap, anchor pin, brake

4шт.

08022ab

O8022AB

LINING for 5968A brake shoe, lining has rivet holes and is used in assembly 3570AA

4шт.

RIVET tubular, brass, No. 1681, 3/16" x 8/16"

80шт.

08023ab

O8023AB

PIN anchor, brake

4шт.

NUT light, hex, N.F. thread, 1"

4шт.

WASHER lock, standard, 1"

4шт.

08024ab

O8024AB

STRAP anchor pin

2шт.

08027ab

O8027AB

SPRING cam, adjustment, brake shoe

4шт.

08028ab

O8028AB

WASHER cam, adjustment, brake shoe

4шт.

08029ab

O8029AB

END yoke, master cylinder

2шт.

NUT light, hex, N.F. thread, 3/8"

2шт.

08030ab

O8030AB

SHAFT bearing, brake pedal

1шт.

PIN cotter, 3/16" x 1-1/4"

1шт.

08031ab

O8031AB

PIN lock, bearing shaft, brake pedal

1шт.

08032ab

O8032AB

SPACER brake pedal

2шт.

08137ab

O8137AB

STUD mounting

1шт.

NUT light, hex, N.F. thread, 3/4"

1шт.

WASHER lock, standard, 3/4"

2шт.

08138ab

O8138AB

TUBE R.H., hydraulic fluid

1шт.

NUT tube, flared, inverted, 1/4" tube size

2шт.

08141ab

O8141AB

CLIP outer, tube support, brake

2шт.

08144ab

O8144AB

SPRING return, pedal

2шт.

08320ab

A27337

CLIP

tube, brake fluid, fastens to transmission case rear cover

2шт.

08702ab

O8702AB

SCREW cap, backing plate, rear wheel brake (Prior to tractor No. 5323470)

12шт.

Tractor No. 5323470 and after, uses 12-3/4" x 3" hex. head cap screws, N.F. thread with nuts and lock washers, as now there are lugs on A5967A plate to prevent the heads of these cap screws from turning while being tightened.

1шт.

WIRE annealed, soft, No. 9 x 10-1/2" long

4шт.

NUT light, hex, N.F. thread, 3/4"

12шт.

WASHER lock, standard, 3/4"

12шт.

08713ab

O8713AB

TUBE L.H., hydraulic fluid

1шт.

NUT tube, flared, inverted, 1/4" tube size

2шт.

3570aa

3570AA

SHOE brake, with riveted lining (Consists of: 1 - 5968A, 1 - O8022AB and 20 - 3/16" x 1/2" brass tubular No. 1681 rivets)

1шт.

3572aa

3572AA

CAM R.H., brake adjustment

2шт.

NUT light, hex, N.F. thread, 1/2"

2шт.

WASHER plain, standard, 1/2"

2шт.

PIN groove, taper, full length, type 1, 1/8" x 3/4"

2шт.

3573aa

3573AA

CAM L.H., brake adjustment

2шт.

NUT light, hex, N.F. thread, 1/2"

2шт.

WASHER plain, standard, 1/2"

2шт.

PIN groove, taper, full length, type 1, 1/8" x 3/4"

2шт.

3603aa

A185108

CYLINDER

brake, wheel (Wagner Electric Co., No. FC1757)

2шт.

3604aa

3604AA

brake, master (Wagner Electric Co. No. FE1050)

2шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1-1/8" with nut and lock washer

6шт.

3626aa

3626AA

BRACKET mounting, pedal

1шт.

SCREW cap, hex head, N.F. thread, 3/4" x 3-3/4", with nut and lock washer

1шт.

a3677aa

A3677AA

SUPPORT draw bar

1шт.
