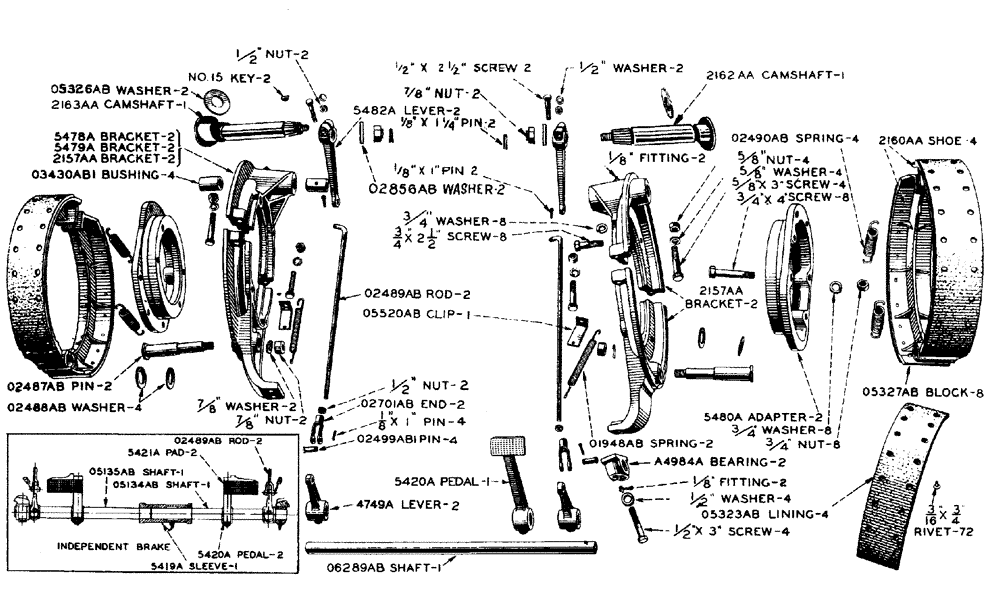

Запчасти Case IH LA-SERIES (058) - MECHANICAL REAR WHEEL BRAKES PRIOR TO TRACTOR NO. 5208165 (07) - BRAKES

2503½A

BOARD front, platform, regular and independent

1шт.

4749a

4749A

LEVER cross shaft, regular and independent

2шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2-1/2", with nut and lock washer, regular and independent

2шт.

4984a

4984A

BEARING cross shaft (Use A4984A)

1шт.

a4984a

A4984A

BEARING cross shaft, regular and independent

2шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8", regular and independent

2шт.

SCREW cap, hex head, N.C. thread, 1/2" x 3", with lock washer, regular and independent

4шт.

5419a

5419A

SLEEVE cross shaft, independent

1шт.

FITTING lubricating, 45°, Lincoln No. 5200, 1/8", independent

2шт.

5420a

5420A

PEDAL foot (Prior to tractor No. 4904771) (See 2789AA), regular

1шт.

5420a

5420A

PEDAL foot (Prior to tractor No. 4904771) (See 2789AA), independent

2шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2", with nut and lock washer, regular

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2", with nut and lock washer, independent

2шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2-1/2" with nut and lock washer, regular

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2-1/2" with nut and lock washer, independant

2шт.

5421a

5421A

PAD foot pedal (Prior to tractor No. 4904771) (See 5859A) regular

1шт.

5421a

5421A

PAD foot pedal (Prior to tractor No. 4904771) (See 5859A) independent

2шт.

5478a

5478A

BRACKET front, brake, rear wheel (See 2157AA) regular and independent

2шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8", regular and independent

2шт.

SCREW cap, hex head, N.F. thread, 5/8" x 3", with nut and lock washer, regular and independent

4шт.

SCREW cap, hex head, N.C. thread, 3/4" x 2-1/2", with nut and lock washer, regular and independent

4шт.

5479a

5479A

BRACKET rear, brake, rear wheel (See 2157AA), regular and independent

2шт.

SCREW cap, hex head, N.C. thread, 3/4" x 2-1/2", with lock washer, regular and independent

4шт.

5480a

5480A

ADAPTER bracket, brake, rear wheel, regular and independent

2шт.

SCREW cap, hex head, N.F. thread, 3/4" x 4", with nut and lock washer, regular and independent

8шт.

5481a

5481A

SHOE brake (Use 2160AA)

1шт.

5482a

5482A

LEVER camshaft, regular and independent

2шт.

5859a

5859A

PAD foot pedal (Tractor No. 4904771 and after) (See 5421A), regular

1шт.

5859a

5859A

PAD foot pedal (Tractor No. 4904771 and after) (See 5421A), independent

2шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/2", with nut and lock washer, regular and independent

2шт.

01198ab2

A26476

WASHER

shim, camshaft, regular and independent

4шт.

01948ab

O1948AB

SPRING return, brake pedal (Prior to tractor No. 4904771) (See O4921AB), regular

1шт.

01948ab

O1948AB

SPRING return, brake pedal (Prior to tractor No. 4904771) (See O4921AB), independent

2шт.

02487ab

O2487AB

PIN anchor, brake shoe, regular and independent

2шт.

NUT light, hex, N.F. thread, 7/8", with lock washer, regular and independent

2шт.

02488ab

O2488AB

WASHER anchor pin, brake shoe, regular and independent

4шт.

02489ab

O2489AB

ROD lever, brake, regular and independent

2шт.

PIN cotter, 1/8" x 1", regular and independent

2шт.

NUT light, hexagon, N.F. thread, 1/2", regular and independent

2шт.

02490ab

O2490AB

SPRING brake shoe, regular and independent

4шт.

02499ab1

427-8136

CLEVIS PIN,1/2" x 1.360"

PIN end, yoke, brake rod, regular and independent

4шт.

PIN cotter, 1/8" x 1", regular and independent

4шт.

02701ab

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

END yoke, brake rod, regular and independent

2шт.

02856ab

O2856AB

WASHER camshaft, brake, regular and independent

2шт.

03430ab1

O3430AB1

BUSHING bracket, regular and independent

4шт.

04921ab

A26841

VALVE SPRING

SPRING return, brake pedal (Tractor No. 4904771 and after) (See O1948AB), regular

1шт.

04921ab

A26841

VALVE SPRING

SPRING return, brake pedal (Tractor No. 4904771 and after) (See O1948AB), independent

2шт.

05134ab

O5134AB

SHAFT R.H., cross, brake (See O6289AB), independent

1шт.

KEY Woodruff No. 15, independent

2шт.

05135ab

O5135AB

SHAFT L.H., cross, brake (See O6289AB), independent

1шт.

KEY Woodruff No. 15, independent

2шт.

05323ab

O5323AB

LINING brake shoe (See 3408AA), regular and independent

4шт.

RIVET copper belt head, 3/16" x 3/4", regular and independent

72шт.

05326ab

O5326AB

WASHER camshaft, brake, regular and independent

2шт.

05327ab

O5327AB

BLOCK stop, brake lining, regular and independent

8шт.

RIVET countersunk head, 5/16" x 1", regular and independent

16шт.

05520ab

O5520AB

CLIP return spring, brake pedal, regular

1шт.

05520ab

O5520AB

CLIP return spring, brake pedal, independent

2шт.

06289ab

O6289AB

SHAFT cross, brake, rear wheel (See O5134AB - O5135AB), regular

1шт.

KEY Woodruff No. 15, regular

3шт.

2157aa

2157AA

BRACKET front and rear, brake, rear wheel, regular and independent

2шт.

2160aa

2160AA

SHOE brake, with lining, regular and independent

4шт.

2162aa

2162AA

CAMSHAFT R.H., brake, with washer, regular and independent

1шт.

NUT castle, light, N.F. thread, 7/8", regular and independent

1шт.

PIN cotter, 1/8" x 1-1/4", regular and independent

1шт.

2163aa

2163AA

CAMSHAFT L.H., brake, with washer, regular and independent

1шт.

NUTcastle, light, N.F. thread, 7/8", regular and independent

1шт.

PIN cotter, 1/8" x 1-1/4", regular and independent

1шт.

2789aa

2789AA

PEDAL brake (Tractor No. 4904771 and after) (See 5420A), regular

1шт.

2789aa

2789AA

PEDAL brake (Tractor No. 4904771 and after) (See 5420A), independent

2шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2-3/4", regular

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2-3/4", independent

2шт.

NUT light, hex, N.F. thread, 1/2", with nut and lock washer, regular

1шт.

NUT light, hex, N.F. thread, 1/2", with nut and lock washer, independent

2шт.

3408aa

3408AA

brake, set of (4) with rivets (Consists of: 4 - O5323AB linings and 72 - 3/16" x 3/4" copper belt head rivets), regular and independent

1шт.
