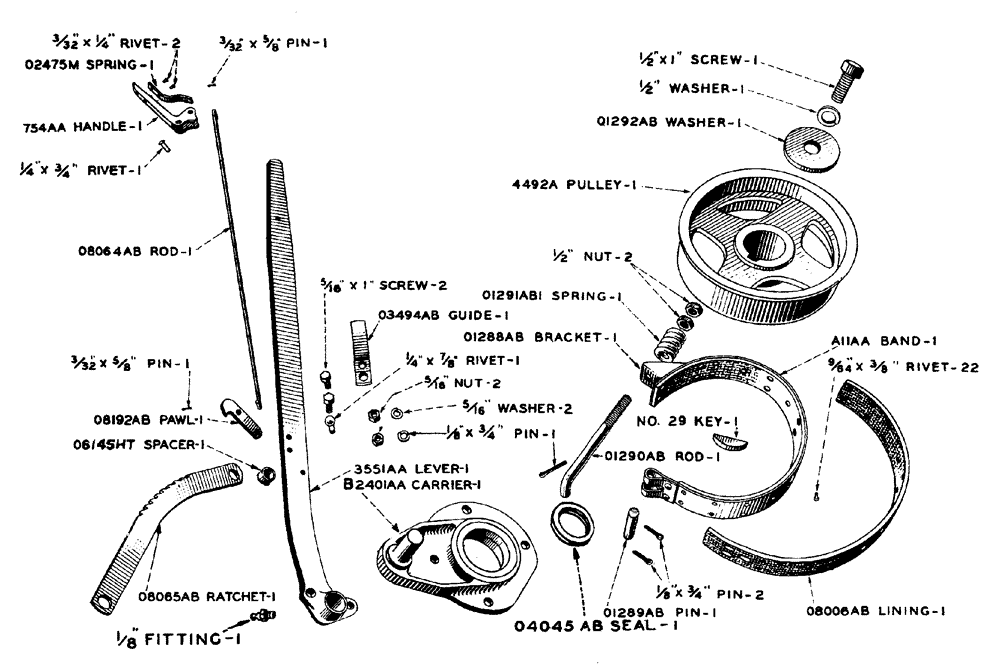

Запчасти Case IH LA-SERIES (048) - HAND BRAKE REGULAR ON TRACTOR NO. 5208165 TO 5418607, SPECIAL ON TRACTOR NO. 5418607 AND AFTER (07) - BRAKES

4492a

4492A

PULLEY brake, transmission

1шт.

KEY Woodruff No. 29

1шт.

5706a

5706A

CARRIER (Use B2401AA)

1шт.

a5706a

A5706A

CARRIER (Use B2401AA)

1шт.

b5706a

B5706A

CARRIER (Use B2401AA)

1шт.

01288ab

O1288AB

BRACKET band, brake

1шт.

RIVET wagon box head, 1/4" x 1/2"

3шт.

01289ab

O1289AB

PIN band, brake

1шт.

PIN cotter, 1/8" x 3/4"

2шт.

01290ab

O1290AB

ROD adjusting, band, brake

1шт.

PIN cotter, 1/8" x 3/4"

1шт.

NUT jam, hex, N.C. thread, 1/2"

2шт.

01291ab1

O1291AB1

SPRING rod, adjusting, band, brake

1шт.

01292ab

O1292AB

WASHER thrust, pulley, brake

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1"

1шт.

WASHER lock, standard, 1/2"

1шт.

03494ab

O3494AB

GUIDE lever, brake, hand

1шт.

SCREW cap, hex head, N.F. thread, 5/16" x 1"

2шт.

NUT light, hex, N.F. thread, 5/16"

2шт.

WASHER lock, standard, 5/16"

2шт.

04045ab

A27838

OIL SEAL,66.67mm ID x 92.2mm OD x 11.89mm Thk

oil, for B2401AA carrier

1шт.

08006ab

O8006AB

LINING band, brake, 18-7/8" long

1шт.

RIVET tubular, brass, No. 2561, 9/64" x 3/8"

22шт.

08064ab

O8064AB

ROD lever, brake, hand

1шт.

PIN cotter, 3/32" x 5/8"

2шт.

08065ab

O8065AB

RATCHET lever, brake, hand

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 2-1/2"

1шт.

08192ab

O8192AB

PAWL lever, brake, hand

1шт.

RIVET round head, 1/4" x 7/8"

1шт.

06145ht

O6145HT

SPACER ratchet, brake, hand

1шт.

02475m

O2475M

SPRING pawl, lever, hand brake

1шт.

RIVET flat head, 3/32" x 1/4"

2шт.

a11aa

A11AA

BAND brake, with lining

1шт.

754aa

754AA

HANDLE lever, brake, with spring

1шт.

RIVET round head, 1/4" x 3/4"

1шт.

b2401aa

B2401AA

CARRIER R.H. bearing, sliding gear shaft, with pin for hand brake lever

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

4шт.

WASHER lock, standard, 1/2"

4шт.

PIN cotter, 3/16" x 1-1/2"

1шт.

3551aa

3551AA

LEVER brake, hand (Consists of: lever with 1 - 754AA, 1 - O3494AB, 1 - O8064AB and 1 - O8192AB)

1шт.

FITTING straight, Lincoln No. 5000, 1/8"

1шт.
