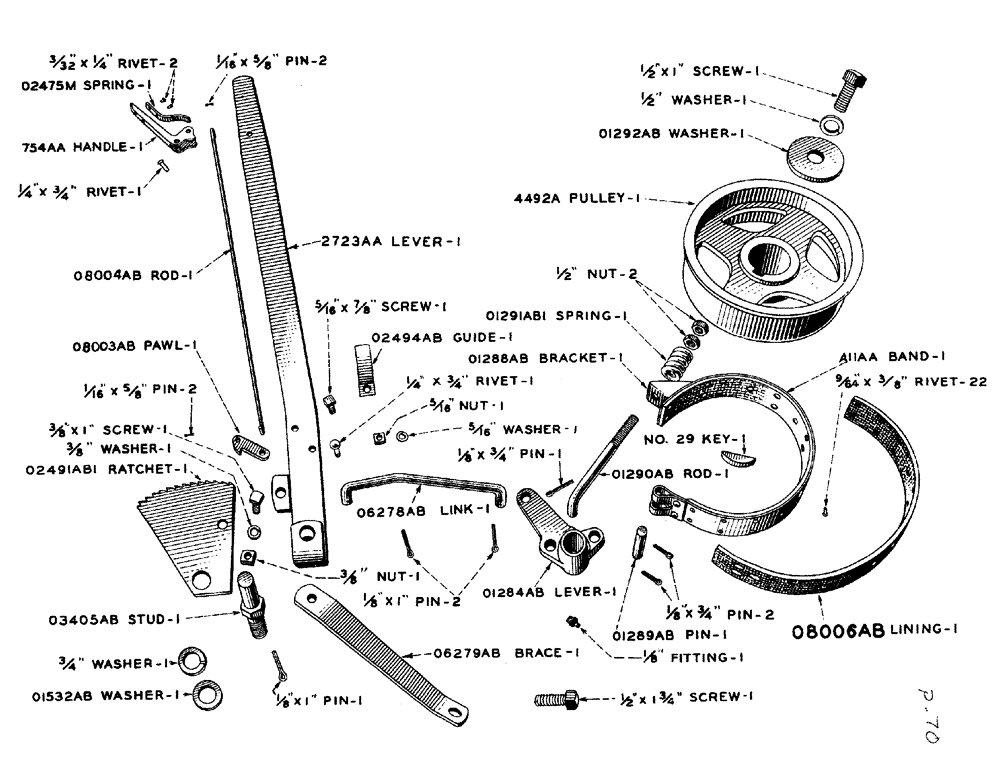

Запчасти Case IH LA-SERIES (047) - HAND BRAKE PRIOR TO TRACTOR NO. 5208165 (07) - BRAKES

4492a

4492A

PULLEY brake

1шт.

KEY Woodruff No. 29

1шт.

01284ab

O1284AB

LEVER brake

1шт.

FITTING straight, Lincoln No. 5000, 1/8"

1шт.

01288ab

O1288AB

BRACKET band, brake

1шт.

RIVET wagon box head, 1/4" x 1/2"

2шт.

01289ab

O1289AB

PIN band, brake

1шт.

PIN cotter, 1/8" x 3/4"

2шт.

01290ab

O1290AB

ROD adjusting, band, brake

1шт.

PIN cotter, 1/8" x 3/4"

1шт.

NUT jam, hex, N.C. thread, 1/2"

2шт.

01291ab1

O1291AB1

SPRING rod, adjusting, band, brake

1шт.

01292ab

O1292AB

WASHER thrust, pulley, brake

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1"

1шт.

WASHER lock, standard, 1/2"

1шт.

01532ab

O1532AB

WASHER stud, lever, brake

1шт.

02491ab1

O2491AB1

RATCHET lever, hand brake

1шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1"

1шт.

NUT light, hex, N.F. thread, 3/8"

1шт.

WASHER lock, standard, 3/8"

1шт.

02493ab

O2493AB

PAWL lever, hand brake, for 3/16" rod (Prior to tractor No. 5000001) (Use O8003AB)

1шт.

02494ab

O2494AB

GUIDE lever, hand brake

1шт.

SCREW cap, hex head, N.F. thread, 5/16" x 7/8"

1шт.

NUT light, hex, N.F. thread, 5/16"

1шт.

WASHER lock, standard, 5/16"

1шт.

02737ab

O2737AB

ROD lever, hand brake, 3/16" rod (Prior to tractor No. 5000001) (Use O8004AB)

1шт.

03405ab

O3405AB

STUD lever, hand brake

1шт.

PIN cotter, 1/8" x 1"

1шт.

06278ab

O6278AB

LINK lever, hand brake

1шт.

PIN cotter, 1/8" x 1"

2шт.

06279ab

O6279AB

BRACE ratchet, hand brake

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-3/4"

2шт.

08003ab

O8003AB

PAWL lever, hand brake, for 1/4" rod (Tractor No. 5000001 and after)

1шт.

RIVET round head, 1/4" x 3/4"

1шт.

08004ab

O8004AB

ROD lever, hand brake, 1/4" rod (Tractor No. 5000001 and after)

1шт.

08006ab

O8006AB

LINING brake, for A11AA brake band, 18-7/8" long

1шт.

RIVET tubular, brass, No. 2561, 9/64" x 3/8"

22шт.

02475m

O2475M

SPRING pawl, lever, hand brake

1шт.

RIVET flat head, 3/32" x 1/4"

2шт.

11aa

11AA

BAND brake, with 01287AB lining (Use A11AA)

1шт.

a11aa

A11AA

BAND brake, with 08006AB lining

1шт.

754aa

754AA

HANDLE lever, brake, with spring

1шт.

RIVET round head, 1/4" x 3/4"

1шт.

2723aa

2723AA

LEVER hand brake, with lug

1шт.
