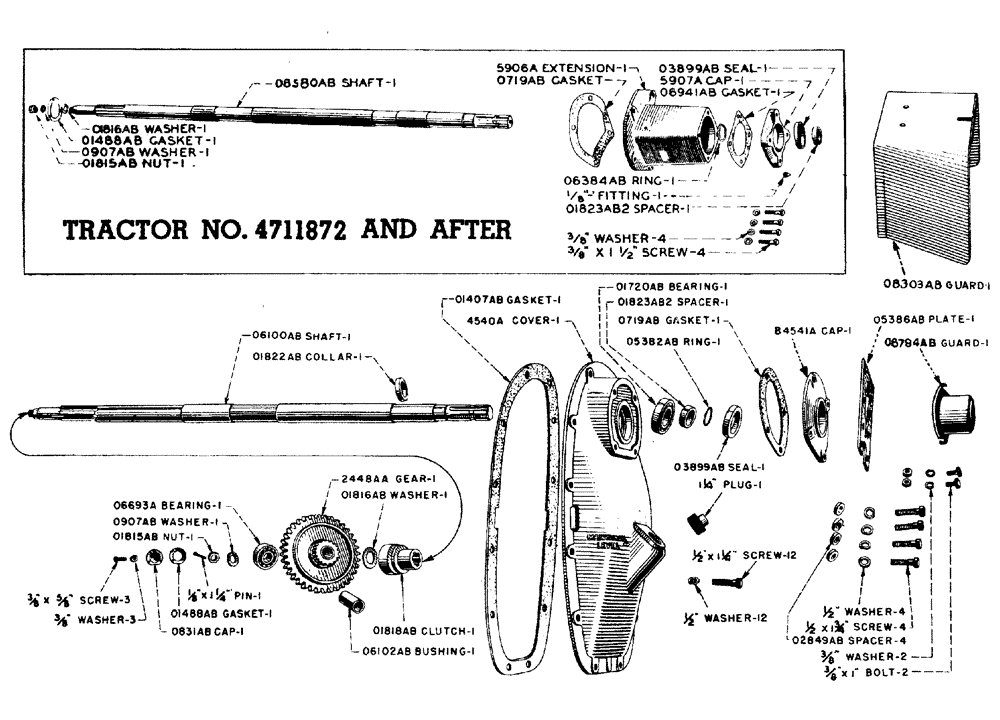

Запчасти Case IH LA-SERIES (082) - POWER TAKE-OFF (06) - POWER TRAIN

4540a

4540A

COVER rear, transmission case

1шт.

PLUG pipe, square head, 1-1/4"

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

12шт.

WASHER lock, standard, 1/2"

12шт.

a4541a

A4541A

CAP (Use B4541A)

1шт.

b4541a

B4541A

CAP cover, rear, shaft, power take off (Prior to tractor No. 4711872) (See 5906A and 5907A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-3/4"

4шт.

WASHER lock, standard, 1/2"

4шт.

5906a

5906A

EXTENSION bearing, rear, shaft, power take off (Tractor No. 4711872 and after) (See A4541A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/2"

4шт.

WASHER lock, standard, 1/2"

4шт.

5907a

5907A

CAP bearing, rear, shaft, power take off (Tractor No. 4711872 and after) (See A4541A)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

06693a

O6693A

BEARING front, power take off (New departure No. 1305)

1шт.

0719ab

O719AB

GASKET for A4541A, B4541A caps or 5906A extension

1шт.

0831ab

O831AB

CAP front, power take off

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 5/8"

3шт.

WASHER lock, standard, 3/8"

3шт.

0907ab

O907AB

WASHER shaft, power take off

1шт.

01407ab

1342766C1

GASKET

cover, rear, transmission case

1шт.

01488ab

A26538

GASKET

for 0831AB front cap

1шт.

01720ab

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING rear, shaft, power take off (New departure No. 1207)

1шт.

01815ab

A26597

NUT

front, shaft, power take off

1шт.

PIN cotter, 1/8" x 1-1/4"

1шт.

01816ab

O1816AB

WASHER front, shaft, power take off

1шт.

01818ab

O1818AB

CLUTCH gear, power take off

1шт.

01822ab

A26604

COLLAR

power take off

1шт.

01823ab2

A26606

SPACER

shaft, power take off

1шт.

02849ab

O2849AB

SPACER for 05386A mounting plate (Used with A4541A cap only) (Prior to tractor No. 4711872)

4шт.

03899ab

A26760

OIL SEAL

oil, shaft, power take off

1шт.

05382ab

O5382AB

RING snap, shaft, power take off (Prior to tractor No. 4711872) (See O6384AB)

1шт.

05386ab

O5386AB

PLATE mounting, guard, power take off

1шт.

The following commodities are used prior to tractor No. 4711872: 2 - BOLT3/8" x 1" carr., with hex nut, 2 - SCREW cap, hex head, N.F. thread, 3/8" x 3/4", 4 - SCREW cap, hex head, N.C. thread, 1/2" x 1-3/4", 2 - NUT light, hex, N.F. thread, 3/8", 2 - WASHER lock, standard, 3/8", 4 - WASHER lock, standard, 1/2" and 2 - WASHER lock, 26 shakeproof, No. 4020, type 40, 3/8"

1шт.

The following commodities are used after tractor No. 4711872: 2 - BOLT 3/8" x 1" carr., with hex nut, 4 - SCREW cap, hex head, N.C. thread, 3/8" x 1-1/2", 4 - WASHER lock, standard, 3/8", 2 - WASHER plain, standard, 3/8" and 2 - WASHER lock, shakeproof, No. 4020-26, type 40, 3/8"

1шт.

06100ab

O6100AB

SHAFT power take off, 1-3/8" x 47-13/32" long (Prior to tractor No. 4711872) (See O8580AB)

1шт.

PIN cotter, 1/8" x 1-1/4"

1шт.

06102ab

O6102AB

BUSHING gear, power take off

1шт.

06384ab

O6384AB

RING snap, shaft, power take off (Tractor No. 4711872 and after) (See O5382AB)

1шт.

06940ab

O6940AB

SHAFT power take off, 1-3/8" x 54-29/32" long (Use O8580AB)

1шт.

PIN cotter, 1/8" x 1-1/4"

1шт.

06941ab

O6941AB

GASKET bearing cap, rear, power take off (Tractor No. 4711872 and after)

1шт.

08303ab

A27335

GUARD

power take off

1шт.

08580ab

O8580AB

SHAFT power take off, 1-3/8" x 54-29/32" long (Tractor No. 4711872 and after) (See O6100AB)

1шт.

PIN cotter, 1/8" x 1-1/4"

1шт.

08794ab

O8794AB

GUARD tubular, end of power take off shaft

1шт.

SCREW cap, hex head, N.F. thread, 3/8" x 3/4"

2шт.

NUT light, hex, N.F. thread, 3/8"

2шт.

WASHER lock, standard, 3/8"

2шт.

2448aa

2448AA

GEAR power take off, with bushing

1шт.
