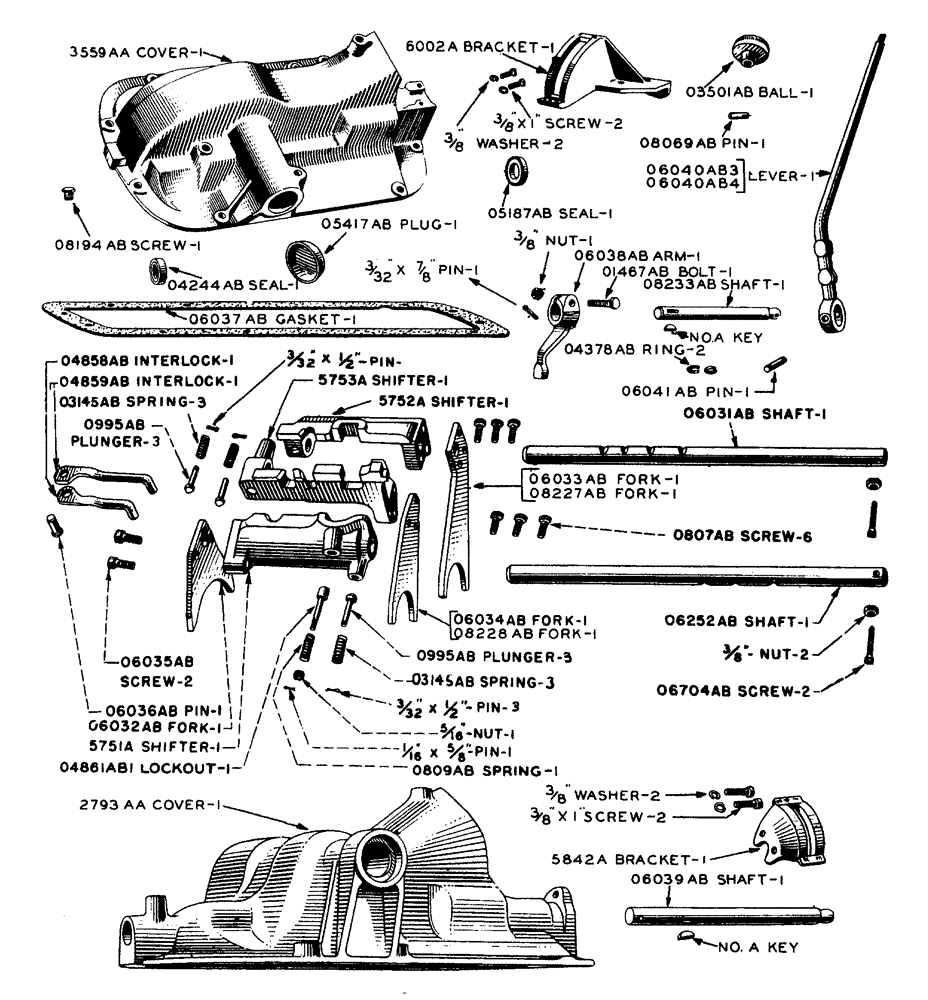

Запчасти Case IH LA-SERIES (079) - GEAR SHIFT PARTS (06) - POWER TRAIN

5710a

5710A

COVER top, transmission case (Use 2793AA)

1шт.

5712a

5712A

SHIFTER gear, first and third (Use 2721AA)

1шт.

5713a

5713A

SHIFTER gear, second and reverse (Use 2721AA)

1шт.

5714a

5714A

SHIFTER gear, fourth (Use 2721AA)

1шт.

5726a

5726A

BRACKET lever, hand, gear shift (Prior to tractor No. 4408128) (See 5842A and 6002A)

1шт.

5751a

5751A

SHIFTER gear, first and third (Tractor No. 4408128 and after) (See 2721AA)

1шт.

5752a

5752A

SHIFTER gear, second and reverse (Tractor No. 4408128 and after) (See 2721AA)

1шт.

5753a

5753A

SHIFTER gear, fourth (Tractor No. 4408128 and after) (See 2721AA)

1шт.

5842a

5842A

BRACKET lever, hand, gear shift (Tractor No. 4408128 to tractor No. 5208165) (See 5726A and 6002A)

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1"

2шт.

WASHER lock, standard, 3/8"

2шт.

5976a

5976A

COVER top, transmission case (Use 3559AA)

1шт.

6002a

6002A

BRACKET lever, hand, gear shift (Tractor No. 5208165 and after) (See 5726A and 5842A)

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1"

2шт.

WASHER lock, standard, 3/8"

2шт.

0807ab

O807AB

SCREW cap, gear shifter, second, reverse and fourth

6шт.

0809ab

O809AB

SPRING lockout, gear, second and reverse

1шт.

0995ab

O995AB

PLUNGER shifter, gear

3шт.

PIN cotter, 3/32" x 1/2"

3шт.

01467ab

O1467AB

BOLT arm, gear shifter

1шт.

NUT castle, light, N.F. thread, 3/8"

1шт.

PIN cotter, 3/32" x 7/8"

1шт.

03145ab

A33749

SPRING

shifter, gear

3шт.

03501ab

A26727

BALL

lever, hand

1шт.

04244ab

O4244AB

SEAL oil, shifter, power take off

1шт.

04378ab

O4378AB

RING snap, pin, hand lever

2шт.

04858ab

O4858AB

INTERLOCK short, gear shifter

1шт.

04859ab

O4859AB

INTERLOCK long, gear shifter

1шт.

04861ab1

O4861AB1

LOCKOUT gear, second and reverse

1шт.

NUT castle, light, N.F. thread, 5/16"

1шт.

PIN cotter, 1/16" x 5/8"

1шт.

05187ab

A26862

OIL SEAL

SEAL oil, rod, gear shift

1шт.

05417ab

O5417AB

PLUG end, steering column

1шт.

06030ab

O6030AB

SHAFT shifter, first and third (Prior to tractor No. 4408128) (See O6252AB)

1шт.

06031ab

O6031AB

SHAFT shifter, second, reverse and fourth

1шт.

06032ab

O6032AB

FORK gear, first and third

1шт.

06033ab

O6033AB

FORK gear, second and reverse (Prior to tractor No. 5208165) (See O8227AB)

1шт.

06034ab

O6034AB

FORK gear, fourth (Prior to tractor No. 5208165) (See O8228AB)

1шт.

06035ab

O6035AB

SCREW shifter, gear, first and third

2шт.

06036ab

O6036AB

PIN interlock, gear shifter

1шт.

06037ab

A26982

GASKET

cover, top, transmission case

1шт.

06038ab

O6038AB

ARM shifter, gear

1шт.

06039ab

O6039AB

SHAFT lever, hand, gear shift (Prior to tractor No. 5208165) (See O8233AB)

1шт.

KEY Woodruff No. A

1шт.

06040ab3

O6040AB3

LEVER hand, gear shift (Prior to tractor No. 5418607)

1шт.

06040ab4

O6040AB4

LEVER hand, gear shift (Tractor No. 5418607 and after)

1шт.

06041ab

O6041AB

PIN lever, hand, gear shift

1шт.

06252ab

O6252AB

SHAFT shifter, first and third (Tractor No. 4408128 and after) (See O6030AB)

1шт.

06704ab

O6704AB

SCREW set, shaft,, shifter

2шт.

NUT jam, hex, N.C. thread, 3/8"

2шт.

08069ab

O8069AB

PIN shoulder, lever, hand, power take off (Tractor No. 5208165 and after)

1шт.

PIN cotter, 3/32" x 1/2"

1шт.

WASHER plain, 3/8"

1шт.

08194ab

O8194AB

SCREW plunger hole, shifter, power take off (Tractor No. 5208165 and after)

1шт.

08227ab

O8227AB

FORK gear, second and reverse (Tractor No. 5208165 and after) (See O6033AB)

1шт.

08228ab

O8228AB

FORK gear, fourth (Tractor No. 5208165 and after) (See O6034AB)

1шт.

08233ab

O8233AB

SHAFT lever, hand, gear shift (Tractor No. 5208165 and after) (See O6039AB)

1шт.

KEY Woodruff No. A

1шт.

08689ab

O8689AB

WASHER 3 used on L.H. side of O6031AB and 2 used on R.H. side of O6252AB shifter shafts

5шт.

2721aa

2721AA

SET of 3, shifters, gear, with first and third shifter shaft (Consists of: 1 - 5751A, 1 - 5752A, 1 - 5753A, 1 - O6252AB)

1шт.

2793aa

2793AA

COVER top, case, transmission (Consists of: 1 - 5710A cover, 1 - O3430AB1 bushing, 1 - O4240AB seal, 1 - O5187AB seal, 1 - O5425AB1 bushing and 1-1/4" pipe plug) (Prior to tractor No. 5208165) (See 3559AA)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4", with lock washer

8шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-3/4", with lock washer

2шт.

SCREW set, cup point, N.C. thread, 3/8" x 1", with hex jam nut

1шт.

3559aa

3559AA

COVER top, case, transmission (Tractor No. 5208165 and after) (See 2793AA)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

6шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/2"

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 5"

1шт.

SCREW set, cup point, 3/8" x 1", with hex jam nut N.C.

1шт.

PLUG pipe, square head, 1/4"

1шт.
