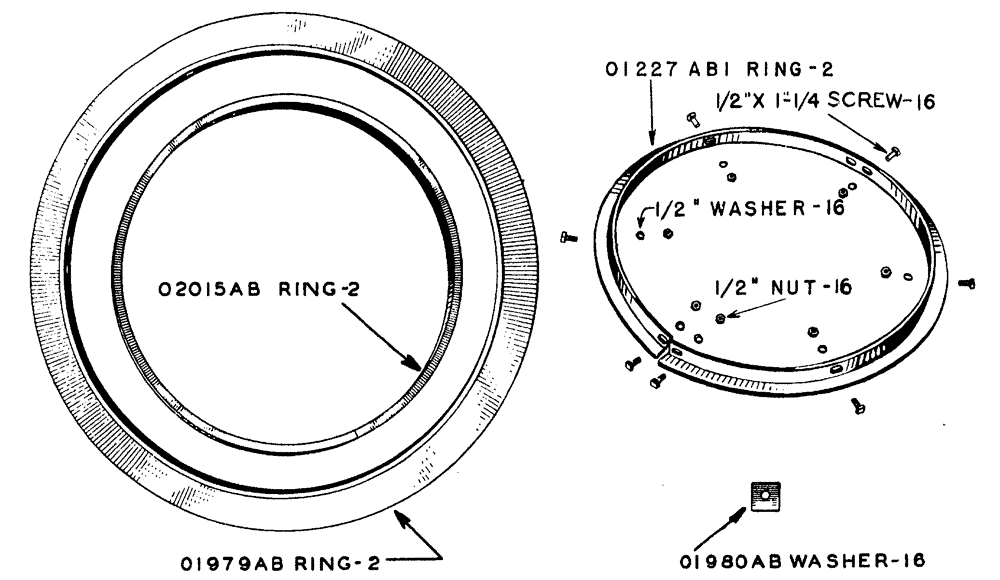

Запчасти Case IH LA-SERIES (075) - SKID RINGS - GUIDE ANGLES (06) - POWER TRAIN

01227ab1

O1227AB1

RING skid, front wheel (See 729AA)

2шт.

SCREW machine, hex head, N.C. thread, 1/2" x 1-1/4"

16шт.

NUT hex, N.C. thread, 1/2"

16шт.

WASHER lock, standard, 1/2"

16шт.

01979ab

O1979AB

RING skid, front wheel, 3" high (See 67AA)

2шт.

SCREW machine, hex head, N.C. thread, 1/2" x 1-1/2"

16шт.

NUT hex, N.C. thread, 1/2"

16шт.

WASHER lock, standard, 1/2"

16шт.

01980ab

O1980AB

WASHER spacing, skid ring, front wheel

16шт.

02013ab

O2013AB

ANGLE guide, 3" wide

2шт.

SCREW machine, hex head, N.C. thread, 1/2" x 1-1/4"

16шт.

NUT hex, N.C. thread, 1/2"

16шт.

WASHER lock, standard, 1/2"

16шт.

02015ab

O2015AB

RING guide, front wheel, 2" wide (See 103AA)

2шт.

BOLT No. 7 key head plow, with hexagon nut, 1/2" x 1-3/4"

16шт.

WASHER lock, standard, 1/2"

16шт.

67aa

67AA

RINGS skid, set of 2, front wheel, 3" high (Machinery item)

1шт.

103aa

103AA

RINGS guide, set of 2, front wheel, 2" wide (Machinery item)

1шт.

729aa

729AA

RINGS skid, set of 2, regular

1шт.

02156ab1

O2156AB1

STRAP tie, extension rim, front wheel

10шт.

SCREW machine, hex head, tie strap, extension rim, front wheel, N.C. thread, 5/8" x 1-1/2"

30шт.

NUT hex, tie strap, extension rim, front wheel, N.C. thread, 5/8"

30шт.

WASHER lock, standard, tie strap, extension rim, front wheel, 5/8"

30шт.

02833ab

O2833AB

RIM extension, front wheel

2шт.

524aa

524AA

RIMS extension, front wheel, with tie straps (set of 2)

1шт.

4704a

4704A

WEIGHT steel, front wheel (Use 251AA)

1шт.

02231ab

O2231AB

CLAMP weight, front wheel

10шт.

SCREW machine, hex head, weight clamp, front wheel, N.C. thread, 1/2" x 2-1/4"

20шт.

NUT hex, weight clamp, front wheel, N.C. thread, 1/2"

20шт.

WASHER lock, standard, weight clamp, front wheel, 1/2"

20шт.

251aa

251AA

WEIGHT steel, front wheel, set of 2 (Machinery item)

1шт.
