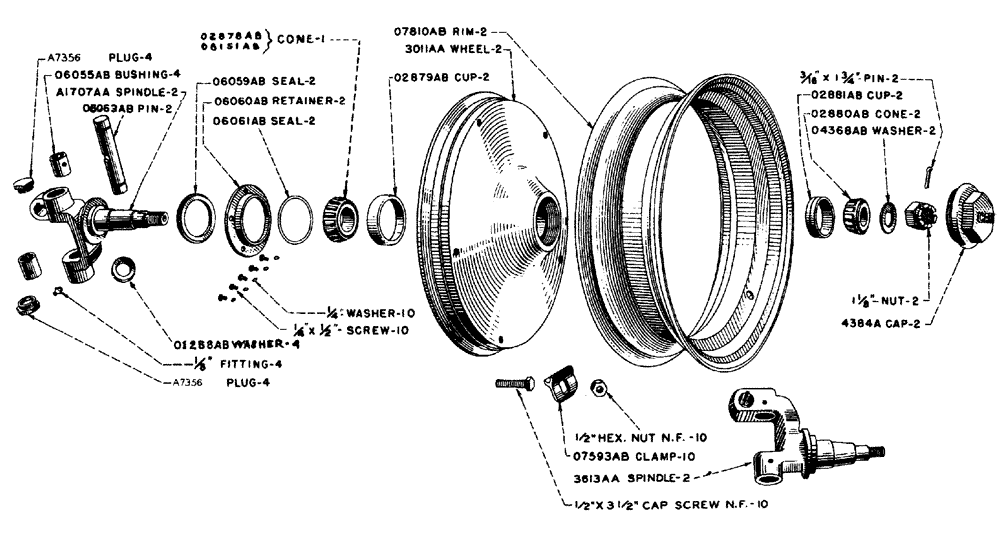

Запчасти Case IH LA-SERIES (073) - FRONT WHEEL AND SPINDLE (06) - POWER TRAIN

a7356

A7356

PLUG

spindle, steering

4шт.

4384a

4384A

X

CAP hub, front wheel

2шт.

01238ab

O1238AB

WASHER thrust, spindle, steering

4шт.

02878ab

O2878AB

CONE bearing, inner, front wheel, Timken No. 3776, for A1707AA spindle (Prior to tractor No. 5108013) (See 08151AB)

2шт.

02879ab

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP bearing, inner, front wheel, Timken No. 3720

2шт.

02880ab

7714728

BEARING

CONE bearing, outer, front wheel, Timken No. 2580

2шт.

02881ab

50213V

BEARING CUP

CUP bearing, outer, front wheel, Timken No. 2523

2шт.

04368ab

A26789

BEARING WASHER

WASHER spindle, steering

2шт.

06055ab

O6055AB

BUSHING spindle, steering

4шт.

06059ab

A26991

SEAL

wheel, front

2шт.

06060ab

A26992

RETAINER

seal, front wheel

2шт.

SCREW machine, round head, N.C. thread, 1/4" x 1/2"

10шт.

WASHER lock, standard, 1/4"

10шт.

06061ab

3047879R1

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

SEAL retainer, front wheel

2шт.

06063ab

A26995

LARGE PIN

PIN king, front axle

2шт.

08151ab

1-31-722-007

BEARING CONE

CONE bearing, inner, front wheel, Timken No. 3780, for 3613AA spindle (Tractor No. 5108013 and after) (See 02878AB)

2шт.

a1707aa

A1707AA

SPINDLE steering, with bushing (Prior to tractor No. 5108013) (See 3613AA)

2шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

4шт.

NUT slotted, thick, light, 1-1/8"

2шт.

PIN cotter, 3/16" x 1-3/4"

2шт.

3613aa

3613AA

SPINDLE steering, with bushing (Tractor No. 5108013 and after) (See A1707AA)

2шт.

Field replacement to convert from A1707AA steering spindle (1.77" diameter at inner bearing) to 3613AA steering spindle (2.00" diameter at inner bearing) (Consists of: 2 - 3613AA, 1 - 3614AA, 1 - 3615AA and 2 - 08151AB)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

4шт.

NUT slotted, thick, light, 1-1/8"

2шт.

PIN cotter, 3/16" x 1-3/4"

2шт.

b4948a

B4948A

WHEEL front, for 5.50 F-20 full drop center rim, for pneumatic farm tires (Use A1528AA)

1шт.

5825a

5825A

WHEEL front, for 5.50 F-18 full drop center rim, for pneumatic farm tires (Use 3011AA)

1шт.

5826a

A27228

CLAMP

rim, front wheel, for pneumatic farm tires (Use 07593AB)

1шт.

02879ab

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP bearing, inner, front wheel, Timken No. 3720, for pneumatic farm tires

2шт.

02881ab

50213V

BEARING CUP

CUP bearing, outer, front wheel, Timken No. 2523, for pneumatic farm tires

2шт.

07241ab

A27182

STUD

rim, front wheel, for B1065AA wheel, 5 per wheel, for pneumatic farm tires

10шт.

07242ab

O7242AB

NUT for 07241AB front wheel rim stud, B1065AA or 3007AA wheel using 1/2" x 3-1/4" machine bolt, for pneumatic farm tires

10шт.

07593ab

A27228

CLAMP

for O7680AB or O7810AB rim, 5 per wheel, for pneumatic farm tires

10шт.

07680ab

O7680AB

RIM 5.50 F-20 full drop center, without drive lugs, for 7.50-20 pneumatic farm tire (Used on B1065AA wheel)

2шт.

07810ab

A27257

RIM

5.50 F-18 full drop center, without drive lugs, for 7.50-18 pneumatic farm tire (Use on 3007AA wheels)

2шт.

b1065aa

B1065AA

WHEEL front, with 5.50 F-20 full drop center rim, with bearing cups, for 7.50-20 6 ply tire, for pneumatic farm tires (Consists of: 5 - O7242AB, 5 - O7593AB, 1 - O7680AB and 1 - A1528AA) (See A1528AA)

2шт.

a1528aa

A1528AA

WHEEL front, with bearing cups, less rim, for 7.50-20 pneumatic farm tire (Consists of: 1 - B4948A, 1 - 02879AB, 1 - O2881AB, 5 - O7241AB and 1 - 1/8" lubricating fitting No. 5000) (See B1065AA)

2шт.

3007aa

3007AA

WHEEL front, with 5.50 F-18 full drop center rim, with bearing cups, for 7.50-18 6 ply pneumatic farm tire (Consists of: 5 - 07593AB, 1 - 07810AB, 1 - 3011AA, 5 - 1/2" x 3-1/2" hex head capscrews, N.F.thrd. and 5-1/2" heavy sem-finish hex nuts, N.F.thrd)

2шт.

3011aa

3011AA

WHEEL front, with bearing cups, less rim, for 7.50-18 pneumatic 6-ply farm tire (Consists of: 1 - 5825A, 1 - O2879AB and 1 - O2880AB) (See 3007AA)

2шт.

SCREW cap, hex head, front wheel, N.F. thread, 1/2" x 3-1/2", for pneumatic farm tires

10шт.

NUT heavy semi-finished, hex, front wheel, N.F. thread, 1/2", for pneumatic farm tires

10шт.
