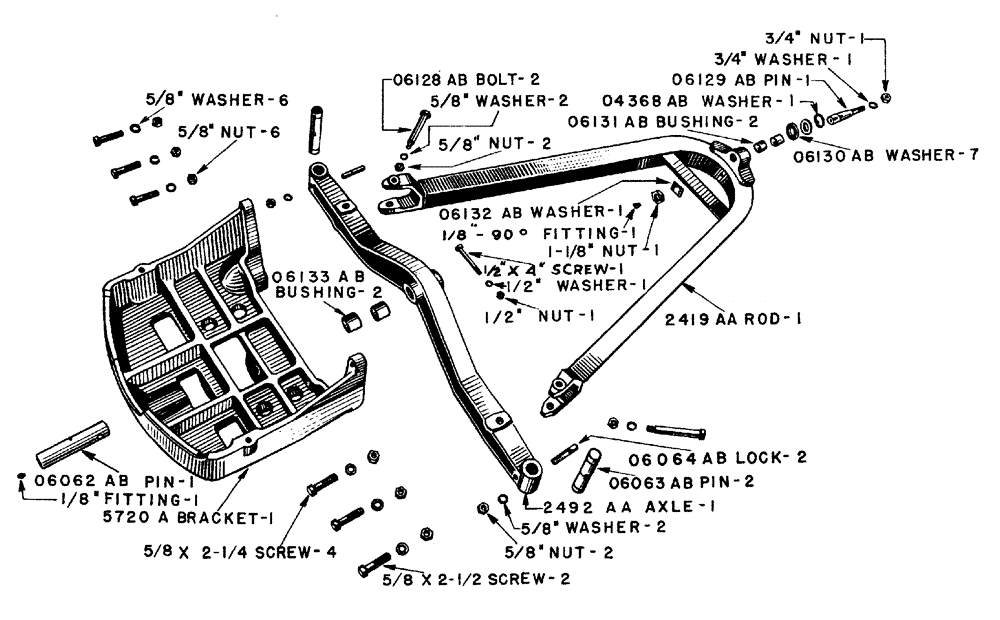

Запчасти Case IH LA-SERIES (072) - FRONT AXLE AND RADIUS ROD (06) - POWER TRAIN

5720a

5720A

BRACKET front axle and radiator

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 4"

1шт.

NUT light, hex, N.F. thread, 1/2"

1шт.

WASHER lock, standard, 1/2"

1шт.

SCREW cap, hex head, N.F. thread, 5/8" x 2-1/4"

2шт.

SCREW cap, hex head, N.F. thread, 5/8" x 2-1/2"

4шт.

NUT light, hex, N.F. thread, 5/8"

6шт.

WASHER lock, standard, 5/8"

6шт.

03316ab

O3316AB

BOLT pivot pin, front axle (Use 1/2" x 4" hex head cap screws N.F. thread as listed under 5720A)

1шт.

04368ab

A26789

BEARING WASHER

WASHER pivot pin, radius rod

1шт.

06062ab

A26994

PIN

pivot, front axle

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

06063ab

A26995

LARGE PIN

PIN king, front axle

2шт.

06064ab

O6064AB

LOCK king pin, front axle

2шт.

NUT light, hex, N.F. thread, 5/8"

2шт.

WASHER lock, standard, 5/8"

2шт.

06128ab

O6128AB

BOLT yoke, radius rod

2шт.

NUT light, hex, N.F. thread, 5/8"

2шт.

WASHER lock, standard, 5/8"

2шт.

06129ab

O6129AB

PIN pivot, radius rod

1шт.

FITTING 90°, lubricating, Lincoln No. 5400, 1/8"

1шт.

NUT jam, hex, N.F. thread, 1-1/8"

1шт.

NUT hex, N.F. thread, 3/4"

1шт.

WASHER lock, standard, 3/4"

1шт.

06130ab

O6130AB

WASHER pivot pin, radius rod

7шт.

06131ab

A31172

BUSHING

pivot pin, radius rod

2шт.

06132ab

O6132AB

WASHER lock, pivot pin, radius rod

1шт.

06133ab

O6133AB

BUSHING pivot pin, front axle

2шт.

2419aa

2419AA

ROD radius, with yokes and pivot pin bearing

1шт.

2492aa

2492AA

AXLE front, with bushings

1шт.
