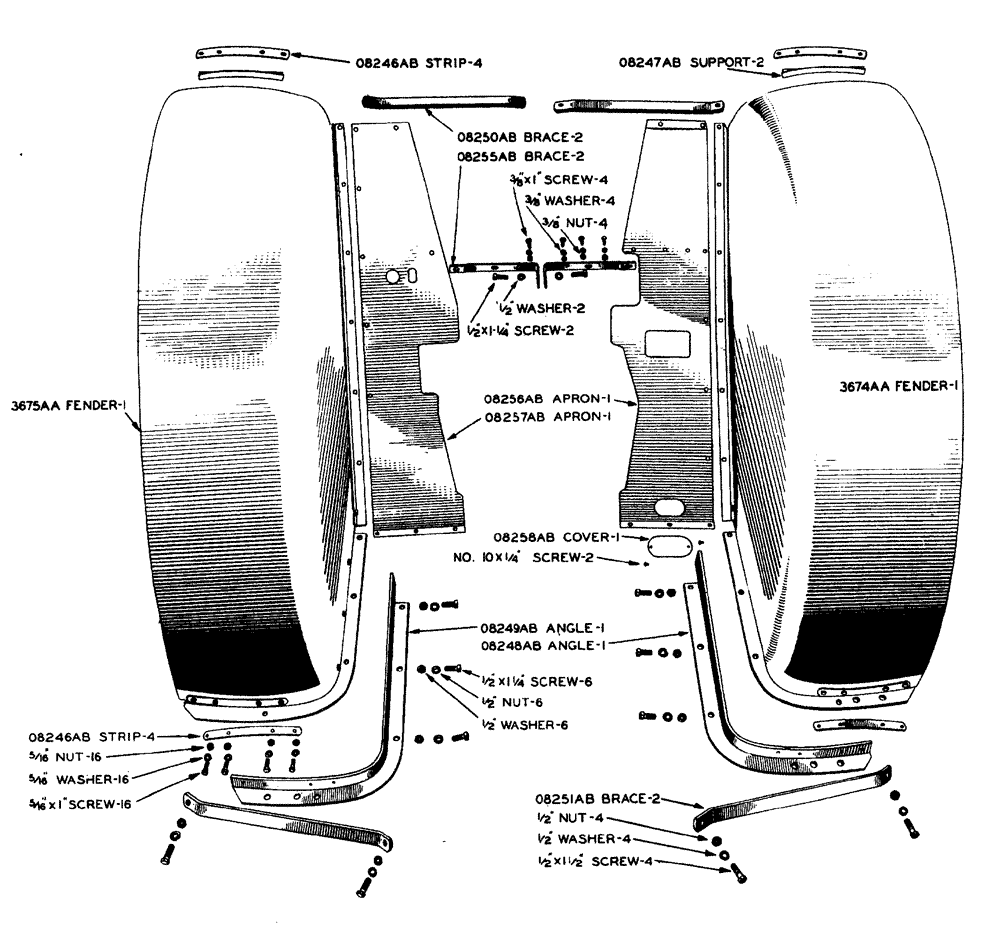

Запчасти Case IH LA-SERIES (071) - REAR WHEEL FENDERS TRACTOR NO. 5208165 AND AFTER (06) - POWER TRAIN

08246ab

O8246AB

STRIP reinforcement, fender

4шт.

SCREW machine, truss head, N.C. thread, 5/16" - 18 x 3/4"

8шт.

SCREW cap, hex head, N.F. thread, 5/16" x 1"

16шт.

NUT light, hex, N.F. thread, 5/16"

16шт.

WASHER lock, standard, 5/16"

16шт.

08247ab

O8247AB

SUPPORT fender, front

2шт.

08248ab

O8248AB

ANGLE support, R.H. fender, rear

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/4"

3шт.

NUT light, hex, N.F. thread, 1/2"

3шт.

WASHER lock, standard, 1/2"

3шт.

08249ab

O8249AB

ANGLE support, L.H. fender, rear

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/4"

3шт.

NUT light, hex, N.F. thread, 1/2"

3шт.

WASHER lock, standard, 1/2"

3шт.

08250ab

O8250AB

BRACE fender, front

2шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

4шт.

NUT light, hex, N.F. thread, 1/2"

4шт.

WASHER lock, standard, 1/2"

4шт.

08251ab

O8251AB

BRACE fender, rear

2шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/2"

4шт.

NUT light, hex, N.F. thread, 1/2"

4шт.

WASHER lock, standard, 1/2"

4шт.

08255ab

O8255AB

BRACE apron, fender

2шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

2шт.

WASHER lock, standard, 1/2"

2шт.

08256ab

O8256AB

APRON fender, R.H., 48" (Prior to tractor No. 5418607) (See O8776AB)

1шт.

BOLT 5/16" x 3/4" carr. with hex nut

3шт.

BOLT 5/16" x 1" carr. with hex nut

3шт.

WASHER lock, standard, 5/16"

8шт.

WASHER plain, 5/16"

1шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1"

2шт.

NUT light, hex, N.F. thread, 3/8"

2шт.

WASHER lock, standard, 3/8"

2шт.

WASHER plain, 3/8"

3шт.

08257ab

O8257AB

APRON fender, L.H., 48"

1шт.

BOLT 5/16" x 3/4" carr. with hex nut

3шт.

BOLT 5/16" x 1" carr. with hex nut

3шт.

WASHER lock, standard, 5/16"

8шт.

WASHER plain, 5/16"

1шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1"

1шт.

NUT light, hex, N.F. thread, 3/8"

2шт.

WASHER lock, standard, 3/8"

3шт.

WASHER plain, 3/8"

3шт.

08258ab

O8258AB

COVER apron, fender (Prior to tractor No. 5418607)

1шт.

SCREW round head, self-tapping, sheet metal type Z cadium plated, Parker Kalon No. 10 x 1/4"

2шт.

08776ab

O8776AB

APRON fender, R.H.. 48" (Tractor No. 5418607 and after) (See O8256AB)

1шт.

BOLT 5/16" x 3/4" carr, no nut

4шт.

BOLT 5/16" x 1" carr., no nut

1шт.

NUT hex, N.C. thread, 5/16"

5шт.

WASHER lock, standard, 5/16"

5шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1"

1шт.

NUT light, hex, N.F. thread, 3/8"

1шт.

WASHER lock, standard, 3/8"

1шт.

3674aa

3674AA

FENDER R.H. (Includes: 2 - O8246AB, 1 - O8247AB and 1 - O8248AB)

1шт.

3675aa

3675AA

FENDER L.H. (Includes: 2 - O8246AB, 1 - O8247AB and 1 - 08249AB)

1шт.
