Запчасти Case IH LA-SERIES (069) - SCRAPER FOR REAR WHEEL PRIOR TO TRACTOR NO. 5208165 (06) - POWER TRAIN

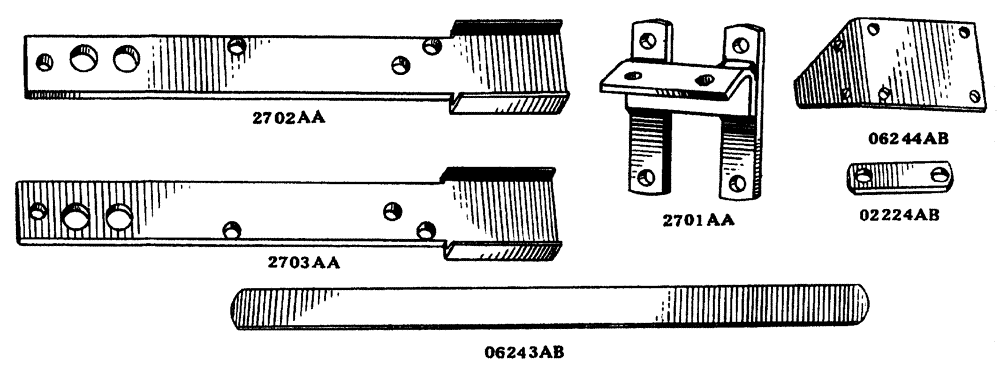

02224ab

O2224AB

STRAP scraper, rear wheel

4шт.

06243ab

O6243AB

SCRAPER rear wheel (See 2499AA)

2шт.

06244ab

O6244AB

STIFFENER scraper, rear wheel

2шт.

2499aa

2499AA

SCRAPER attachment, rear wheel (Machinery item)

1шт.

2701aa

2701AA

CLAMP with bracket

2шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2"

8шт.

SCREW cap, hex head, N.F. thread, 1/2" x 3-1/2"

8шт.

NUT light, hex, N.F. thread, 1/2"

16шт.

WASHER lock, standard, 1/2"

16шт.

02224ab

O2224AB

STRAP scraper, extension rim, rear wheel

4шт.

06243ab

O6243AB

SCRAPER extension rim, rear wheel (See 2446AA)

2шт.

06244ab

O6244AB

STIFFENER scraper, extension rim, rear wheel

2шт.

2446aa

2446AA

SCRAPER attachment, extension rim, rear wheel (Machinery item)

1шт.

2701aa

2701AA

CLAMP scraper, extension rim, rear wheel, with bracket

2шт.

SCREW cap, hex head, scraper clamp, extension rim, rear wheel, N.F. thread, 1/2" x 2"

8шт.

SCREW, cap, hex head, scraper clamp, extension rim, rear wheel, N.F. thread, 1/2" x 3-1/2"

8шт.

NUT light, hex, scraper clamp, extension rim, rear wheel, N.F. thread, 1/2"

16шт.

WASHER lock, standard, scraper clamp, extension rim, rear wheel, 1/2"

16шт.

2702aa

2702AA

BRACKET scraper, with support, R.H., extension rim, rear wheel

1шт.

SCREW cap, hex head, scraper bracket, extension rim, rear wheel, N.F. thread, 3/4" x 2"

2шт.

NUT light, hex, scraper bracket, extension rim, rear wheel, N.F. thread, 3/4"

2шт.

WASHER lock, standard, scraper bracket, extension rim, rear wheel, 3/4"

2шт.

2703aa

2703AA

BRACKET scraper, with support, L.H., extension rim, rear wheel

1шт.

SCREW cap, hex head, scraper bracket, extension rim, rear wheel, N.F. thread, 3/4" x 2"

2шт.

NUT light, hex, scraper bracket, extension rim, rear wheel, N.F. thread, 3/4"

2шт.

WASHER lock, standard, scraper bracket, extension rim, rear wheel, 3/4"

2шт.

02224ab

O2224AB

STRAP scraper, rear wheel (Tractor No. 5208165 and after)

4шт.

06243ab

O6243AB

SCRAPER rear wheel (Tractor No. 5208165 and after) (See 3791AA)

2шт.

08477ab

O8477AB

ANGLE scraper, rear wheel (Tractor No. 5208165 and after)

1шт.

SCREW cap, hex head, scraper angle, rear wheel, N.F. thread, 1/2" x 1-1/2" (Tractor No. 5208165 and after)

4шт.

NUT light, hex, scraper angle, rear wheel, N.F. thread, 1/2" (Tractor No. 5208165 and after)

4шт.

WASHER lock, standard, scraper angle, rear wheel, 1/2" (Tracror No. 5208165 and after)

4шт.

08478ab

O8478AB

BRACE scraper angle, rear wheel (Tractor No. 5208165 and after)

2шт.

SCREW cap, hex head, brace, scraper angle, rear wheel, N.F. thread, 1/2" x 1-1/2" (Tractor No. 5208165 and after)

8шт.

NUT light, hex, brace, scraper angle, rear wheel, N.F. thread, 1/2" (Tractor No. 5208165 and after)

8шт.

WASHER lock, standard, brace, scraper angle, rear wheel, 1/2" (Tractor No. 5208165 and after)

8шт.

08479ab

O8479AB

BRACKET scraper, rear wheel (Tractor No. 5208165 and after)

2шт.

SCREW cap, hex head, scraper bracket, rear wheel, N.F. thread, 1/2" x 1-1/2" (Tractor No. 5208165 and after)

4шт.

SCREW cap, hex head, scraper bracket, rear wheel, N.F. thread, 1/2" x 1-3/4" (Tractor No. 5208165 and after)

8шт.

NUT light, hex, scraper bracket, rear wheel, N.F. thread, 1/2" (Tractor No. 5208165 and after)

12шт.

WASHER lock, standard, scraper bracket, rear wheel, 1/2" (Tractor No. 5208165 and after)

12шт.

3791aa

3791AA

SCRAPER attachment, rear wheel (Tractor No. 5208165 and after) (Machinery item)

1шт.

02224ab

O2224AB

STRAP scraper, extension rim, rear wheel (Tractor No. 5208165 and after)

8шт.

06243ab

O6243AB

SCRAPER extension rim, rear wheel (Tractor No. 5208165 and after) (See 3792AA)

4шт.

08478ab

O8478AB

BRACE scraper angle, extension rim, rear wheel (Tractor No. 5208165 and after)

2шт.

SCREW cap, hex head, brace, scraper angle, extension rim, rear wheel, N.F. thread, 1/2" x 1-1/2" (Tractor No. 5208165 and after)

8шт.

NUT light, hex, brace, scraper angle, extension rim, rear wheel, N.F. thread, 1/2" (Tractor No. 5208165 and after)

8шт.

WASHER lock, standard, brace, scraper angle, extension rim, rear wheel, 1/2" (Tractor No. 5208165 and after)

8шт.

08479ab

O8479AB

BRACKET scraper, extension rim, rear wheel (Tractor No. 5208165 and after)

4шт.

SCREW cap, hex head, scraper bracket, extension rim, rear wheel, N.F. thread, 1/2" x 1-1/2" (Tractor No. 5208165 and after)

8шт.

SCREW cap, hex head, scraper bracket, extension rim, rear wheel, N.F. thread, 1/2" x 1-3/4" (Tractor No. 5208165 and after)

16шт.

NUT light, hex, scraper bracket, extension rim, rear wheel, N.F. thread, 1/2" (Tractor No. 5208165 and after)

24шт.

WASHER lock, standard, scraper bracket, extension rim, rear wheel, 1/2" (Tractor No. 5208165 and after)

24шт.

08480ab

O8480AB

ANGLE scraper, extension rim, rear wheel (Tractor No. 5208165 and after)

1шт.

SCREW cap, hex head, angle scraper, extension rim, rear wheel, N.F. thread, 1/2" x 1-1/2" (Tractor No. 5208165 and after)

4шт.

NUT light, hex, angle scraper, extension rim, rear wheel, N.F. thread, 1/2" (Tractor No. 5208165 and after)

4шт.

WASHER lock, standard, scraper angle, extension rim, rear wheel, 1/2" (Tractor No. 5208165 and after)

4шт.

3792aa

3792AA

SCRAPER attachment, extension rim, rear wheel (Tractor No. 5208165 and after) (Machinery item)

1шт.
