(068) - GROUTERS FOR REAR WHEELS

Запчасти Case IH LA-SERIES (068) - GROUTERS FOR REAR WHEELS (06) - POWER TRAIN

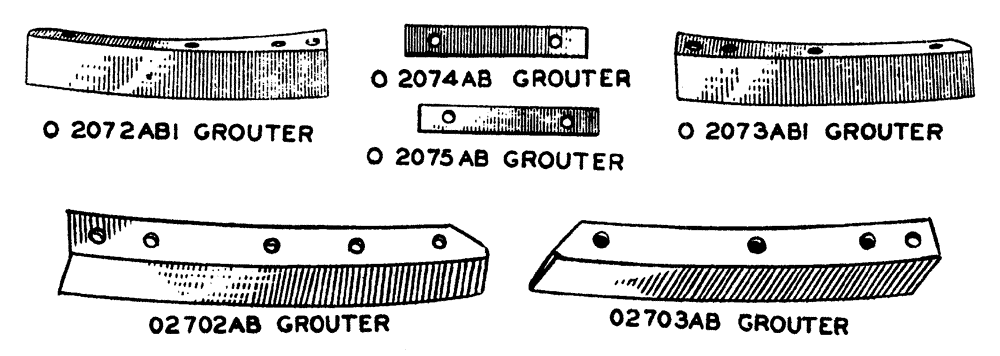

Схема запчастей Case IH LA-SERIES - (068) - GROUTERS FOR REAR WHEELS (06) - POWER TRAIN
02074ab
02072ab1
02702ab
02075ab
02073ab1
02703ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

02072ab1

O2072AB1

GROUTER angle iron, R.H., 3-1/2" x 2-1/2" x 3/8" x 21-1/2" (See A137AA)

14шт.

BOLT machine, with hex nut, 3/4" x 1-1/2"

28шт.

WASHER lock, standard, 3/4"

28шт.

02073ab1

O2073AB1

GROUTER angle iron, L.H., 3-1/2" x 2-1/2" x 3/8" x 21-1/2" (See A137AA)

14шт.

BOLT machine, with hex nut, 3/4" x 1-1/2"

28шт.

WASHER lock, standard, 3/4"

28шт.

02074ab

O2074AB

GROUTER road, R.H., 2" x 1" x 12-13/16" (See 138AA)

28шт.

BOLT No. 7 key head plow, with hex nut, 3/4" x 2-1/4"

56шт.

WASHER lock, standard, 3/4"

56шт.

02075ab

O2075AB

GROUTER road, L.H., 2" x 1" x 12-13/16" (See 138AA)

28шт.

BOLT No. 7 key head plow, with hex nut, 3/4" x 2-1/2"

56шт.

WASHER lock, standard, 3/4"

56шт.

02702ab

O2702AB

GROUTER Pennsylvania angle iron, R.H., 2-1/2" x 2" x 3/8" x 21-1/2" (See 414AA)

14шт.

BOLT machine, with hex nut, 3/4" x 1-1/2"

28шт.

WASHER lock, standard, 3/4"

28шт.

02703ab

O2703AB

GROUTER Pennsylvania angle iron, L.H., 2-1/2" x 2" x 3/8" x 21-1/2" (See 414AA)

14шт.

BOLT machine, with hex nut, 3/4" x 1-1/2"

28шт.

WASHER lock, standard, 3/4"

28шт.

a137aa

A137AA

GROUTERS set of 28, angle iron, 3-1/2" (Consists of: 14 - O2072AB1 and 14 - O2073AB1 grouters, with bolts, nuts and washers)

1шт.

138aa

138AA

GROUTERS set of 56 road (Consists of: 28 - O2074AB and 28 - O2075AB grouters, with bolts, nuts and washers)

1шт.

414aa

414AA

GROUTERS set of 28, Pennsylvania angle iron (Consists of: 14 - O2702AB and 14 - O2703AB grouters, with bolts, nuts and washers)

1шт.

02239ab

O2239AB

BAND road, angle iron, rear wheel (See 259AA)

2шт.

02240ab

O2240AB

SUPPORT road band, rear wheel

14шт.

BOLT machine, road band, rear wheel, with hex nut, 5/8" x 1-3/4"

28шт.

BOLT machine, road band, rear wheel, with hex nut, 3/4" x 2"

14шт.

WASHER lock, standard, road band, rear wheel, 5/8"

28шт.

WASHER lock, standard, road band, rear wheel, 3/4"

14шт.

259aa

259AA

BANDS road, angle iron, rear wheel, set of 2 (Consists of: 2 - O2239AB, 14 - O2240AB with bolts, nuts and washers) (Machinery item)

1шт.
