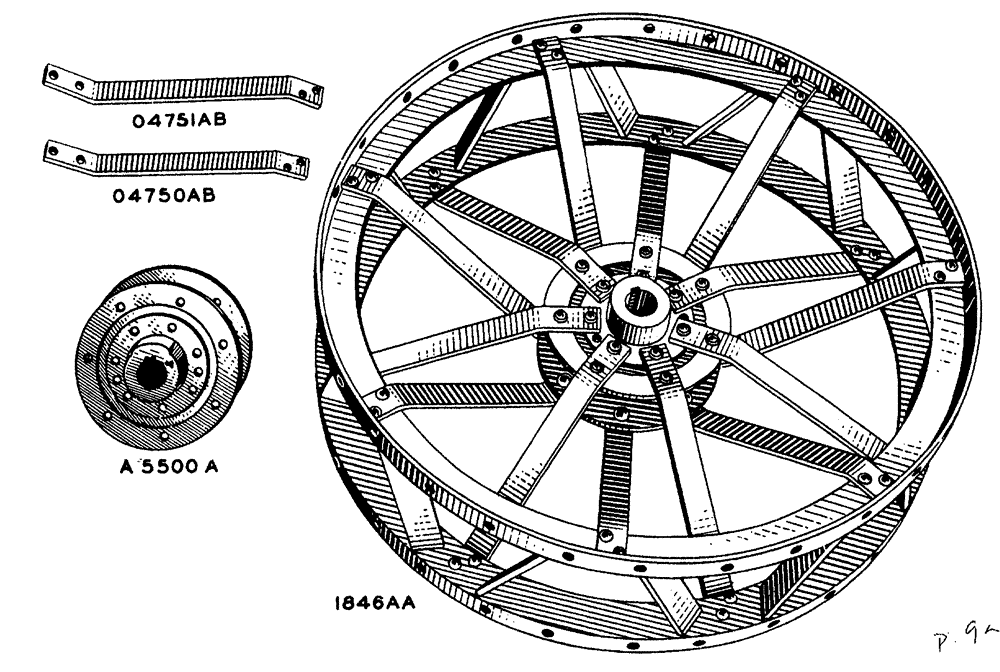

Запчасти Case IH LA-SERIES (066) - OPEN TYPE REAR WHEEL (06) - POWER TRAIN

a4495a

A4495A

HUB wheel, rear (Use A5500A)

1шт.

a5500a

A5500A

HUB wheel, rear

2шт.

04743ab

O4743AB

BRACE wheel, rear

28шт.

04748ab

O4748AB

RIM inner, wheel, rear

2шт.

04749ab

O4749AB

RIM outer, wheel, rear

2шт.

04750ab

O4750AB

SPOKE inner, wheel, rear

14шт.

RIVET round head, 1/2" x 1-3/4"

28шт.

RIVET round head, 5/8" x 2-1/4"

14шт.

RIVET round head, 5/8" x 2-1/2"

14шт.

04751ab

O4751AB

SPOKE outer, wheel, rear

2шт.

RIVET round head, 1/2" x 1-3/4"

28шт.

RIVET round head, 5/8" x 2-1/4"

14шт.

RIVET round head, 5/8" x 2-1/2"

14шт.

1846aa

1846AA

WHEEL R.H., rear

1шт.

1847aa

1847AA

WHEEL L.H., rear

1шт.

a9319

A9319

STRAP tie, 6" extension rim (Can use O2012AB)

14шт.

01957ab

O1957AB

HUB rim, extension

2шт.

01958ab

O1958AB

SPOKE rim, extension

14шт.

RIVET round head, 5/8" x 1-1/4"

28шт.

RIVET round head, 5/8" x 1-3/4"

28шт.

01959ab

O1959AB

STRAP tie, extension rim

14шт.

BOLT 3/4" x 2" No. 1 key head old standard plow (hex nut)

14шт.

BOLT machine, 3/4" x 1-1/2", with hex nut

42шт.

BOLT machine, 3/4" x 1-3/4", with H.P. hex nut - tie strap to extension rim

14шт.

BOLT machine, 3/4" x 2", with H.P. hex nut, tie strap to rear wheel (with steel spade lugs)

14шт.

BOLT machine, 3/4" x 2-1/2", with hex nut, tie strap to rear wheel (with cast spade lugs)

14шт.

WASHER lock, standard, 3/4"

42шт.

04283ab

O4283AB

RIM extension, 8" x 48"

2шт.

a41aa

A41AA

RIMS set of 8" x 48" extension, with tie straps (for rear wheels with steel spade lugs) (Machinery item)

1шт.

Consists of: 2 - 3727AA, 14 - 01959AB, 14 - 3/4" x 1-3/4" machine bolts (H.P. hex nut), 14 - 3/4" x 2" machine bolts (H.P. hex nuts), 42 - 3/4" standard lock washers)

1шт.

a464aa

A464AA

RIMS set of 8" x 48" extension, with tie straps (for rear wheels with cast spade lugs) (Machinery item)

1шт.

Consists of: 2 - 3727AA, 14 - 01959AB, 14 - 3/4" x 1-3/4" machine bolts (H.P. hex nut), 14 -3/4" x 2-1/2" machine bolts (H.P. hex nut), 14 - 3/4" x 2" No. 1 key head old standard plow bolt (hex nut), 42 - 3/4" standard lock washers)

1шт.

3727aa

3727AA

RIM extension, complete, 8" x 48" (Consists of: 1 - O1957AB, 1 - O1958AB, 1 - O4283AB, 14 - 5/8" x 1-1/4" round head rivets and 14 - 5/8" x 1-3/4" round head rivets)

2шт.

02011ab

O2011AB

RIM extension, 6" x 48"

1шт.

02012ab

O2012AB

STRAP tie, 6" extension rim (Can use A9319)

14шт.

BOLT machine, 3/4" x 1-1/2" , with hex nut

28шт.

BOLT machine, 3/4" x 2", with hex nut, tie strap to rear wheel (with steel spade lugs)

14шт.

BOLT machine, 3/4" x 2-1/2", with hex nut, tie strap to rear wheel (with cast spade lugs)

14шт.

WASHER lock, standard, 3/4"

28шт.

96aa

96AA

RIMS set of 6" x 48" extension, with tie straps (for rear wheels, with steel spade lugs) (Machinery item)

1шт.

465aa

465AA

RIMS set of 6" x 48" extension, with tie straps (for rear wheels, with cast spade lugs) (Machinery item)

1шт.

180aa

180AA

RIMS set of 6" x 48" extension (Consists of: 2 - O2011AB, 28 - 3/4" x 1½ machine bolt with hex nut and 28 - 3/4" standard lock washers) (Machinery item)

1шт.

181aa

181AA

RIMS set of 8" x 48" extension (Consists of: 2 - 3727AA, 28 - 3/4" x 1-1/2" machine bolts (H.P. hex nut) and 28 - 3/4" standard lock washers) (Machinery item)

1шт.

3727aa

3727AA

RIM extension, complete, 8" x 48" (Consists of: 1 - 01957AB, 7 - 01958AB, 1 - 04283AB, 14 - 5/8" x 1-1/4" round head rivets and 14 - 5/8" x 1-3/4" round head rivets)

2шт.

01957ab

O1957AB

HUB rim, extension

2шт.

01958ab

O1958AB

SPOKE rim, extension

14шт.

RIVET round head, 5/8" x 1-1/4"

28шт.

RIVET round head, 5/8" x 1-3/4"

28шт.

02011ab

O2011AB

RIM extension, 6" x 48"

2шт.

BOLT machine, with hex nut, 3/4" x 1-1/2"

28шт.

WASHER lock, standard, 3/4"

28шт.

04283ab

O4283AB

RIM extension, 8" x 48"

2шт.

BOLT machine, with H.P hex nut, 3/4" x 1-1/2"

28шт.

WASHER lock, standard, 3/4"

28шт.

a1338aa

A1338AA

RIMS set of 12 extension, with 6" x 10-1/2" lugs (Machinery item)

1шт.

01256ab

O1256AB

RIMS extension, 12"

2шт.

05092ab

O5092AB

LUG with tie strap, 6" x 10-1/2"

14шт.

BOLT machine, with hex nut, 3/4" x 1-1/2"

56шт.

WASHER lock, standard, 3/4"

56шт.
