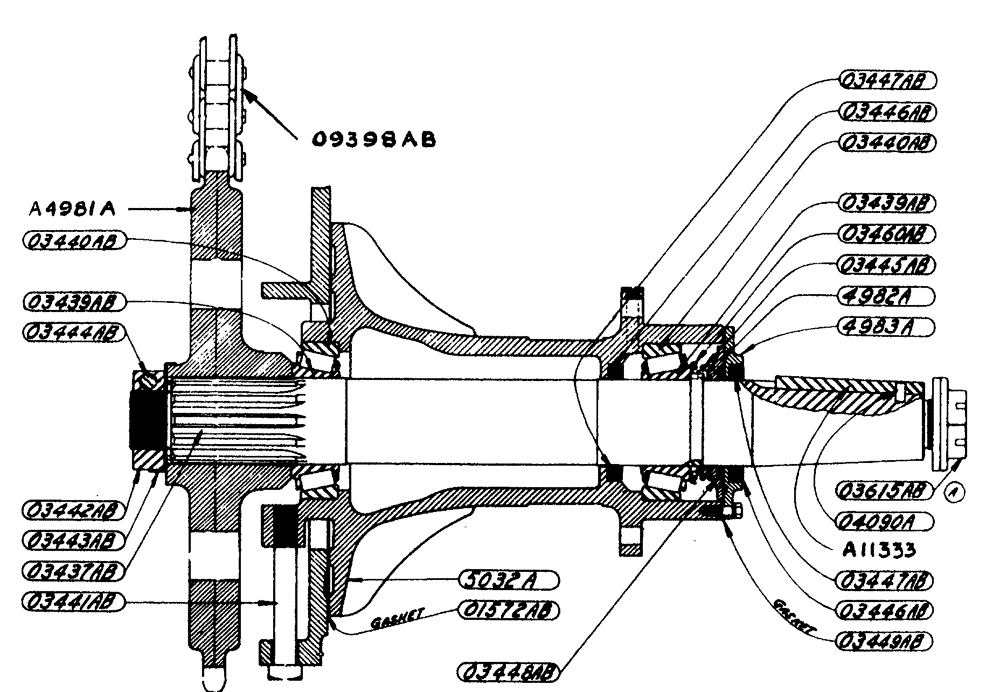

Запчасти Case IH LA-SERIES (057) - 3-1/2" REAR AXLE SHAFT AND PARTS (06) - POWER TRAIN

a10672

A10672

LINK, connecting, Whitney No. 140, 1-3/4" pitch

1шт.

a10673

A10673

LINK, roller, Whitney No. 140, 1-3/4" pitch

1шт.

a11333

A11333

KEY

rear axle

2шт.

a4981a

A4981A

SPROCKET rear axle, 38 teeth

2шт.

4982a

4982A

PLATE pressure, oil seal

2шт.

4983a

4983A

COVER end, rear axle

2шт.

BOLT hex head, N.C. thread, 3/8" x 1", with lock washer

6шт.

5032a

5032A

HOUSING rear axle

2шт.

FITTING lubricating, 67-1/2°,Lincoln No. 5350, 1/4"

2шт.

PLUG pipe, square head, 1/4"

2шт.

04090a

O4090A

DOWEL key, rear axle

2шт.

02093ab1

O2093AB1

CHAIN drive, rear axle, 43 links (Use O9398AB)

1шт.

02094ab1

O2094AB1

LINK roller, drive chain, rear axle (Use with O2093AB1)

1шт.

02095ab1

O2095AB1

LINK connecting, with detatchable plate and cotter pins (Use with O2093AB1)

1шт.

PIN cotter, hardened, 1/8" x 7/8"

2шт.

03437ab

O3437AB

SHAFT axle

2шт.

03439ab

O3439AB

CONE bearing, rear axle (Timken No. 759)

4шт.

03440ab

O3440AB

CUP bearing, rear axle (Timken No. 752)

4шт.

03441ab

O3441AB

SCREW adjusting, rear axle

2шт.

03442ab

O3442AB

NUT adjusting, bearing, rear axle

2шт.

03443ab

O3443AB

PLATE lock shaft, rear axle

2шт.

03444ab

O3444AB

BOLT to lock rear axle shaft adjusting nut

2шт.

NUT castellated, N.F. thread, 5/8"

2шт.

PIN cotter, 1/8" x 1-1/4"

2шт.

03445ab

O3445AB

SPRING plate, pressure, rear axle

2шт.

03446ab

O3446AB

RETAINER felt washer, rear axle

4шт.

03447ab

O3447AB

WASHER felt, rear axle

4шт.

03448ab

O3448AB

RING cork, oil seal, rear axle

2шт.

03449ab

O3449AB

GASKET end cover, housing, rear axle

2шт.

03460ab

O3460AB

RETAINER spring, rear axle

2шт.

03615ab

O3615AB

NUT shaft, rear axle

2шт.

08872ab

O8872AB

LINK roller, Morse No. HE140, 1-3/4" pitch

1шт.

09398ab

O9398AB

CHAIN (AG)

CHAIN roller, 44 links

2шт.

4307aa

4307AA

LINK connecting, Morse No. HE140, 1-3/4" pitch

1шт.
