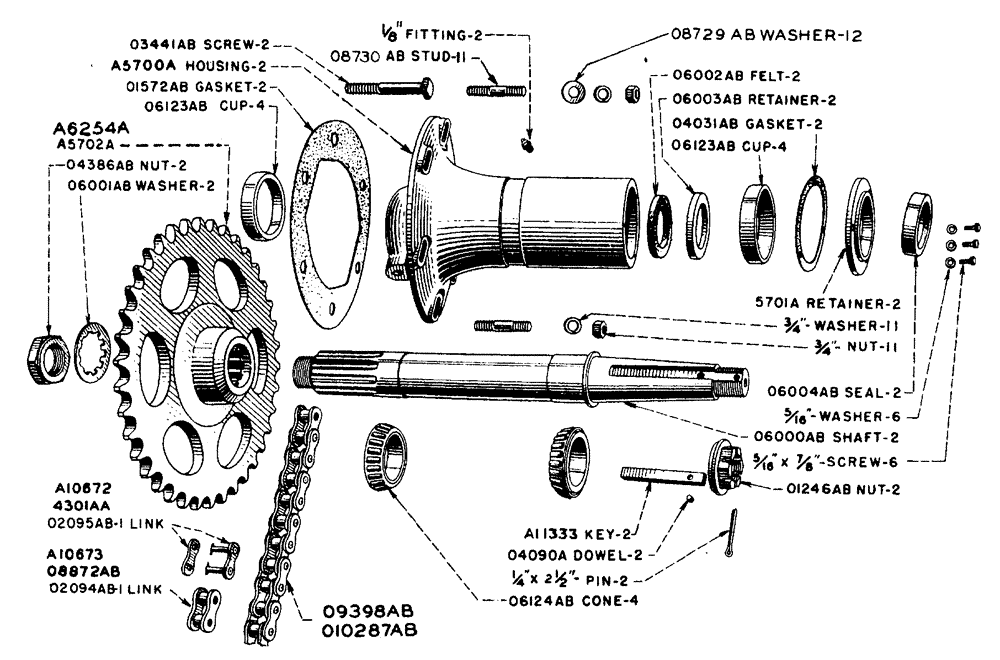

Запчасти Case IH LA-SERIES (056) - REAR AXLE (06) - POWER TRAIN

a10672

A10672

connecting, Whitney No. 140, 1-3/4" pitch

1шт.

a10673

A10673

roller, Whitney No. 140, 1-3/4" pitch

1шт.

a11333

A11333

KEY

rear axle

2шт.

a5700a

A5700A

HOUSING rear axle (Prior to tractor No. 5418607 for tractors without rear wheel brake) (See A5745A and 6100A)

2шт.

5701a

5701A

RETAINER oil seal, rear axle

2шт.

BOLT hex, N.C. thread, 5/16" x 7/8", with lock washer

6шт.

5702a

5702A

SPROCKET rear axle, 38 teeth, (Use A5702A)

1шт.

a5702a

A5702A

SPROCKET rear axle, 38 teeth (See A6254A)

1шт.

a5745

A5745

HOUSING rear axle (For tractors with rear wheel brakes prior to tractor No. 5418607) (See A5700A and 6100A)

2шт.

FITTING lube, 45°, Lincoln No. 5200, 1/8"

2шт.

PLUG pipe, square head, 1/8"

2шт.

BOLT hex, N.F. thread, 3/4" x 4", with bolt and lock washer

8шт.

6100a

6100A

HOUSING rear axle, for tractors with differential brake (Tractor No. 5418607 and after) (See A5700A and A5754A)

2шт.

FITTING straight, Lincoln No. 5000, 1/8"

2шт.

a6254a

A6254A

SPROCKET rear axle, 29 teeth (See A5702A)

2шт.

04090a

O4090A

DOWEL key, rear axle

2шт.

01246ab

O1246AB

NUT outer, shaft, rear axle

2шт.

PIN cotter, 1/4" x 2-1/2"

2шт.

01572ab

O1572AB

GASKET housing, rear axle

2шт.

02093ab1

O2093AB1

CHAIN roller, drive, rear axle, 43 links (See O9398AB and O10287AB) (Used with 5702A sprocket)

1шт.

02094ab1

O2094AB1

LINK roller, drive chain, rear axle (Use with O2093AB1)

1шт.

02095ab1

O2095AB1

LINK connecting, drive chain, rear axle (Use with O2093AB1)

1шт.

03441ab

O3441AB

SCREW adjusting, housing, rear axle

2шт.

04031ab

A26769

GASKET

retainer, oil seal

2шт.

04386ab

O4386AB

NUT inner, shaft, rear axle

2шт.

06000ab

O6000AB

SHAFT rear axle

2шт.

06001ab

O6001AB

X

WASHER lock, inner nut, rear axle shaft

2шт.

06002ab

A26973

FELT

WASHER felt, shaft, rear axle

2шт.

06003ab

O6003AB

RETAINER felt, shaft, rear axle

2шт.

06004ab

O6004AB

OIL SEAL

SEAL oil, shaft, rear axle

2шт.

06123ab

A27023

CUP

bearing, rear axle (Timken No. 47621)

4шт.

06124ab

16-1234

CONE

bearing, rear axle (Timken No. 47686)

4шт.

08729ab

A27449

WASHER

stud, housing, rear axle

12шт.

08730ab

O8730AB

STUD housing, rear axle, 3/4" x 3-3/8" long

11шт.

NUT hex, N.F. thread, 3/4", with lock washer

11шт.

09398ab

O9398AB

CHAIN (AG)

CHAIN roller, 44 links (Use with A5702A sprocket)

2шт.

010287ab

O10287AB

CHAIN roller, 38 links (Use with A6254A sprocket)

2шт.
