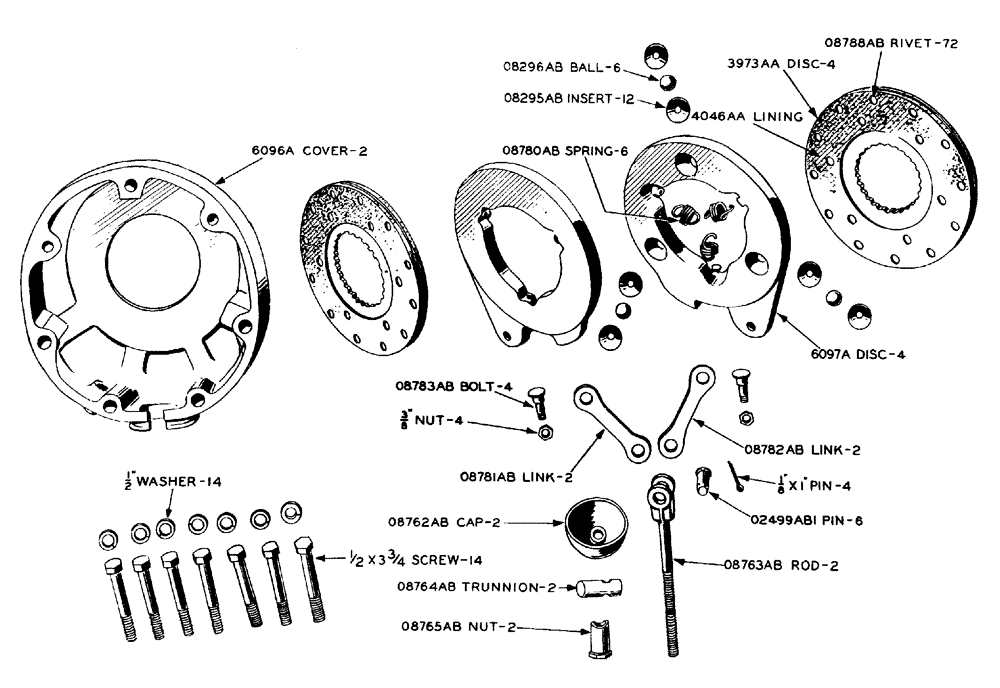

Запчасти Case IH LA-SERIES (055) - DIFFERENTIAL BRAKE TRACTOR NO. 5418607 AND AFTER (06) - POWER TRAIN

6096a

6096A

COVER brake, differential

2шт.

SCREW cap, hex head, N.C. thread, 1/2" x 3-3/4"

14шт.

WASHER lock, standard, 1/2"

14шт.

PLUG pipe, square head, 3/8"

2шт.

6097a

A31126

DISC

actuating, brake, differential

4шт.

6098a

6098A

PEDAL R.H., brake, differential

1шт.

SCREW set, cup point, square head, 5/16" x 1"

1шт.

NUT jam, hex, N.C. thread, 5/16"

1шт.

FITTING lubricating, 90°, Lincoln No. 5400, 1/8"

1шт.

6099a

6099A

PEDAL L.H., brake, differential

1шт.

SCREW set, cup point, square head, 5/16" x 1"

1шт.

NUT jam, hex, N.C. thread, 5/16"

1шт.

FITTING lubricating, 90°, Lincoln No. 5400, 1/8"

1шт.

6106a

6106A

LEVER R.H., brake, differential

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

6107a

6107A

LEVER L.H., brake, differential

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-3/4"

1шт.

WASHER lock, standard, 1/2"

1шт.

01971ab

O1971AB

WASHER spacer, brake pedal, differential

2шт.

02499ab1

427-8136

CLEVIS PIN,1/2" x 1.360"

PIN end, yoke, for 08763AB and 08775AB brake rods

6шт.

PIN cotter, 1/8" x 1"

4шт.

02701ab

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

END yoke, for 08775AB brake rod

2шт.

06044ab

O6044AB

X

RING snap, stud, ratchet, pedal, differential brake

1шт.

06698ab

O6698AB

PIN lock, pedal, differential brake

1шт.

PIN groove, type 1, 3/8" x 2"

1шт.

07183ab

A29920

PAWL

pedal, differential brake

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 7/8"

1шт.

WASHER lock, standard, 3/8"

1шт.

07607ab

O7607AB

WASHER cross shaft, differential brake

1шт.

08295ab

A155969

INSERT

for 6097A actuating disc

12шт.

08296ab

O8296AB

X

BALL for 6097A actuating disc

6шт.

08651ab

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

For 6107A lever #C, 5/16" x 1 1/8", HT

1шт.

08761ab

O8761AB

BOLT anchor, carrier, bearing, differential brake

2шт.

NUT light, hex, N.F. thread, 1/2"

4шт.

WASHER lock, standard, 1/2"

4шт.

WASHER plain, 1/2"

4шт.

08762ab

A27465

CAP

CUP dust, brake, differential

2шт.

08763ab

A27466

ROD

pull, brake, differential

2шт.

08764ab

O8764AB

X

TRUNNION rod, pull, differential brake

2шт.

08765ab

A27468

NUT

rod, pull, differential brake

2шт.

08770ab

O8770AB

PIN fulcrum, pedal, differential brake

1шт.

SCREW set, cup point, square head, 3/8" x 1-1/4"

1шт.

NUT jam, hex, N.C. thread, 3/8"

1шт.

08771ab

O8771AB

RATCHET pedal, brake, differential

1шт.

08772ab

O8772AB

STUD ratchet, pedal, differential brake

1шт.

08773ab

A27473

SPRING

pedal, differential brake

2шт.

08774ab

O8774AB

STUD hanger, spring, pedal, differential brake

1шт.

NUT light, hex, N.F. thread, 3/4"

1шт.

08775ab

O8775AB

ROD brake, differential

2шт.

NUT jam, light, hex, N.F. thread, 1/2"

2шт.

08780ab

A155624

SPRING

single, actuating disc

6шт.

08781ab

369237R1

LINK

single, actuating disc

2шт.

08782ab

369237R1

LINK

straddle, actuating disc

2шт.

08783ab

369238R1

BOLT,3/8" - 24 x 1 3/8", HT

BOLT link, actuating disc

4шт.

NUT jam, light, hex head, N.F. thread, 3/8"

4шт.

08788ab

21444H

RIVET,Csk Hd, 3/16" x 1/2", Brass

brake lining, differential

72шт.

0459fh

O459FH

X

RING retaining, cross shaft, differential brake

1шт.

3973aa

A40794

DISC

middle, with brake lining

4шт.

3978aa

3978AA

SHAFT cross, differential brake, with lever

1шт.

4046aa

A30182

LINING

S set of two with rivets, for 3973AA

4шт.
