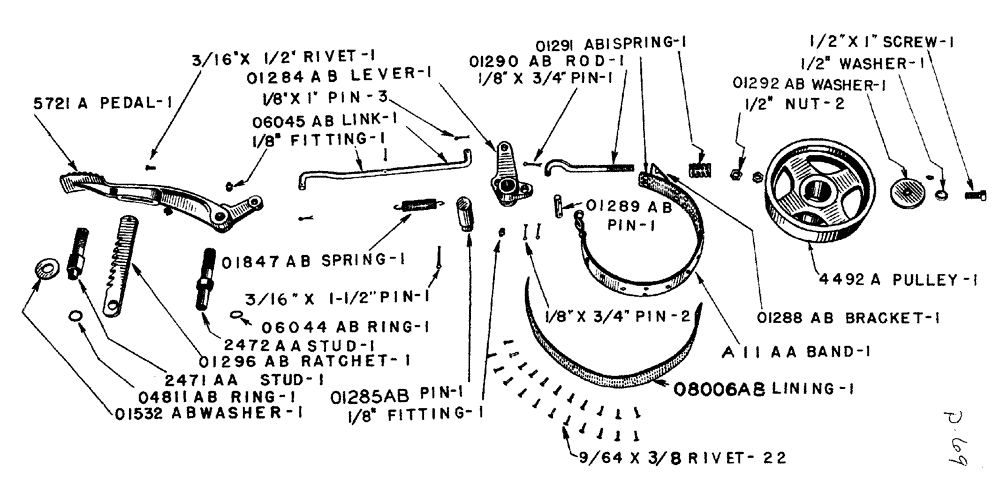

Запчасти Case IH LA-SERIES (046) - TRANSMISSION FOOT BRAKE PRIOR TO TRACTOR NO. 5208165 (06) - POWER TRAIN

4492a

4492A

PULLEY brake

1шт.

5721a

5721A

PEDAL foot, brake, transmission

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

01284ab

O1284AB

LEVER brake

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

01285ab

O1285AB

PIN hub, lever, brake

1шт.

PIN cotter, 3/16" x 1-1/2"

1шт.

01288ab

O1288AB

BRACKET band, brake

1шт.

RIVET wagon box head, 1/4" x 1/2"

3шт.

01289ab

O1289AB

PIN band, brake

1шт.

PIN cotter, 1/8" x 3/4"

2шт.

01290ab

O1290AB

ROD adjusting, band, brake

1шт.

PIN cotter, 1/8" x 3/4"

1шт.

NUT jam, hex, N.C. thread, 1/2"

2шт.

01291ab1

O1291AB1

SPRING rod, adjusting, brake band

1шт.

01292ab

O1292AB

WASHER thrust, pulley, brake

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1"

1шт.

WASHER lock, standard, 1/2"

1шт.

01296ab

O1296AB

RATCHET foot pedal

1шт.

RIVET round head, 3/16" x 1/2"

1шт.

01532ab

O1532AB

WASHER stud, lever, brake

1шт.

01847ab

O1847AB

SPRING foot pedal

1шт.

04811ab

A26828

RING

snap, ratchet stud, foot pedal

1шт.

06044ab

O6044AB

X

RING snap, stud, foot pedal

1шт.

06045ab

O6045AB

LINK foot pedal

1шт.

PIN cotter, 1/8" x 1"

3шт.

08006ab

O8006AB

LINING brake, for A11AA brake band

1шт.

RIVET tubular, brass, No. 2561, 9/64" x 3/8"

22шт.

11aa

11AA

BAND brake, with lining (Use A11AA)

1шт.

a11aa

A11AA

BAND brake, with lining

1шт.

2471aa

2471AA

STUD ratchet, foot pedal, with snap ring

1шт.

2472aa

2472AA

STUD foot pedal, with snap ring

1шт.
