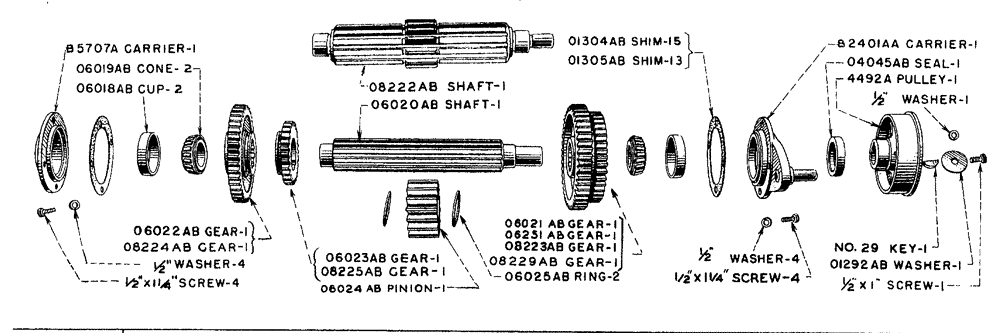

Запчасти Case IH LA-SERIES (045) - SLIDING GEAR SHAFT (06) - POWER TRAIN

4492a

4492A

PULLEY brake (Prior to tractor No. 5418607)

1шт.

KEY Woodruff No. 29

1шт.

5706a

5706A

CARRIER R.H. (Use B2401AA)

1шт.

a5706a

A5706A

CARRIER R.H. (Use B2401AA)

1шт.

b5706a

B5706A

CARRIER R.H. (Use B2401AA)

1шт.

5707a

5707A

CARRIER L.H. (Use B5707A)

1шт.

a5707a

A5707A

CARRIER L.H. (Use B5707A)

1шт.

b5707a

B5707A

CARRIER L.H., bearing, sliding gear shaft

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

4шт.

WASHER lock, standard, 1/2"

4шт.

6092a

6092A

CARRIER (Use A6092A)

1шт.

a6092a

A6092A

CARRIER R.H., bearing, sliding gear shaft (Tractor No. 5418607 and after) (See B2401AA)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

4шт.

WASHER lock, standard, 1/2"

4шт.

01292ab

O1292AB

WASHER pulley, brake (Prior to tractor No. 5418607)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1"

1шт.

WASHER lock, standard, 1/2"

1шт.

01304ab

O1304AB

SHIM R.H. and L.H., bearing carrier, sliding gear shaft (No. 30 gauge)

15шт.

01305ab

O1305AB

SHIM R.H. and L.H., bearing carrier, sliding gear shaft (.005" thick)

13шт.

04045ab

A27838

OIL SEAL,66.67mm ID x 92.2mm OD x 11.89mm Thk

oil, for B2401AA bearing carrier

1шт.

06018ab

ST966

CUP

bearing, sliding gear shaft (Timken No. 33821)

2шт.

06019ab

O6019AB

ROLLER BEARING

CONE bearing, sliding gear shaft (Timken No. 33890)

2шт.

06020ab

O6020AB

SHAFT sliding gear (Prior to Tractor No. 5208165) (See 08222AB)

1шт.

06021ab

O6021AB

GEAR sliding, first and third, 45 and 38 teeth (Prior to tractor No. 5208165) (See O6251AB, O8223AB and O8229AB)

1шт.

06022ab

O6022AB

GEAR sliding, second speed, 41 teeth (Prior to tractor No. 5208165) (See O8224AB)

1шт.

06023ab

O6023AB

GEAR sliding, fourth speed, 26 teeth (Prior to tractor No. 5208165) (See O8225AB)

1шт.

06024ab

O6024AB

PINION drive, differential, 16 teeth (Prior to tractor No. 5208165)

1шт.

06025ab

O6025AB

RING snap, pinion, differential drive (Prior to tractor No. 5208165)

2шт.

06251ab

O6251AB

GEAR sliding, low-low and third, 48 and 38 teeth (Used with rubber tire equipment only) (Prior to tractor No. 5208165) (See 06021AB, 08223AB and 08229AB)

1шт.

08222ab

O8222AB

SHAFT sliding gear, with differential drive pinion (Tractor No. 5208165 and after) (See O6020AB)

1шт.

08223ab

O8223AB

GEAR sliding, first and third speed, 45 and 37 teeth (Tractor No. 5208165 and after) (See O6021AB, O6251AB and O8229AB)

1шт.

08223ab

O8224AB1

GEAR sliding, second speed, 41 teeth (Tractor No. 5208165 and after) (See O6022AB)

1шт.

08225ab

O8225AB

GEAR sliding, fourth speed, 26 teeth (Tractor No. 5208165 and after) (See O6023AB)

1шт.

08229ab

O8229AB

GEAR sliding, low-low and third speed, 48 and 37 teeth (Used with rubber tire equipment only) (Tractor No. 5208165 and after) (See 06021AB, O6251AB and O8223AB)

1шт.

08861ab

3046999R1

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

RING "O" R.H. or L.H., bearing carrier (Tractor No. 5510452 and after)

2шт.

b2401aa

B2401AA

CARRIER R.H., bearing, sliding gear shaft, with pin for brake lever (Prior to tractor No. 5418607) (See A6092A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

4шт.

WASHER lock, standard, 1/2"

4шт.

PIN cotter, 3/16" x 1-1/2"

1шт.
