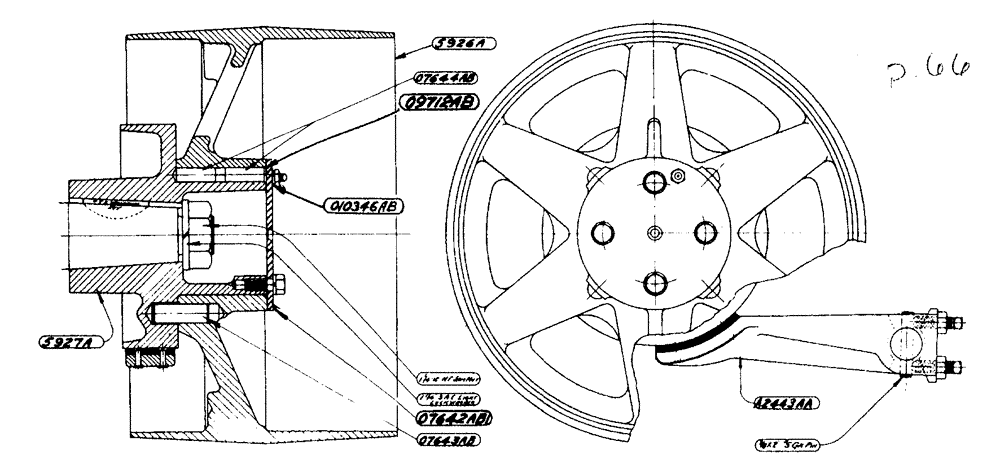

Запчасти Case IH LA-SERIES (043) - RESILIENT BELT PULLEY TRACTOR NO. 4904771 AND AFTER (06) - POWER TRAIN

a20104

A20104

LINING shoe, brake, with rivets

1шт.

5730a

5730A

SHOE brake, belt pulley (Use 2443AA)

1шт.

5926a

5926A

PULLEY belt, 13" diameter x 8-1/4" face (See 3420AA)

1шт.

5927a

5927A

HUB belt pulley and brake drum

1шт.

KEY Woodruff No. TX

1шт.

5984a

5984A

SHOE brake, belt pulley (Use A2443AA)

1шт.

07642ab1

O7642AB1

PLATE pulley, belt

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 7/8"

4шт.

WASHER lock, standard, 3/8"

4шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

07643ab

O7643AB

PIN driving, belt pulley

4шт.

07644ab

O7644AB

RUBBER pulley, belt

8шт.

09712ab

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

Plate, belt pulley -244, 70 Duro, 4.234" ID x .139" Thk

1шт.

010346ab

O10346AB

SHIM pulley, belt (.005" thick)

3шт.

2443aa

2443AA

SHOE brake, belt pulley, with lining (Prior to tractor No. 5108013)

1шт.

SCREW set, flat point, N.C. thread, 3/8" x 1-1/2"

2шт.

NUT jam, hex, N.C. thread, 3/8"

2шт.

a2443aa

A2443AA

SHOE brake, belt pulley, with lining (Tractor No. 5108013 and after)

1шт.

SCREW set, flat point, N.C. thread, 3/8" x 1-1/2"

2шт.

NUT jam, hex, N.C. thread, 3/8"

2шт.

3420aa

3420AA

PULLEY belt, 13" diameter x 8-1/4" face (Consists of: 1 each of: 5926A, 5927A, 07642AB, 1/8" Lincoln fitting, 4 each of: O7643AB, 3/8" x 7/8" hex head cap screws, 3/8" lock washers and 8 each of: O7644AB

1шт.

Used regular on Tractor No. 4904771 and after, special on tractors prior to No. 4904771

1шт.
