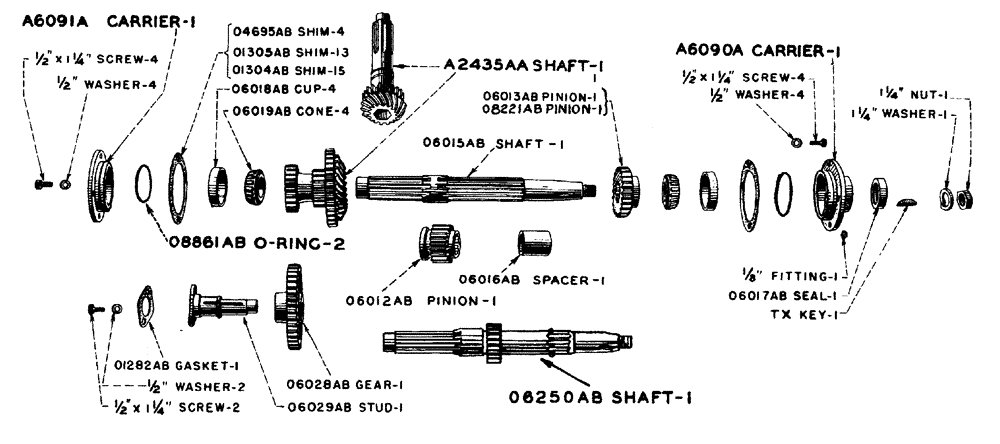

Запчасти Case IH LA-SERIES (042) - BELT PULLEY SHAFT (06) - POWER TRAIN

5704a

5704A

CARRIER R.H., bearing, shaft, belt pulley (Prior to tractor No. 5510452) (See A6090A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

4шт.

WASHER lock, standard, 1/2"

4шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

5705a

5705A

CARRIER L.H., bearing, shaft, belt pulley (Prior to tractor No. 5510452) (See A6091A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

4шт.

WASHER lock, standard, 1/2"

4шт.

6090a

6090A

CARRIER (Use A6090A)

1шт.

a6090a

A6090A

CARRIER R.H., bearing, shaft, belt pulley (Tractor No. 5510452 and after) (See 5704A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

4шт.

WASHER lock, standard, 1/2"

4шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

6091a

6091A

CARRIER (Use A6091A)

1шт.

a6091a

A6091A

PIN

CARRIER L.H., bearing, shaft, belt pulley (Tractor No. 5510452 and after) (See 5705A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

4шт.

WASHER lock, standard, 1/2"

4шт.

01282ab

O1282AB

GASKET gear, idler, reverse

1шт.

01304ab

O1304AB

SHIM carrier, bearing, shaft, belt pulley (No. 30 gauge)

15шт.

01305ab

O1305AB

SHIM carrier, bearing, shaft, belt pulley (.005" thick)

13шт.

04695ab

O4695AB

SHIM carrier, bearing, shaft, belt pulley (.003" thick)

8шт.

06012ab

O6012AB

PINION low speed, 16 teeth

1шт.

06013ab

O6013AB

PINION third speed, 23 teeth (Prior to tractor No. 5208165) (See 08221AB)

1шт.

06015ab

O6015AB

SHAFT belt pulley (See 06250AB)

1шт.

NUT jam, regular, hex, N.F. thread, 1-1/4"

1шт.

WASHER lock, standard, 1-1/4"

1шт.

KEY Woodruff No. TX

1шт.

06016ab

O6016AB

SPACER shaft, belt pulley

1шт.

06017ab

O6017AB

OIL SEAL

SEAL oil, shaft, belt pulley

1шт.

06018ab

ST966

CUP

shaft, belt pulley (Timken No. 33821)

2шт.

06019ab

O6019AB

ROLLER BEARING

CONE shaft, belt pulley (Timken No. 33890)

2шт.

06028ab

O6028AB

GEAR idler, reverse

1шт.

06029ab

O6029AB

STUD gear, idler, reverse

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

2шт.

WASHER lock, standard, 1/2"

2шт.

07628ab

O7628AB

GAUGE for setting spiral bevel pinion

1шт.

08221ab

O8221AB

PINION third speed, 24 teeth (Tractor No. 5208165 and after) (See 06013AB)

1шт.

08861ab

3046999R1

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

RING "O", R.H. or L.H., bearing carrier (Tractor No. 5510452 and after)

2шт.

a2435aa

A2435AA

SHAFT and PINION clutch, with transmission bevel gear

1шт.

When clutch shaft and bevel pinion or transmission bevel gear are ordered for repairs, furnish clutch shaft and bevel pinion with matched bevel gear, which is included in A2435AA.

1шт.

KEY Woodruff No. 141

1шт.

06250ab

O6250AB

SHAFT belt pulley, with low speed pinion

1шт.

Low-low gear combination for use with tractors equipped with rubber tires

1шт.

06251ab

O6251AB

GEAR sliding, low-low and third speed, 48 and 38 teeth (Prior to tractor No. 5208165) (See 08229AB)

1шт.

Low-low gear combination for use with tractors equipped with rubber tires

1шт.

08229ab

O8229AB

GEAR sliding, low-low and third speed, 48 and 37 teeth (Tractor No. 5208165 and after) (See 06251AB)

1шт.

Low-low gear combination for use with tractors equipped with rubber tires

1шт.
