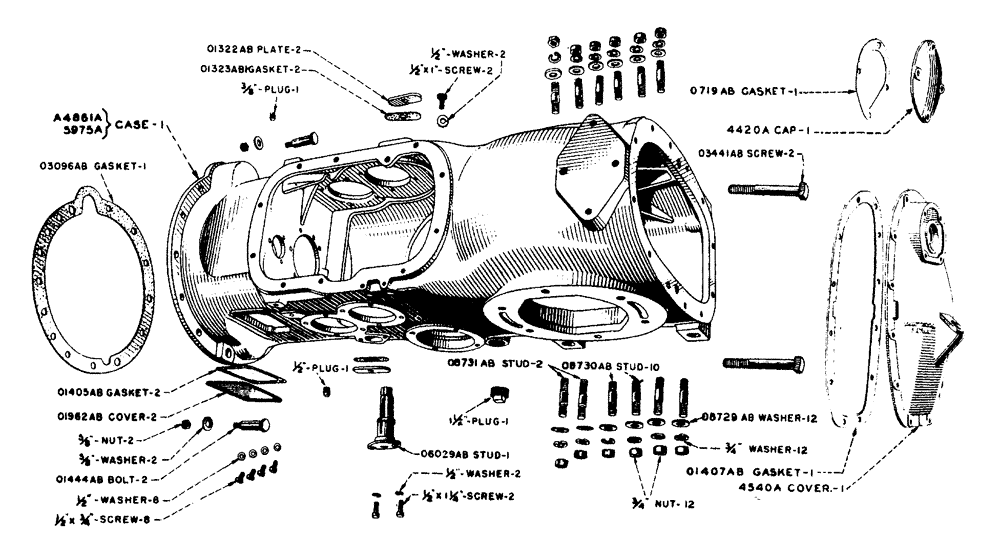

Запчасти Case IH LA-SERIES (040) - TRANSMISSION CASE (06) - POWER TRAIN

4420a

4420A

CAP rear cover, transmission case

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4", with lock washer

4шт.

4540a

4540A

COVER rear, transmission case

1шт.

PLUG pipe, square head, 1-1/4"

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4", with lock washer

12шт.

a4861a

A4861A

CASE transmission (Prior to tractor No. 5108013) (See 5975A)

1шт.

PLUG pipe, square head, 3/8"

1шт.

PLUG pipe, square head, 1/2"

1шт.

PLUG pipe, square head, 1-1/2"

1шт.

5975a

5975A

CASE transmission (Tractor No. 5108013 and after) (See A4861A)

1шт.

PLUG pipe, square head, 1-1/4"

1шт.

0719ab

O719AB

GASKET for 4420A cap

1шт.

01322ab

O1322AB

PLATE end, shifter shaft

2шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1", with lock washer

2шт.

01323ab1

A26503

GASKET

end plate, shifter shaft

2шт.

01405ab

1342402C2

GASKET

cover, hand hole, transmission

2шт.

01407ab

1342766C1

GASKET

rear cover, transmission case

1шт.

01444ab

O1444AB

BOLT flange, transmission and cylinder

2шт.

NUT light, hex, N.F. thread, 5/8"

2шт.

WASHER plain, standard, 5/8"

2шт.

01962ab

O1962AB

COVER hand hole, transmission

2шт.

SCREW cap, hex head, N.C. thread, 1/2" x 3/4"

8шт.

WASHER lock, standard, 1/2"

8шт.

03096ab

1342740C1

ENGINE GASKET KIT

GASKET engine to transmission case

1шт.

03441ab

O3441AB

SCREW adjusting, rear axle housing

2шт.

06029ab

O6029AB

STUD idler gear, reverse

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

2шт.

WASHER lock, standard, 1/2"

2шт.

07918ab1

O7918AB1

STUD lever, clutch throwout (Tractor No. 4917011 and after) (See O8730AB)

1шт.

08729ab

A27449

WASHER

stud, rear axle housing

12шт.

08730ab

O8730AB

STUD axle housing, rear, 3/4" x 3-3/8" long (Prior to tractor No. 4917011)

10шт.

NUT light, hex, N.F. thread, 3/4"

10шт.

WASHER lock, standard, 3/4"

10шт.

08730ab

O8730AB

STUD axle housing, rear (Tractor No. 4917011 and after)

11шт.

NUT light, hex, N.F. thread, 3/4"

11шт.

WASHER lock, standard, 3/4"

11шт.

08731ab

O8731AB

STUD lever support, clutch throwout, 3/4" x 3-5/8" long (Prior to tractor No. 4917011)

2шт.

NUT light, hex, N.F. thread, 3/4"

2шт.

WASHER lock, standard, 3/4"

2шт.

09640ab

100-3387

SNAP RING,#87, .668" Dia, E-Type

Ring, Retaining, , Lever stud, clutch throwout (Use with O7918AB1) #87, .668" Dia, E-Type

1шт.
