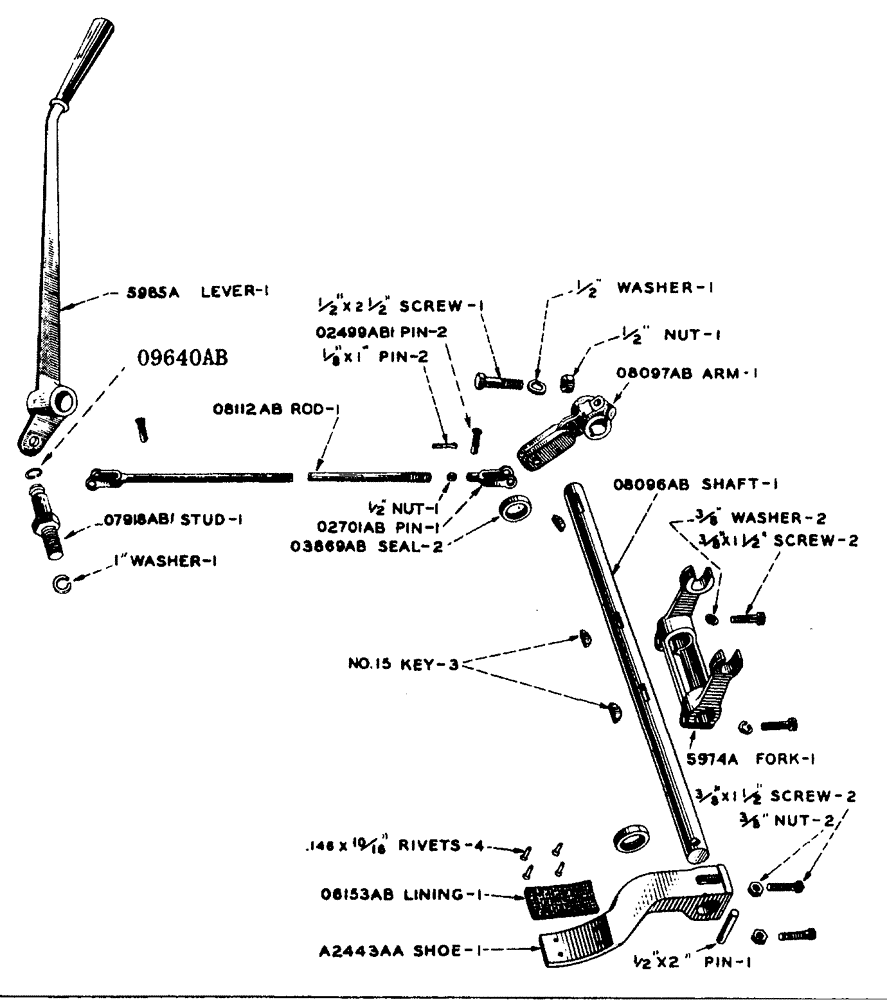

Запчасти Case IH LA-SERIES (038) - CLUTCH THROWOUT PARTS TRACTOR NO. 5108013 AND AFTER (06) - POWER TRAIN

5974a

5974A

FORK throwout, clutch

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1-1/2"

2шт.

WASHER lock standard, 3/8"

2шт.

5984a

5984A

SHOE brake, belt pulley (Use A2443AA)

1шт.

5985a

5985A

LEVER hand, throwout, clutch

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

02499ab1

427-8136

CLEVIS PIN,1/2" x 1.360"

PIN end, yoke, rod, clutch throwout

2шт.

PIN cotter, 1/8" x 1"

2шт.

02701ab

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

END yoke, rod, clutch throwout

1шт.

03869ab

A26758

OIL SEAL

SEAL oil, shaft, clutch throwout

2шт.

06153ab

A21104

LINING

brake shoe, belt pulley

1шт.

RIVET tubular, brass, No. 2561, .146" x 10/16"

4шт.

07918ab1

O7918AB1

STUD hand lever, clutch throwout

1шт.

WASHER lock, standard, 1"

1шт.

08096ab

O8096AB

SHAFT clutch throwout, 1-1/8" x 23-1/2"

1шт.

PIN groove, type 5, 1/2" x 2"

1шт.

08097ab

O8097AB

ARM shaft, clutch throwout

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2-1/2"

1шт.

NUT light, hex, N.F. thread, 1/2"

1шт.

WASHER lock, standard, 1/2"

1шт.

08112ab

O8112AB

ROD clutch throwout

1шт.

NUT light, hex, N.F. thread, 1/2"

1шт.

09640ab

100-3387

SNAP RING,#87, .668" Dia, E-Type

Ring, Retaining, , Lever stud, clutch throwout #87, .668" Dia, E-Type

1шт.

vt3397

VT3397

KEY Woodruff (Use with 08096AB shaft)

3шт.

a2443aa

A2443AA

SHOE brake, belt pulley, with lining

1шт.

SCREW set, flat point, N.C. thread, 3/8" x 1-1/2"

2шт.

NUT jam, hex, N.C. thread, 3/8"

2шт.
