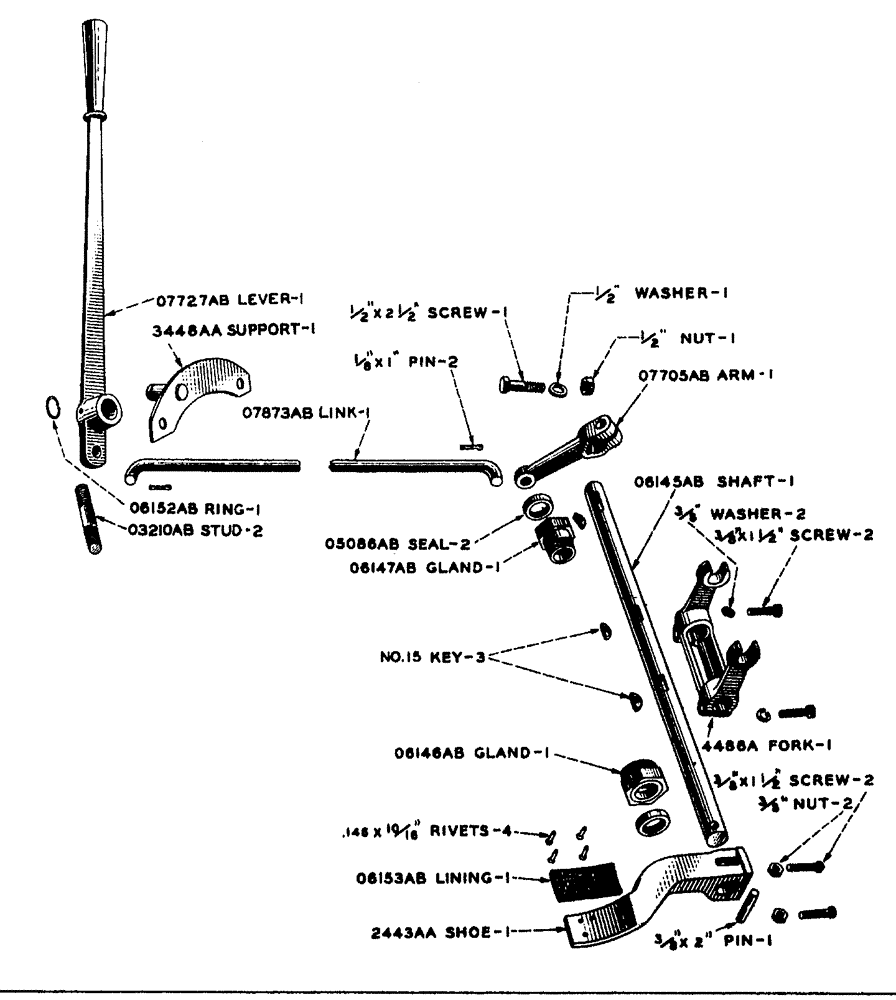

Запчасти Case IH LA-SERIES (037) - CLUTCH THROWOUT PARTS PRIOR TO TRACTOR NO. 5108013 (06) - POWER TRAIN

4486a

4486A

FORK throwout, clutch

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1-1/2"

2шт.

WASHER lock, standard, 3/8"

2шт.

5730a

5730A

SHOE brake, belt pulley (Use 2443AA)

1шт.

03210ab

O3210AB

STUD support, lever pin, clutch throwout

2шт.

NUT light, hex, N.F. thread, 3/4"

1шт.

05086ab

488561R91

OIL SEAL

SEAL oil, throwout shaft, clutch

2шт.

06145ab

O6145AB

SHAFT throwout, clutch, 1" x 21-7/8"

1шт.

KEY Woodruff, No. 15

3шт.

PIN groove, type 5, 3/8" x 2"

1шт.

06146ab

O6146AB

GLAND R.H., throwout, clutch

1шт.

06147ab

O6147AB

GLAND L.H., throwout, clutch

1шт.

06152ab

O6152AB

RING snap, stud, hand lever, clutch throwout

1шт.

06153ab

A21104

LINING

brake shoe, belt pulley

1шт.

RIVET tubular, brass, No. 2561, .146" x 10/16"

4шт.

07705ab

O7705AB

ARM shaft, throwout, clutch

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 2-1/2"

1шт.

NUT light, hex, N.F. thread, 1/2"

1шт.

WASHER lock, standard, 1/2"

1шт.

07727ab

O7727AB

LEVER hand, throwout, clutch

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

07873ab

O7873AB

LINK throwout, clutch, 5/8" x 32-1/4" long

1шт.

PIN cotter, 1/8" x 1"

2шт.

2443aa

2443AA

SHOE brake, belt pulley, with lining

1шт.

SCREW set, flat point, N.C. thread, 3/8" x 1-1/2"

2шт.

NUT jam, hex, N.C. thread, 3/8"

2шт.

3448aa

3448AA

SUPPORT lever, throwout, clutch, with pin

1шт.
