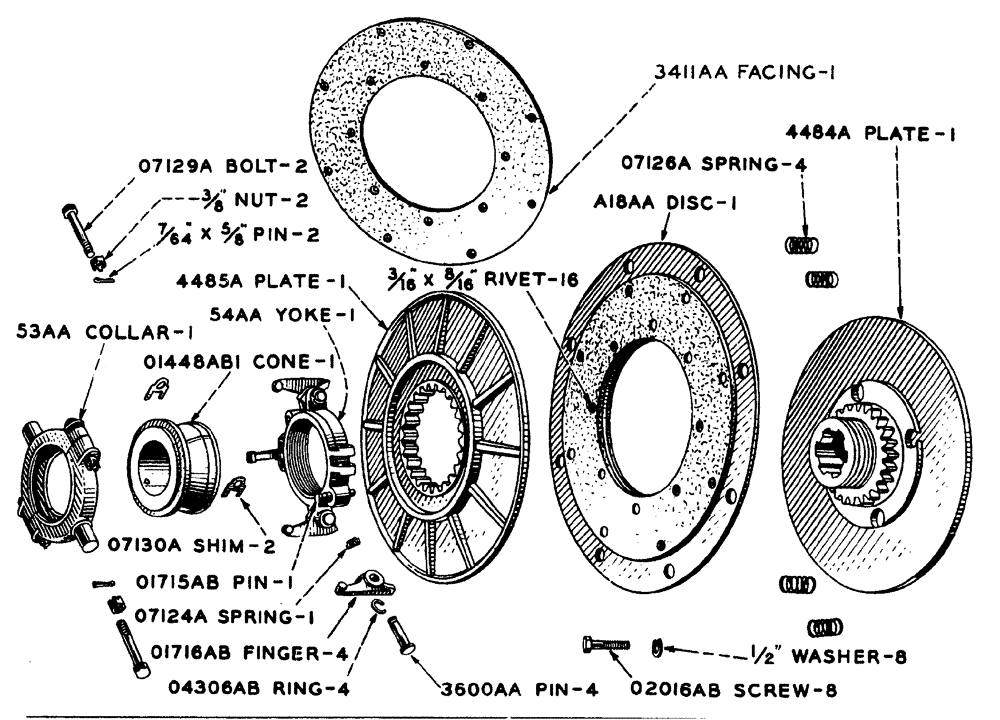

Запчасти Case IH LA-SERIES (036) - CLUTCH (06) - POWER TRAIN

4484a

4484A

BACK PLATE

PLATE, clutch

1шт.

4485a

4485A

PLATE, floating, clutch

1шт.

4487a

4487A

COLLAR cone, clutch (Use 53AA)

1шт.

07124a

A40197

SPRING

pin, adjusting lock, clutch

1шт.

07126a

O7126A

SPRING release, clutch

4шт.

07129a

O7129A

BOLT collar, cone, clutch

2шт.

NUT castle, light, hex, N.F. thread, 3/8"

2шт.

PIN cotter, 7/64" x 5/8"

2шт.

07130a

O7130A

SHIM collar, cone, clutch

2шт.

01448ab1

O1448AB1

CONE clutch

1шт.

01715ab

O1715AB

PIN lock, adjusting, clutch

1шт.

01716ab

O1716AB

FINGER

clutch

4шт.

01977ab

O1977AB

PIN spreader, for spreading engine and transmission (See 61AA)

2шт.

PIN cotter, 1/4" x 1-1/2"

8шт.

02016ab

O2016AB

SCREW cap, clutch driving disc

8шт.

WASHER lock, standard, 1/2"

8шт.

04305ab

A40190

PIN

finger, clutch (Use 3600AA)

1шт.

04306ab

A26784

RING, SNAP

RING snap, finger pin, clutch

4шт.

a18aa

A18AA

DISC driving, clutch, with facing

1шт.

53aa

53AA

COLLAR cone, clutch

1шт.

54aa

54AA

YOKE, adjusting

1шт.

a55aa

A55AA

CLUTCH ASSEMBLY

1шт.

61aa

61AA

SET pins, spreader, for spreading engine and transmission (Consists of : 2 - O1977AB pins and 8 - 1/4" x 1-1/2" cotter pins)

1шт.

3411aa

3411AA

FACING, CLUTCH

CLUTCH FACING, with rivets (Consists of: 2 - facings and 16 - 3/16" x 8/16" brass tubular rivets, No. 1681)

1шт.

3600aa

3600AA

PIN finger, clutch, with snap rings

4шт.
