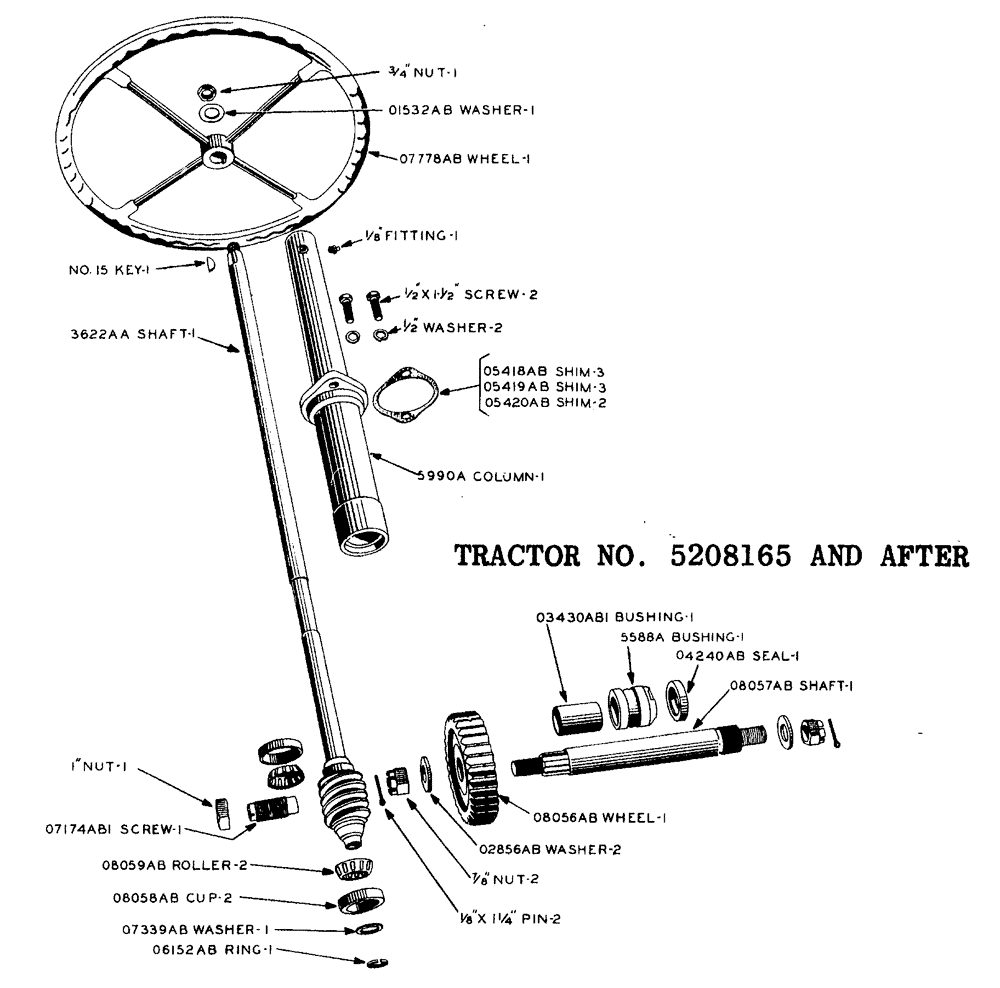

Запчасти Case IH LA-SERIES (077) - STEERING GEAR - TRACTOR NO. 5208165 AND AFTER (05) - STEERING

2417½a

2417½A

PLUG cover, transmission (Prior to tractor No. 5208165)

1шт.

5588a

5588A

BUSHING outer, worm shaft, steering (Tractor No. 5208165 and after) (See O3430AB1)

1шт.

5711a

5711A

COLUMN shaft, steering (Prior to tractor No. 5208165) (See 5990A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/2"

2шт.

WASHER lock, standard, 1/2"

2шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

5990a

5990A

X

COLUMN shaft, steering (Tractor No. 5208165 and after) (See 5711A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/2"

2шт.

WASHER lock, standard, 1/2"

2шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

01241ab

O1241AB

BALL spindle, steering, L.H. and steering drop arm

2шт.

01244ab

O1244AB

ROD tie, front axle

1шт.

NUT jam, hex, N.F. thread, 7/8"

2шт.

01532ab

O1532AB

WASHER shaft, steering

1шт.

02003ab

A26628

ADJUSTMENT SCREW,5/16" - 18 x 3/4"

SCREW adjusting, drag link, steering

2шт.

PIN cotter, 1/8" x 2"

2шт.

02004ab

O2004AB

BEARING floating, drag link, steering

4шт.

02005ab

A26630

VALVE SPRING

SPRING drag link, steering

2шт.

02856ab

O2856AB

WASHER shaft, drop arm, steering

2шт.

03098ab

O3098AB

PLUG cover, top, transmission case

1шт.

03430ab1

O3430AB1

BUSHING outer, worm shaft, steering (Prior to tractor No. 5208165) (See 5588A)

1шт.

03430ab1

O3430AB1

BUSHING inner, worm shaft, steering (Tractor No. 5208165 and after) (See O5425AB1)

1шт.

03938ab1

A26767

SEAT

and SPACER drag link, steering

2шт.

04240ab

A26777

OIL SEAL

oil, worm shaft, steering

1шт.

05157ab

O5157AB

NUT end pin, tie rod yoke

2шт.

PIN cotter, 1/8" x 1"

2шт.

05417ab

O5417AB

PLUG end, steering column

1шт.

05418ab

O5418AB

SHIM steering column (.003" thick)

4шт.

05419ab

O5419AB

SHIM steering column (.005" thick)

3шт.

05420ab

O5420AB

SHIM steering column (N0. 30 gauge)

4шт.

05423ab

O5423AB

SHAFT drop arm, steering (Prior to tractor No. 5208165) (See O8057AB)

1шт.

NUT castle, light, N.F. thread, 7/8"

2шт.

PIN cotter, 1/8" x 1-1/4"

2шт.

05425ab1

O5425AB1

BUSHING inner, worm shaft, steering (Prior to tractor No. 5208165) (See O3430AB1)

1шт.

06056ab1

O6056AB1

BUSHING spindle arm, steering, R.H. or L.H.

2шт.

06057ab

O6057AB

END yoke, tie rod

2шт.

06058ab

O6058AB

PIN end, yoke, tie rod

2шт.

PIN cotter, 1/8" x 1"

2шт.

06152ab

O6152AB

RING snap, for 3622AA steering worm and shaft assembly (Tractor No. 5208165 and after)

1шт.

06711ab

211-1010

BALL,5/16" OD

steel, for 2184AA shaft, meter 5/16" Dia

32шт.

06712ab

O6712AB

CUP bearing, ball, for 2184AA shaft

2шт.

06713ab

O6713AB

RING retainer, ball bearing cup, for 2184AA shaft

2шт.

07174ab1

O7174AB1

SCREW adjusting, shaft, drop arm, steering

1шт.

NUT jam, hex, N.F. thread, 1"

1шт.

07339ab

O7339AB

WASHER retainer, worm bearing, steering (Tractor No. 5208165 and after)

1шт.

07778ab

O7778AB

WHEEL steering, 20"

1шт.

08056ab

O8056AB

WHEEL worm, steering, 33 teeth (Tractor No. 5208165 and after) (Prior part 2244AA)

1шт.

08057ab

O8057AB

SHAFT drop arm, steering (Tractor No. 5208165 and after) (See O5423AB)

1шт.

NUT castle, light, N.F. thread, 7/8"

2шт.

PIN cotter, 1/8" x 1-1/4"

2шт.

08058ab

A27279

BEARING, CUP

CUP worm bearing, steering, Timken No. 24 (Tractor No 5208165 and after)

2шт.

08059ab

A27280

BEARING, ROLLER

CONE worm bearing, steering, Timken No. 21BC (Tractor No. 5208165 and after)

2шт.

2184aa

2184AA

SHAFT cam, steering, with bearings and snap ring (Prior to tractor No. 5208165) (See 3622AA)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

KEY Woodruff No. 15

1шт.

NUT jam, light, hex, N.F. thread, 3/4"

1шт.

WASHER lock, standard, 7/8"

1шт.

2244aa

2244AA

ARM cam, steering, with stud (Prior to tractor No. 5208165) (Later part O8056AB)

1шт.

2404aa

2404AA

ARM L.H., spindle, steering, with ball and bushing, 1-1/8" shank diameter (Prior to tractor No. 5108013) (See 3615AA)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

KEY Woodruff No. 15

1шт.

NUT hex, N.F. thread, 7/8", with lock washer

1шт.

2461aa

2461AA

LINK drag

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

2шт.

PIN cotter, 1/8" x 2"

2шт.

2490aa

2490AA

ARM R.H., spindle, steering, with bushing, 1-1/8" shank diameter (Prior to tractor No. 5108013) (See 3614AA)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

KEY Woodruff No. 15

1шт.

NUT hex, N.F. thread, 7/8", with lock washer

1шт.

3614aa

3614AA

ARM R.H., spindle, steering, with bushing, 1-1/4" shank diameter (Tractor No. 5108013 and after) (See 2490AA)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

KEY Woodruff No. 15

1шт.

NUT hex, N.F. thread, 7/8", with lock washer

1шт.

3622aa

3622AA

SHAFT steering wheel, with worm (Tractor No. 5208165 and after) (See 2184AA)

1шт.

KEY Woodruff No. 15

1шт.

NUT jam, light, hex, N.F. thread, 3/4"

1шт.

4625aa

4625AA

ARM L.H., spindle, steering, with ball and bushing, 1-1/4" shank diameter (Tractor No. 5108013 and after) (See 2404AA)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

KEY Woodruff No. 15

1шт.

NUT hex, N.F. thread, 7/8", with lock washer

1шт.

4626aa

4626AA

ARM drop, steering, with ball

1шт.
