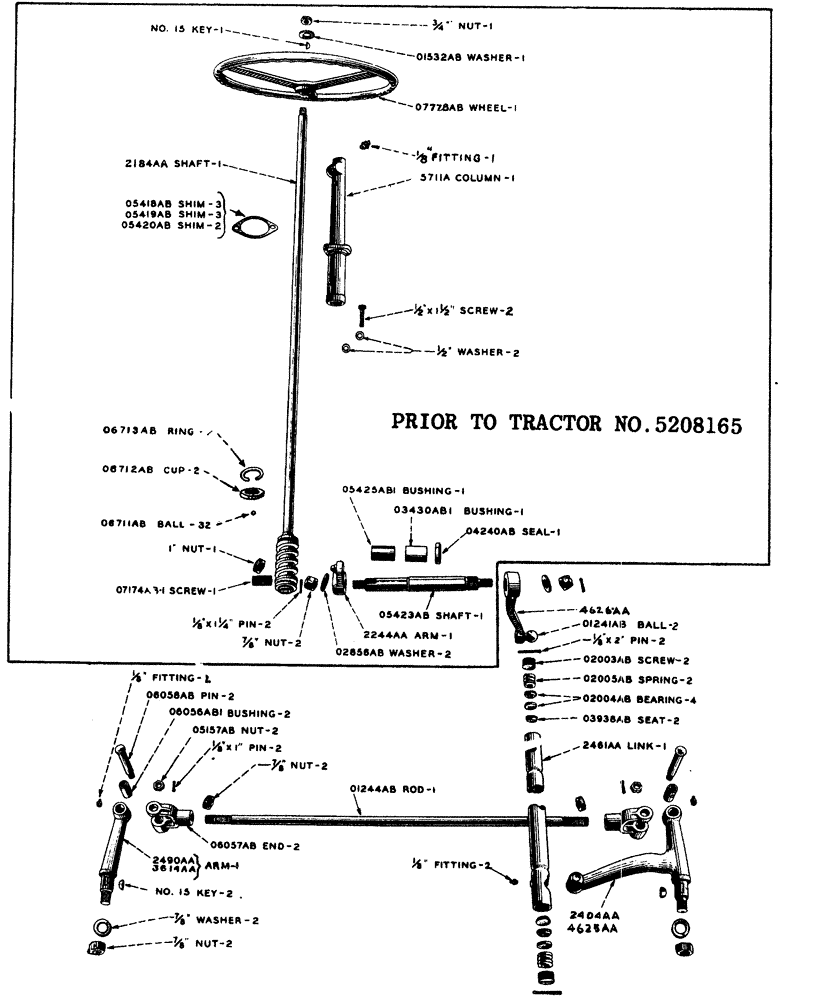

Запчасти Case IH LA-SERIES (076) - STEERING GEAR - PRIOR TO TRACTOR NO. 5208165 (05) - STEERING

2417½A

PLUG cover, transmission (Prior to tractor No. 5208165)

1шт.

5588A

BUSHING outer, worm shaft, steering (Tractor No. 5208165 and after) (See O3430AB1)

1шт.

5711A

COLUMN shaft, steering (Prior to tractor No. 5208165) (See 5990A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/2"

2шт.

WASHER lock, standard, 1/2"

2шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

5990A

X

COLUMN shaft, steering (Tractor No. 5208165 and after) (See 5711A)

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/2"

2шт.

WASHER lock, standard, 1/2"

2шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

O1241AB

BALL spindle, steering, L.H. and steering drop arm

2шт.

O1244AB

ROD tie, front axle

1шт.

NUT jam, hex, N.F. thread, 7/8"

2шт.

O1532AB

WASHER shaft, steering

1шт.

O2003AB

X

SCREW adjusting, drag link, steering

2шт.

PIN cotter, 1/8" x 2"

2шт.

O2004AB

BEARING floating, drag link, steering

4шт.

A26630

VALVE SPRING

SPRING drag link, steering

2шт.

O2856AB

WASHER shaft, drop arm, steering

2шт.

O3098AB

PLUG cover, top, transmission case

1шт.

O3430AB1

BUSHING outer, worm shaft, steering (Prior to tractor No. 5208165) (See 5588A)

1шт.

O3430AB1

BUSHING inner, worm shaft, steering (Tractor No. 5208165 and after) (See O5425AB1)

1шт.

A26767

SEAT

and SPACER drag link, steering

2шт.

A26777

OIL SEAL

oil, worm shaft, steering

1шт.

O5157AB

NUT end pin, tie rod yoke

2шт.

PIN cotter, 1/8" x 1"

2шт.

O5417AB

PLUG end, steering column

1шт.

O5418AB

SHIM steering column (.003" thick)

4шт.

O5419AB

SHIM steering column (.005" thick)

3шт.

O5420AB

SHIM steering column (N0. 30 gauge)

4шт.

O5423AB

SHAFT drop arm, steering (Prior to tractor No. 5208165) (See O8057AB)

1шт.

NUT castle, light, N.F. thread, 7/8"

2шт.

PIN cotter, 1/8" x 1-1/4"

2шт.

O5425AB1

BUSHING inner, worm shaft, steering (Prior to tractor No. 5208165) (See O3430AB1)

1шт.

O6056AB1

BUSHING spindle arm, steering, R.H. or L.H.

2шт.

O6057AB

END yoke, tie rod

2шт.

O6058AB

PIN end, yoke, tie rod

2шт.

PIN cotter, 1/8" x 1"

2шт.

O6152AB

RING snap, for 3622AA steering worm and shaft assembly (Tractor No. 5208165 and after)

1шт.

O6711AB

X

BALL steel, for 2184AA shaft, 5/16" diameter

32шт.

O6712AB

CUP bearing, ball, for 2184AA shaft

2шт.

O6713AB

RING retainer, ball bearing cup, for 2184AA shaft

2шт.

O7174AB1

SCREW adjusting, shaft, drop arm, steering

1шт.

NUT jam, hex, N.F. thread, 1"

1шт.

O7339AB

WASHER retainer, worm bearing, steering (Tractor No. 5208165 and after)

1шт.

O7778AB

WHEEL steering, 20"

1шт.

O8056AB

WHEEL worm, steering, 33 teeth (Tractor No. 5208165 and after) (Prior part 2244AA)

1шт.

O8057AB

SHAFT drop arm, steering (Tractor No. 5208165 and after) (See O5423AB)

1шт.

NUT castle, light, N.F. thread, 7/8"

2шт.

PIN cotter, 1/8" x 1-1/4"

2шт.

A27279

BEARING, CUP

CUP worm bearing, steering, Timken No. 24 (Tractor No 5208165 and after)

2шт.

A27280

BEARING, ROLLER

CONE worm bearing, steering, Timken No. 21BC (Tractor No. 5208165 and after)

2шт.

2184AA

SHAFT cam, steering, with bearings and snap ring (Prior to tractor No. 5208165) (See 3622AA)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

KEY Woodruff No. 15

1шт.

NUT jam, light, hex, N.F. thread, 3/4"

1шт.

WASHER lock, standard, 7/8"

1шт.

2244AA

ARM cam, steering, with stud (Prior to tractor No. 5208165) (Later part O8056AB)

1шт.

2404AA

ARM L.H., spindle, steering, with ball and bushing, 1-1/8" shank diameter (Prior to tractor No. 5108013) (See 3615AA)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

KEY Woodruff No. 15

1шт.

NUT hex, N.F. thread, 7/8", with lock washer

1шт.

2461AA

LINK drag

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

2шт.

PIN cotter, 1/8" x 2"

2шт.

2490AA

ARM R.H., spindle, steering, with bushing, 1-1/8" shank diameter (Prior to tractor No. 5108013) (See 3614AA)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

KEY Woodruff No. 15

1шт.

NUT hex, N.F. thread, 7/8", with lock washer

1шт.

3614AA

ARM R.H., spindle, steering, with bushing, 1-1/4" shank diameter (Tractor No. 5108013 and after) (See 2490AA)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

KEY Woodruff No. 15

1шт.

NUT hex, N.F. thread, 7/8", with lock washer

1шт.

3622AA

SHAFT steering wheel, with worm (Tractor No. 5208165 and after) (See 2184AA)

1шт.

KEY Woodruff No. 15

1шт.

NUT jam, light, hex, N.F. thread, 3/4"

1шт.

4625AA

ARM L.H., spindle, steering, with ball and bushing, 1-1/4" shank diameter (Tractor No. 5108013 and after) (See 2404AA)

1шт.

FITTING straight, lubricating, Lincoln No. 5000, 1/8"

1шт.

KEY Woodruff No. 15

1шт.

NUT hex, N.F. thread, 7/8", with lock washer

1шт.

4626AA

ARM drop, steering, with ball

1шт.
