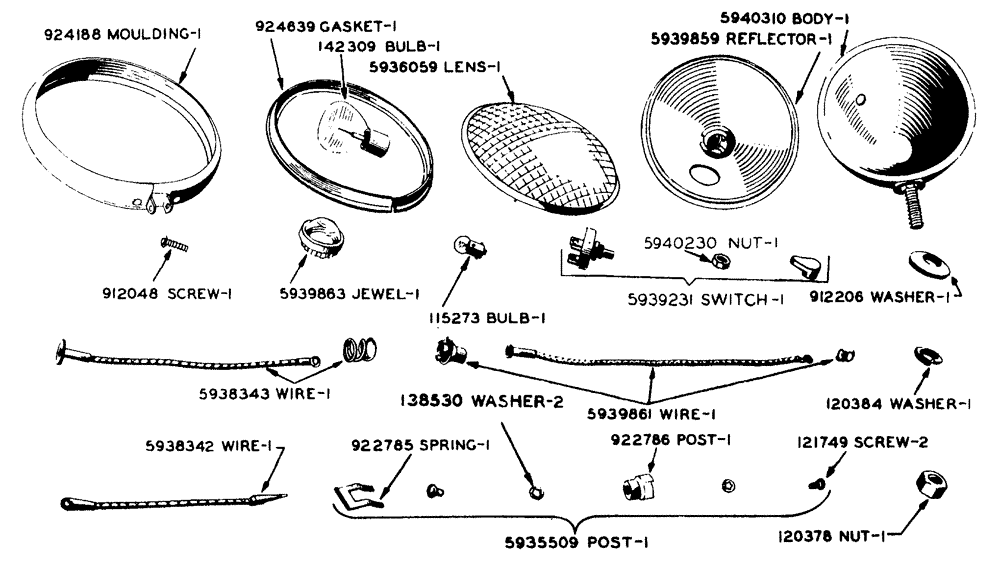

Запчасти Case IH LA-SERIES (020) - PARTS FOR 08810AB COMBINATION FLOOD AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

115273

115273

BULB 1 C.P., single contact, 6 - 8 volt (Mfg. No. 51)

1шт.

120378

425-108

NUT,1/2" - 13, Gr 5

NUT, , Mounting bolt 1/2"-13, G5

1шт.

120384

120384

WASHER,1/2"

LOCK, , Mounting bolt 1/2"

1шт.

121749

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

terminal

2шт.

138530

493-21017

LOCK WASHER,Int Tooth, #8

WASHER, shakeproof, for terminal screw

2шт.

142309

B50206

LAMP

BULB 32 C.P., single contact, 6 - 8 volt (Mfg. 1133L)

1шт.

912048

912048

SCREW moulding

1шт.

912206

912206

WASHER bearing, mountnig plate

1шт.

922785

922785

SUPPORT

SPRING terminal post

1шт.

922786

922786

POST terminal (Use 5935509)

1шт.

924188

924188

MOULDING ASSEMBLY

1шт.

924639

924639

GASKET reflector seal

1шт.

5935509

5935509

PACKAGE terminal (Consists of: 2 - 121749, 2 - 138530, 1 - 922785 and 1 - 922786)

1шт.

5936059

5936059

LENS

1шт.

5938342

5938342

WIRE ASSEMBLY switch to terminal post

1шт.

5938343

5938343

WIRE ASSEMBLY from 32 C.P., Serial Range: bulb-switch

1шт.

5939231

5939231

SWITCH ASSEMBLY

1шт.

5939859

5939859

REFLECTOR

1шт.

5939861

5939861

SOCKET and WIRING ASSEMBLY from switch to red light

1шт.

5939863

5939863

JEWEL ASSEMBLY

1шт.

5940230

5940230

NUT retaining, for switch

1шт.

5940310

5940310

BODY ASSEMBLY

1шт.

o8810ab

A35194

HEADLIGHT

LAMP combination flood and tail, complete

1шт.
