Запчасти Case IH LA-SERIES (019) - PARTS FOR 09668AB FRONT TRACTOR LAMPS (04) - ELECTRICAL SYSTEMS

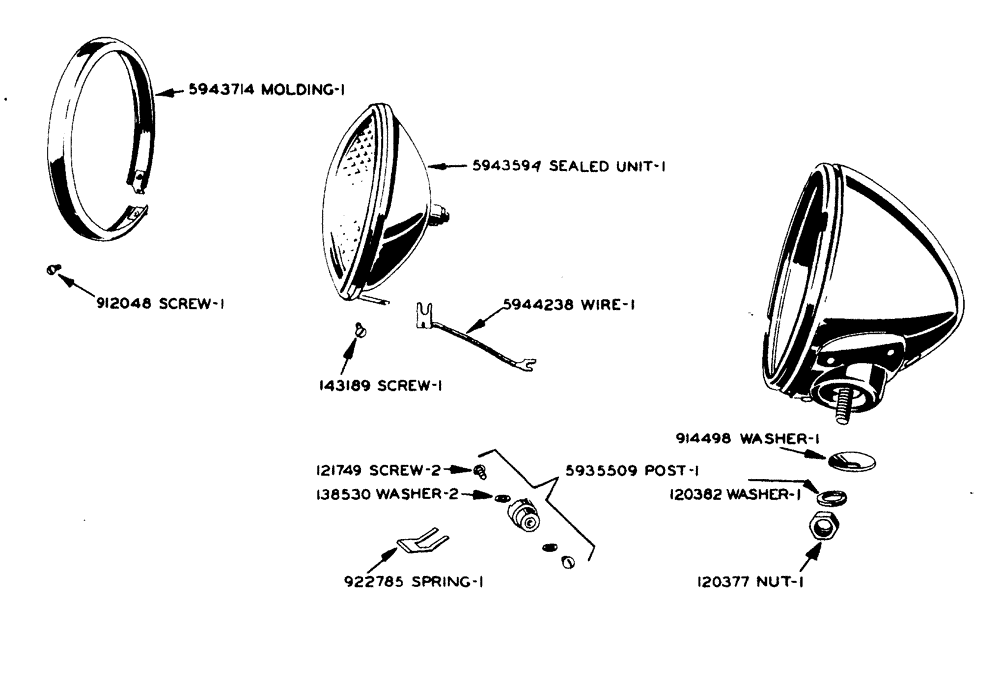

Схема запчастей Case IH LA-SERIES - (019) - PARTS FOR 09668AB FRONT TRACTOR LAMPS (04) - ELECTRICAL SYSTEMS
120377
143189
922785
914498
5943714
5944238
138530
912048
5935509
120382
121749
5943594

Артикул

Название

Примечание

Количество

120377

425-106

NUT,3/8"-16, Cl 5

Mounting bolt 3/8"-16, G5

1шт.

120382

492-11038

LOCK WASHER,3/8"

mounting bolt 3/8"

1шт.

121749

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

terminal

2шт.

138530

493-21017

LOCK WASHER,Int Tooth, #8

WASHER, shakeproof, for terminal screw

2шт.

143189

143189

WHEEL ASSY

SCREW terminal unit

1шт.

912048

912048

SCREW molding

1шт.

914498

914498

WASHER bearing, mounting plate

1шт.

922785

922785

SUPPORT

SPRING terminal post

1шт.

5935509

5935509

POST terminal, complete

1шт.

5943594

5943594

UNIT ASSEMBLY sealed, for 6 volt lamp

1шт.

5943714

5943714

MOLDING

1шт.

5944238

5944238

WIRING ASSEMBLY

1шт.

Выбрано товаров: 12
