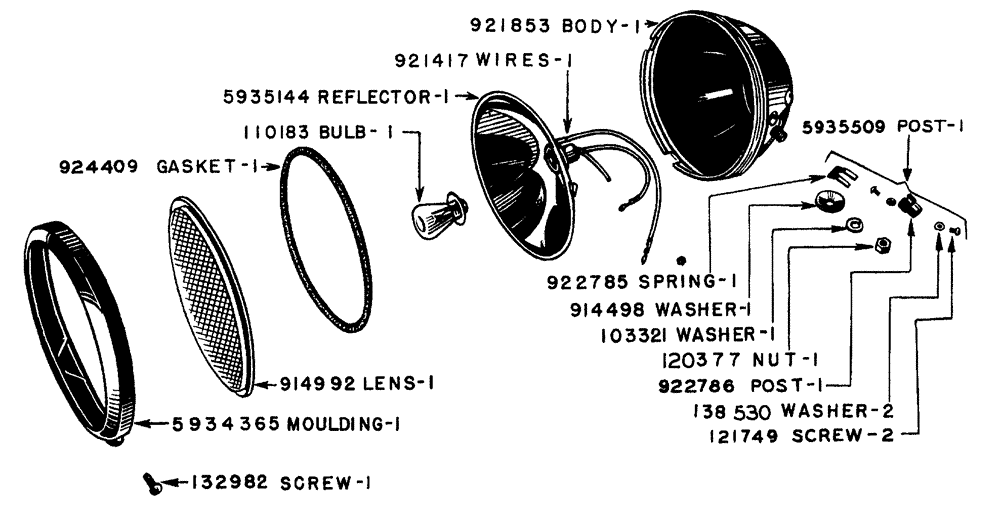

Запчасти Case IH LA-SERIES (018) - PARTS FOR 06752AB TRACTOR LAMP (04) - ELECTRICAL SYSTEMS

103321

492-11038

LOCK WASHER,3/8"

1шт.

110183

110183

BULB flange type, double contact 32-21 C.P., 6 - 8 volt (Mfg. No. 2320)

1шт.

120377

425-106

NUT,3/8"-16, Cl 5

Mounting 3/8"-16, G5

1шт.

121749

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

terminal plate

2шт.

132982

132982

SCREW,Slotted Rd Hd, #12-24 x 3/4"

moulding

1шт.

138530

493-21017

LOCK WASHER,Int Tooth, #8

WASHER, shakeproof, terminal screw

2шт.

914498

914498

WASHER bearing

1шт.

914992

914992

LENS tractor

1шт.

921417

921417

WIRING ASSEMBLY

1шт.

921853

921853

BODY ASSEMBLY

1шт.

922785

922785

SUPPORT

SPRING terminal post

1шт.

922786

922786

POST (Use 5935509)

1шт.

924409

924409

GASKET reflector

1шт.

5934365

5934365

MOULDING

1шт.

5935144

5935144

REFLECTOR ASSEMBLY

1шт.

5935509

5935509

PACKAGE terminal (Consists of: 1 - 922785, 1 - 922786, 2 - 121749 and 2 - 138530)

1шт.
