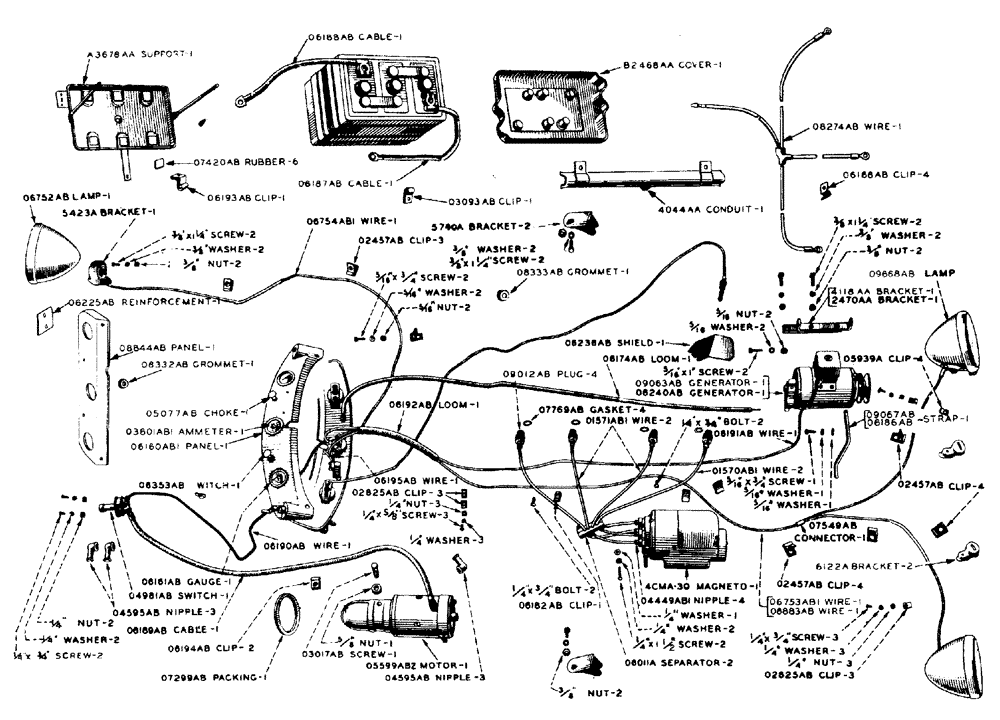

Запчасти Case IH LA-SERIES (016) - ELECTRIC LIGHTING AND STARTING PARTS (04) - ELECTRICAL SYSTEMS

02457ab

O2457AB

CLIP wire, generator

1шт.

02825ab

A26673

CLIP

wire, generator

3шт.

03601ab1

1341333C1

AMMETER

generator

1шт.

06185ab

O6185AB

BELT

generator

1шт.

06186ab

O6186AB

STRAP belt adjusting, for O6240AB generator (See O9067AB)

1шт.

SCREW cap, hex head, generator, N.C. thread, 5/16" x 3/4", with lock washer and plain washer

1шт.

06190ab

O6190AB

WIRE generator, starting, Serial Range: switch-ammeter

1шт.

06191ab

O6191AB

WIRE, Serial Range: generator-ammeter

1шт.

06192ab

O6192AB

LOOM wire, ammeter, generator

1шт.

06195ab

O6195AB

WIRE generator, ammeter to light switch

1шт.

06236ab

O6236AB

SHIELD generator

1шт.

06240ab

O6240AB

GENERATOR (Auto-Lite No. GBM4809-B) (Use O9063AB generator with 4118AA bracket and O9067AB strap)

1шт.

09063ab

O9063AB

GENERATOR (Auto-Lite No. GHD6001C)

1шт.

For service parts on Electric Auto-Lite generator, order from their nearest service station or direct from them at Toledo, Ohio.

1шт.

09067ab

O9067AB

STRAP belt adjusting, for 09063AB generator (See O6186AB)

1шт.

SCREW cap, hex head, generator, N.C. thread, 5/16" x 3/4", with lock washer and plain washer

1шт.

2470aa

2470AA

BRACKET with strap, for 06240AB generator (See 4118AA)

1шт.

SCREW cap, hex head, generator, N.F. thread, 5/16" x 1", with hex nut and lock washer

2шт.

SCREW cap, hex head, generator, N.F. thread, 3/8" x 1-1/4", with hex nut and lock washer

2шт.

4118aa

4118AA

BRACKET with strap, for 09063AB generator (See 2470AA)

1шт.

SCREW cap, hex head, generator, N.F. thread, 5/16" x 1", with hex nut and lock washer

2шт.

SCREW cap, hex head, generator, N.F. thread, 3/8" x 1-1/4", with hex nut and lock washer

2шт.

03017ab

O3017AB

SCREW starting motor

1шт.

NUT hex, jam, starting motor, N.C. thread, 5/8"

1шт.

03018ab

O3018AB

GASKET cork, starting motor (See O7299AB)

1шт.

04595ab

A21753

CAP

NIPPLE terminal, starting motor cable

3шт.

04981ab

131332C2

IGNITION SWITCH

SWITCH starting motor

1шт.

SCREW machine, round head, starting motor, N.C. thread, 1/4" x 3/4"

2шт.

NUT hex, light, starting motor, N.C. thread, 1/4"

2шт.

WASHER lock, standard, starting motor, 1/4"

2шт.

05599ab2

O5599AB2

MOTOR starting (Auto-Lite No. ML-4329)

1шт.

For service parts on Electric Auto-Lite starting motor, order from their nearest branch or direct from them at Toledo, Ohio.

1шт.

06188ab

O6188AB

CABLE battery to starting switch

1шт.

06189ab

O6189AB

CABLE starting switch to starting motor

1шт.

06190ab

O6190AB

WIRE starting, Serial Range: switch-ammeter

1шт.

06193ab

O6193AB

CLIP cable, battery to starting switch

1шт.

06194ab

O6194AB

CLIP cable, starting switch to starting motor

2шт.

07299ab

O7299AB

PACKING

rubber, starting motor (See 03018AB)

1шт.

BATTERY storage, 19 plate, 6 volt, Exide No. X194 (Not furnished by J.I. Case Co.)

1шт.

03093ab

O3093AB

CLIP ground cable, battery

1шт.

06187ab

O6187AB

CABLE ground, battery

1шт.

06188ab

O6188AB

CABLE battery to starting switch

1шт.

06193ab

O6193AB

CLIP cable, battery to starting switch

1шт.

07420ab

A27203

WASHER

RUBBER washer on A3678AA battery support

6шт.

a2445aa

A2445AA

SUPPORT battery (Prior to tractor No. 5208165) (See A3678AA)

1шт.

SCREW cap, hex head, battery, N.C. thread, 1/2" x 3/4"

1шт.

NUT wing, battery, N.C. thread, 3/8"

2шт.

a2468aa

A2468AA

COVER battery (Use B2468AA)

1шт.

b2468aa

B2468AA

COVER battery

1шт.

3678aa

3678AA

SUPPORT battery (Use A3678AA)

1шт.

a3678aa

A3678AA

SUPPORT battery (Tractor No. 5208165 and after) (See A2445AA)

1шт.

SCREW cap, hex head, battery, N.C. thread, 1/2" x 1-3/4"

1шт.

BOLT carriage, battery, 5/16" x 1"

2шт.

NUT wing, battery, N.C. thread, 3/8"

2шт.

02825ab

A26673

CLIP

wire, temperature gauge, instrument panel

2шт.

SCREW machine, round head, instrument panel, N.C. thread, 1/4" x 5/8"

2шт.

NUT hex, instrument panel, N.C. thread, 1/4"

2шт.

WASHER lock, standard, instrument panel, 1/4"

2шт.

03601ab1

1341333C1

AMMETER

instrument panel

1шт.

04373ab

O4373AB

BRACKET tube, temperature gauge, instrument panel, fastens to upper radiator elbow, used with O6161AB gauge (See O6281AB)

1шт.

SCREW machine, round head, instrument panel, N.C. thread, 1/4" x 5/8"

1шт.

NUT hex, instrument panel, N.C. thread, 1/4"

1шт.

WASHER lock, standard, instrument panel, 1/4"

1шт.

04981ab

131332C2

IGNITION SWITCH

SWITCH starting, instrument panel

1шт.

SCREW machine, round head, instrument panel, N.C. thread, 1/4" x 3/4"

2шт.

NUT hex, instrument panel, N.C. thread, 1/4"

2шт.

WASHER lock, standard, instrument panel, 1/4"

2шт.

05077ab

O5077AB

CHOKE

CONTROL choke, flexible, instrument panel

1шт.

05336ab

189309A1

GAUGE

temperature (Fahrenheit), instrument panel, (Tractor No. 5509680 and after) (See 06161AB and 07734AB)

1шт.

06160ab1

O6160AB1

PANEL instrument (See O8844AB)

1шт.

SCREW machine, round head, instrument panel, N.C. thread, 5/16" x 3/4"

2шт.

NUT hex, instrument panel, N.C. thread, 5/16"

2шт.

WASHER lock, standard, instrument panel, 5/16"

2шт.

06161ab

189309A1

GAUGE

temperature (Fahrenheit), instrument panel, (Prior to tractor No. 5509680) (See O5336AB and O7734AB)

1шт.

06174ab

O6174AB

LOOM choke control, flexible, instrument panel

1шт.

06195ab

O6195AB

WIRE light switch to ammeter, instrument panel

1шт.

06281ab

O6281AB

BRACKET tube, temperature gauge, instrument panel, fastens on cylinder head, used with O6161AB gauge (See 04373AB)

1шт.

SCREW machine, round head, instrument panel, N.C. thread, 1/4" x 5/8"

1шт.

NUT hex, instrument panel, N.C. thread, 1/4"

1шт.

WASHER lock, standard, instrument panel, 1/4"

1шт.

06353ab

O6353AB

SWITCH

light, instrument panel

1шт.

07734ab

O7734AB

GAUGE temperature (Metric), instrument panel, for export (See O5336AB and O6161AB)

1шт.

08844ab

O8844AB

PANEL instrument, for LP-gas (See O6160AB1)

1шт.

4044aa

4044AA

CONDUIT instrument panel, fastens along cylinder block for headlight wire, generator wire and temperature gauge tube (Tractor No. 5509680 and after)

1шт.

5740a

5740A

BRACKET front tractor lamp, headlights mounted on fender

2шт.

SCREW cap, hex head, front tractor lamps, N.F. thread, 3/8" x 1-1/4", headlights mounted on fender

2шт.

NUT hex, light, front tractor lamps, N.F. thread, 3/8", headlights mounted on fender

2шт.

WASHER lock, standard, front tractor lamps, headlights mounted on fender

2шт.

6122a

A34046

BRACKET

front tractor lamps, headlights mounted on radiator sides

2шт.

SCREW cap, hex head, front tractor lamps, N.C. thread, 3/8" x 1-1/2", headlights mounted on radiator sides

2шт.

NUT hex, front tractor lamps, N.C. thread, 3/8", headlights mounted on radiator sides

2шт.

WASHER lock, standard, front tractor lamps, 3/8", headlights mounted on radiator sides

2шт.

05939a

O5939A

CLIP wire, front tractor lamps, headlights mounted on fender

4шт.

SCREW cap, hex head, front tractor lamps, N.F. thread, 3/8" x 3/4", headlights mounted on fender

4шт.

WASHER lock, standard, front tractor lamps, 3/8", headlights mounted on fender

4шт.

02457ab

O2457AB

CLIP wire, front tractor lamps, on radiator inlet elbow, headlights mounted on fender (Prior to tractor No. 5208165) (See 06168AB)

4шт.

02457ab

O2457AB

CLIP wire, front tractor lamps, on radiator inlet elbow, headlights mounted on radiator sides (Prior to tractor No. 5208165) (See 06168AB)

1шт.

06168ab

O6168AB

CLIP wire, front tractor lamps, headlights mounted on fender (Tractor No. 5208165 and after) (See 02457AB)

4шт.

06182ab

O6182AB

CLIP wire, front tractor lamps, two wire line connector, headlights mounted on fender

1шт.

06182ab

O6182AB

CLIP wire, front tractor lamps, two wire line connector, headlights mounted on radiator sides

2шт.

06192ab

O6192AB

LOOM wire, front tractor lamps, headlights mounted on fender

1шт.

06752ab

O6752AB

LAMP bulb type, front tractor, for headlights mounted on fender and headlights mounted on radiator sides (See 09668AB)

2шт.

06753ab1

O6753AB1

WIRE front tractor lamps and rear lamp extension, headlights mounted on fender (Prior to tractor No 5208165) (See 08274AB)

1шт.

07549ab

O7549AB

CONNECTOR front tractor lamps, two wire line, headlights mounted on fender

1шт.

08274ab

O8274AB

WIRE front tractor lamps and rear lamp extension, headlights mounted on fender (Tractor No. 5208165 and after) (See 06753AB1)

1шт.

08333ab

O8333AB

GROMMET rubber, in fender apron for front tractor lamp wire, 1-3/4" OD x 1" hole, for headlights mounted on fender and headlights mounted on radiator sides

1шт.

08883ab

O8883AB

WIRE front tractor lamp, headlights mounted on radiator sides

1шт.

09668ab

O9668AB

LAMP sealed beam type, front tractor, for headlights mounted on radiator sides (See 06752AB)

2шт.
