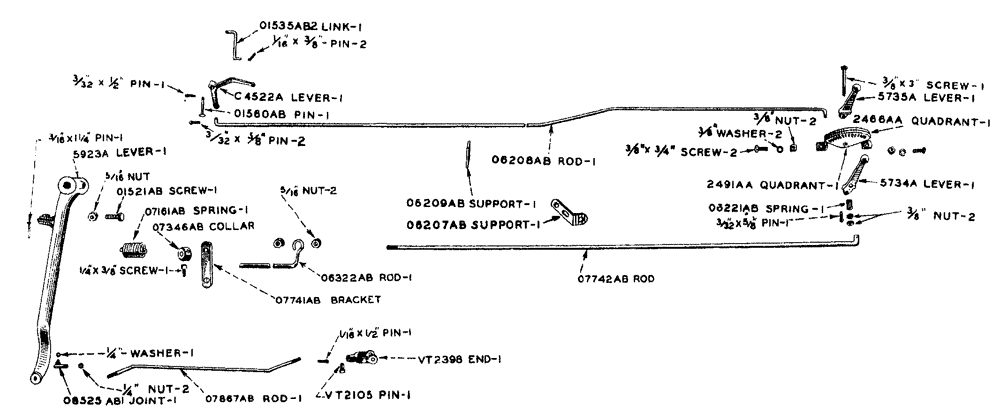

Запчасти Case IH LA-SERIES (014) - SPARK AND THROTTLE CONTROL - RATCHET TYPE, TRACTOR NO. 4904771 TO NO. 5509680 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
b4522a
B4522A
LEVER spark (Use C4522A)
1шт.
c4522a
C4522A
LEVER spark
1шт.
5734a
5734A
LEVER hand, throttle
1шт.
5735a
5735A
hand, spark
1шт.
SCREW hex head cap, N.F. thread, 3/8" x 3"
1шт.
NUT hex, light, N.F. thread, 3/8"
2шт.
5923a
5923A
LEVER governor
1шт.
01521ab
O1521AB
SCREW set, lever, governor
1шт.
NUT hex, jam, N.C. thread, 5/16"
1шт.
01535ab2
O1535AB2
LINK lever, magneto
1шт.
PIN cotter, 1/16" x 3/8"
2шт.
01560ab
O1560AB
PIN lever, spark
1шт.
PIN cotter, 3/32" x 1/2"
1шт.
06207ab
O6207AB
SUPPORT rod, spark and throttle
1шт.
SCREW hex head cap, N.C. thread, 1/2" x 1-1/2"
1шт.
SCREW hex head cap, N.C. thread, 1/2" x 1-3/4"
1шт.
06208ab
O6208AB
ROD control, spark
1шт.
PIN cotter, 3/32" x 5/8"
2шт.
06209ab
O6209AB
SUPPORT rod, control, spark
1шт.
06221ab
O6221AB
SPRING lever, spark and throttle
1шт.
06322ab
O6322AB
ROD control, front, throttle
1шт.
07161ab
A27169
SPRING
torsion, governor
1шт.
PIN cotter, 3/16" x 1-1/4"
1шт.
07346ab
O7346AB
COLLAR stop, rod, throttle
1шт.
SCREW set, cup point, N.C. thread, 1/4" x 3/8"
1шт.
07741ab
O7741AB
BRACKET guide, front rod, throttle control
1шт.
SCREW hex head cap, N.C. thread, 1/2" x 1-1/4"
1шт.
07742ab
O7742AB
ROD control, rear, throttle
1шт.
NUT hex, light, N.F. thread, 5/16"
2шт.
PIN cotter, 3/32" x 5/8"
1шт.
07867ab
O7867AB
ROD governor, Serial Range: lever-carburetor
1шт.
NUT hex, light, N.F. thread, 1/4"
2шт.
08525ab1
A10329
BALL JOINT,1/4" - 28 x 1"
JOINT ball, lever, governor
1шт.
WASHER lock, standard, 1/4"
1шт.
vt2105
VT2105
X
PIN yoke end, adjustable rod
1шт.
PIN cotter, 1/16" x 1/2"
1шт.
vt2398
VT2398
X
END yoke, adjustable rod, governor, Serial Range: lever-carburetor
1шт.
2466aa
2466AA
QUADRANT spark control, with guide
1шт.
SCREW hex head cap, N.F. thread, 3/8" x 3/4"
2шт.
NUT hex, light, N.F. thread, 3/8"
2шт.
WASHER lock, standard, 3/8"
2шт.
2491aa
2491AA
QUADRANT throttle control, with support
1шт.
Выбрано товаров: 42
