Запчасти Case IH LA-SERIES (013) - SPARK AND THROTTLE CONTROL - RATCHET TYPE, PRIOR TO TRACTOR NO. 4904771 (04) - ELECTRICAL SYSTEMS

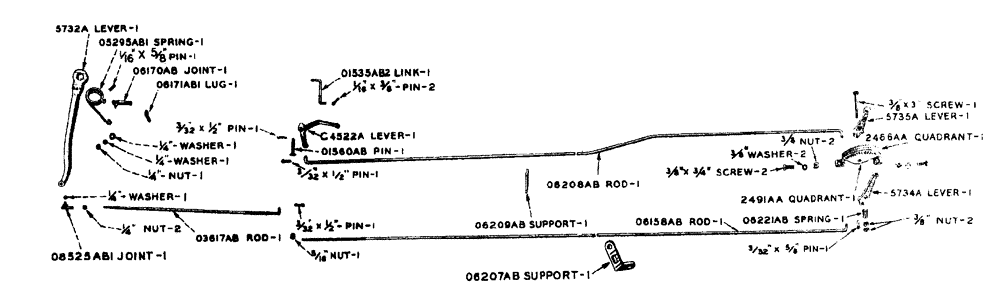

Схема запчастей Case IH LA-SERIES - (013) - SPARK AND THROTTLE CONTROL - RATCHET TYPE, PRIOR TO TRACTOR NO. 4904771 (04) - ELECTRICAL SYSTEMS
06158ab
08525ab1
05295ab1
06209ab
06170ab
06208ab
5734a
06221ab
2466aa
c4522a
01560ab
5732a
2491aa
01535ab2
5735a
06207ab
06171ab1
03617ab

Артикул

Название

Примечание

Количество

b4522a

B4522A

LEVER spark (Use C4522A)

1шт.

c4522a

C4522A

LEVER spark

1шт.

5732a

5732A

LEVER governor

1шт.

5734a

5734A

LEVER hand, throttle

1шт.

5735a

5735A

hand, spark

1шт.

SCREW hex head cap, N.F. thread, 3/8" x 3"

1шт.

NUT hex, light, N.F. thread, 3/8"

2шт.

01535ab2

O1535AB2

LINK lever, magneto

1шт.

PIN cotter, 1/16" x 3/8"

2шт.

01560ab

O1560AB

PIN lever, spark

1шт.

PIN cotter, 3/32" x 1/2"

1шт.

03617ab

O3617AB

ROD governor, Serial Range: lever-carburetor

1шт.

PIN cotter, 3/32" x 1/2"

1шт.

NUT hex, light, N.F. thread, 1/4"

1шт.

WASHER plain, standard, 1/4"

1шт.

05295ab

O5295AB

SPRING torsion, governor, (Use 2742AA)

1шт.

05295ab1

O5295AB1

SPRING torsion, governor, (See 2742AA)

1шт.

PIN cotter, 1/16" x 5/8"

1шт.

05296ab

O5296AB

SCREW set, lever, governor

1шт.

NUT hex, jam, N.C. thread, 5/16"

1шт.

06158ab

O6158AB

ROD control, throttle

1шт.

NUT hex, light, N.F. thread, 5/16"

1шт.

PIN cotter, 3/32" x 5/8"

1шт.

06170ab

O6170AB

JOINT ball, torsion spring, governor

1шт.

NUT hex, light, N.F. thread, 1/4"

1шт.

WASHER lock, standard, 1/4"

1шт.

WASHER plain, standard, 1/4"

1шт.

06171ab

O6171AB

LUG control rod, throttle (Use 2742AA)

1шт.

06171ab1

O6171AB1

LUG throttle control (See 2742AA)

1шт.

06207ab

O6207AB

SUPPORT rod, spark and throttle

1шт.

06208ab

O6208AB

ROD control, spark

1шт.

06209ab

O6209AB

SUPPORT rod, spark control

1шт.

SCREW hex head cap, N.F. thread, 5/8" x 2-1/2"

1шт.

06221ab

O6221AB

SPRING lever, spark and throttle

1шт.

08525ab1

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, lever, governor

1шт.

WASHER lock, standard, 1/4"

1шт.

2466aa

2466AA

QUADRANT spark control, with guide

1шт.

SCREW hex head cap, N.F. thread, 3/8" x 3/4"

2шт.

NUT hex, light, N.F. thread, 3/8"

2шт.

WASHER lock, standard, 3/8"

2шт.

2491aa

2491AA

QUADRANT throttle control, with support

1шт.

2742aa

2742AA

SPRING torsion, governor, with lug (Consists of: 1 - O5295AB1 and 1 - O6171AB1)

1шт.

Выбрано товаров: 42
