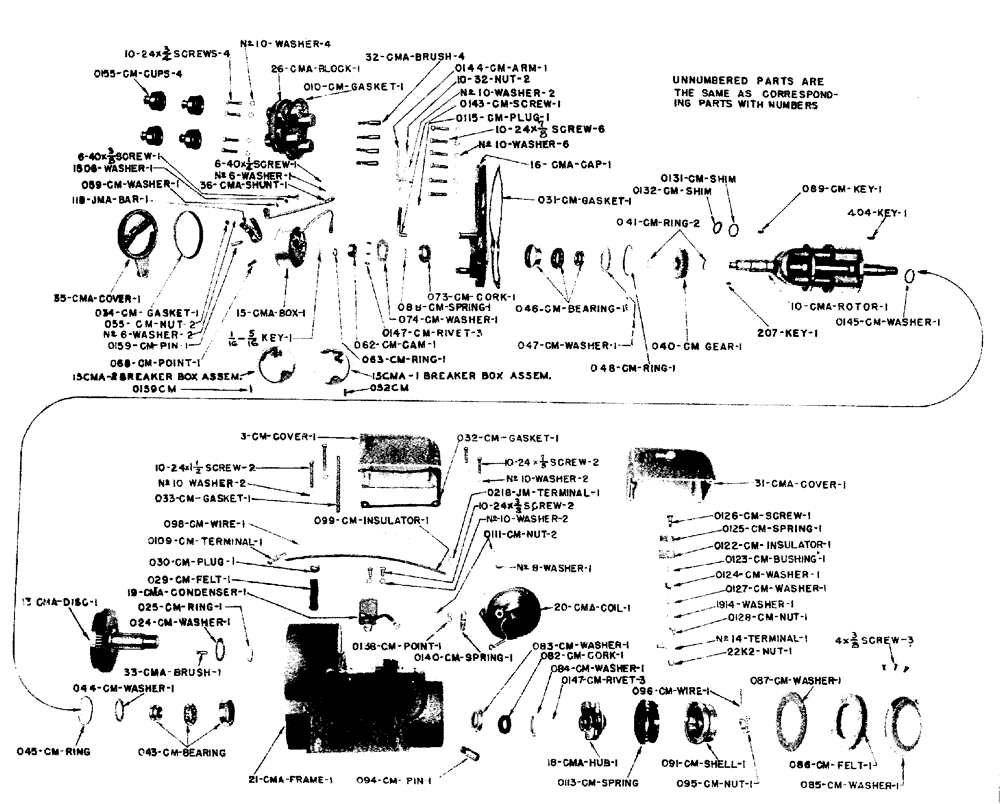

Запчасти Case IH LA-SERIES (012) - 4-CMA MAGNETO (04) - ELECTRICAL SYSTEMS

3cm

3CM

COVER top

1шт.

SCREW fillister head, No. 10 - 24 x 7/8"

2шт.

SCREW fillister head, No. 10 - 24 x 1/1-2"

2шт.

WASHER lock, No. 10

4шт.

010cm

O10CM

GASKET distributor block

1шт.

011cm

O11CM

BRUSH distributor

4шт.

012cm

O12CM

SPRING distributor brush

4шт.

014cm

O14CM

CUP distributor cable (Use 0155CM)

1шт.

024cm

O24CM

WASHER thrust, distributor shaft

1шт.

025cm

O25CM

RING snap, distributor shaft

1шт.

029cm

O29CM

FELT oil, distributor bearing

1шт.

030cm

O30CM

PLUG well screw, distributor bearing

1шт.

031cm

O31CM

GASKET end cap, magneto frame

1шт.

032cm

O32CM

GASKET top cover shelf, frame

1шт.

033cm

O33CM

GASKET top cover strip, frame

1шт.

034cm

O34CM

GASKET cork, breaker box cover

1шт.

040cm

O40CM

GEAR rotor drive

1шт.

041cm

O41CM

RING snap, rotor shaft

2шт.

043cm

O43CM

BEARING ball, large, rotor shaft (New departure #16)

1шт.

044cm

O44CM

WASHER large ball bearing

1шт.

045cm

O45CM

RING snap, large ball bearing washer

1шт.

046cm

O46CM

BEARING ball, small, rotor shaft (New departure #15) (Use 0370CM)

1шт.

047cm

O47CM

WASHER small ball bearing

1шт.

048cm

O48CM

RING snap, small ball bearing washer

1шт.

052cm

O52CM

PIN fulcrum (Used with 15CMA-1 breaker bar assembly)

1шт.

055cm

O55CM

NUT screw, stationary contact

1шт.

059cm

O59CM

WASHER screw, breaker bar

1шт.

062cm

O62CM

CAM

1шт.

063cm

O63CM

RING snap, cam

1шт.

068cm

O68CM

SCREW and POINT stationary contact (See 149CMA)

1шт.

55cm

55CM

NUT

1шт.

WASHER lock, thick, No. 6

1шт.

073cm

O73CM

RING oil, cork, small ball bearing

1шт.

074cm

O74CM

WASHER flat, small oil ring

1шт.

0147cm

O147CM

RIVET

3шт.

082cm

O82CM

RING oil, cork, large ball bearing

1шт.

083cm

O83CM

WASHER cupped, large oil ring

1шт.

0147cm

O147CM

RIVET

3шт.

084cm

O84CM

WASHER flat, large oil ring

1шт.

0147cm

O147CM

RIVET

3шт.

085cm

O85CM

RING cup, coupling

1шт.

SCREW flat head, Parker-Kalon, 3/8" x 4"

3шт.

086cm

O86CM

RING felt, coupling

1шт.

087cm

O87CM

WASHER flat, coupling felt ring

1шт.

088cm

O88CM

SPRING grounding

1шт.

089cm

O89CM

KEY gear, rotor drive

1шт.

091cm

O91CM

SHELL outer, impulse

1шт.

094cm

O94CM

PIN stop, impulse

1шт.

095cm

O95CM

NUT coupling, impulse

1шт.

096cm

O96CM

LOCKWIRE coupling nut, impulse

1шт.

098cm

O98CM

WIRE coil to breaker box

1шт.

099cm

O99CM

INSULATOR wire, coil to breaker box

1шт.

0109cm

O109CM

TERMINAL wire, coil to breaker box

1шт.

0111cm

O111CM

NUT primary, coil

1шт.

0113cm

O113CM

SPRING coupling, impulse

1шт.

0115cm

O115CM

PLUG seal, magneto

1шт.

0122cm

O122CM

INSULATOR for 31CMA cover

1шт.

0123cm

O123CM

BUSHING for 31CMA cover

1шт.

0124cm

O124CM

WASHER for 31CMA cover

1шт.

0125cm

O125CM

SPRING for 31CMA cover

1шт.

0126cm

O126CM

SCREW for 31CMA cover

1шт.

0127cm

O127CM

WASHER steel, for 31CM cover

1шт.

0128cm

O128CM

NUT for 31CM cover

1шт.

22k2

22K2

NUT elastic

1шт.

1914

1914

WASHER lock

1шт.

TERMINAL No. 14

1шт.

0131cm

O131CM

SHIM rotor shaft, .010" thick

1шт.

0132cm

O132CM

SHIM rotor shaft, .005" thick

1шт.

0138cm

O138CM

POINT safety

1шт.

0140cm

O140CM

SPRING take off, secondary

1шт.

0145cm

O145CM

WASHER end play

1шт.

0147cm

O147CM

RIVET steel, for cork washer (Used with 074CM and 084CM washers)

6шт.

0155cm

O155CM

CABLE cup (Same as 04449AB1)

4шт.

0159cm

O159CM

PIN fulcrum (Used with 15CMA-2 breaker box assembly)

1шт.

0218jm

O218JM

TERMINAL (Coil to breaker box wire)

1шт.

0370jm

O370JM

BEARING rotor shaft bearing (New departure #20202-E)

1шт.

10cma

10CMA

ROTOR ASSEMBLY without gear

1шт.

KEY Woodruff, No. 207

1шт.

KEY Woodruff, No. 404

1шт.

089cm

O89CM

KEY

1шт.

13cma

13CMA

DISC distributor

1шт.

15cma-1

15CMA-1

BREAKER BOX ASSEMBLY

1шт.

052cm

O52CM

PIN fulcrum

1шт.

KEY cotter, 1/16"

1шт.

15cma-2

15CMA-2

BREAKER BOX ASSEMBLY

1шт.

0159cm

O159CM

PIN fulcrum

1шт.

KEY cotter, 1/16"

1шт.

16cma

16CMA

END CAP ASSEMBLY

1шт.

073cm

O73CM

RING cork

1шт.

074cm

O74CM

WASHER

1шт.

SCREW fillister head, No. 10 - 24 x 7/8"

6шт.

WASHER lock, No. 10

6шт.

0147cm

O147CM

RIVET

3шт.

17cma

17CMA

BREAKER BAR ASSEMBLY (Use 118JMA)

1шт.

18cma

18CMA

IMPULSE HUB ASSEMBLY

1шт.

19cma

19CMA

CONDENSER ASSEMBLY

1шт.

SCREW fillister head, No. 10 - 24 x 3/8"

2шт.

WASHER lock, No. 10

2шт.

20cma

20CMA

COIL ASSEMBLY with 0138CM safety point and 0140CM spring

1шт.

21cma

21CMA

FRAME magneto, with distributor bearing

1шт.

082cm

O82CM

RING cork

1шт.

084cm

O84CM

WASHER flat

1шт.

0147cm

O147CM

RIVET

3шт.

26cma

26CMA

BLOCK distributor

1шт.

SCREW fillister head, No. 10 - 24 x 3/4"

4шт.

WASHER lock, No. 10

4шт.

30cma

30CMA

IMPULSE COUPLING ASSEMBLY (Consists of: 18CMA, 0113CM and 091CM)

1шт.

31cma

31CMA

COVER top, with short circuiting terminal (See 3CM)

1шт.

32cma

32CMA

BRUSH and SPRING for distributor block (Use 011CM and 012CM)

1шт.

33cma

33CMA

BRUSH AND SPRING for distributor disc

1шт.

34cma

34CMA

COVER breaker box, for 20° (For LP-gas tractors)

1шт.

35cma

35CMA

COVER breaker box, for 30° (Refular for Case tractors)

1шт.

36cma

36CMA

SHUNT ASSEMBLY

1шт.

SCREW fillister head, No. 6 - 32 x 1/4"

1шт.

WASHER lock, No. 6

1шт.

118jma

118JMA

BREAKER BAR ASSEMBLY (See 149CMA)

1шт.

1506

1506

LAMP

WASHER lock

1шт.

059cm

O59CM

WASHER brass

1шт.

055cm

O55CM

NUT

1шт.

SCREW fillister head, No. 6 - 40 x 3/8"

1шт.

WASHER lock, No. 6

1шт.

149cma

149CMA

CONTACT

KIT point (Consists of: Cam, Cam Ring, Breaker Bar Assembly, Stationary Screw Point, Nut and Wrench, Breaker Bar Spring Screw, Nut , Spacing and lockwashers and directions for installation.)

1шт.
