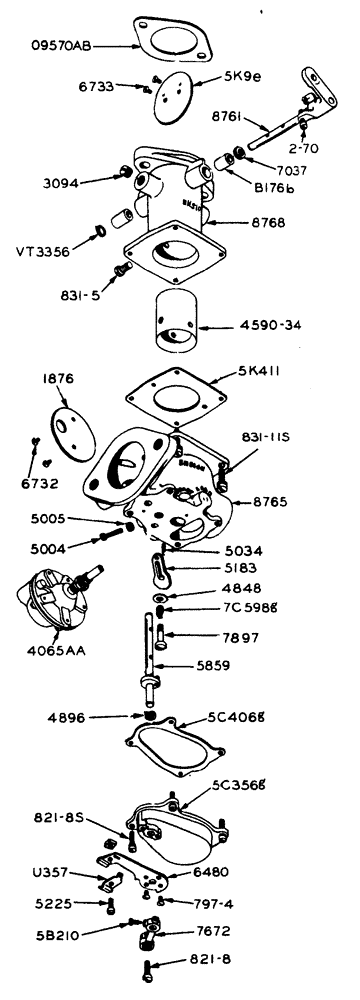

Запчасти Case IH LA-SERIES (034) - PARTS FOR 4000AA ENSIGN CARBURETOR FOR LP-GAS 1-1/2" MODEL KGL - THEIR NO. 8817 (03) - FUEL SYSTEM

5k9e

5K9E

DISC throttle

1шт.

2-70

2-70

KEY

SCREW adjusting, throttle stop

2шт.

b176b

B176B

BUSHING bearing, throttle

2шт.

5b210

5B210

SCREW set, "B" throttle shaft and choke lever

2шт.

5c356g

5C356G

PLATE cover

1шт.

u357

U357

CLAMP tube, choke

1шт.

5c406g

5C406G

GASKET cover plate

1шт.

Part of Service Parts Kit P/N 2338

1шт.

5k411

5K411

GASKET air horn

1шт.

Part of Service Parts Kit P/N 2338

1шт.

7c598g

7C598G

SPRING pressure

1шт.

797-4

797-4

SCREW tube support, choke

2шт.

821-8

821-8

HOSE

SCREW swivel

1шт.

821-8s

821-8S

SCREW cover plate

4шт.

Part of Service Parts Kit P/N 2338

1шт.

831-5

831-5

SCREW set, venturi

1шт.

831-11s

831-11S

SCREW air horn

4шт.

Part of Service Parts Kit P/N 2338

1шт.

1876

1876

HYDRAULIC HOSE

DISC choke

1шт.

Part of Service Parts Kit P/N 2338

1шт.

2338

2338

KIT service parts (Includes P/N's: 5C406G, 5K411, 821-8S, 831-11S, 1876, 4896, 5034, 5859, 6732, 6733, 7037, 8761 and 09570AB)

1шт.

3094

3094

PLUG pipe, 1/8"

1шт.

4590-34

4590-34

VENTURI bore must be specified

1шт.

4848

4848

THREADED TIE-ROD

WASHER retaining, spring

1шт.

4848

4848

THREADED TIE-ROD

WASHER dust, felt, choke

1шт.

Part of Service Parts Kit P/N 2338

1шт.

5004

5004

COVER

SCREW adjusting, starting

1шт.

5005

5005

NUT lock, adjusting screw, starting

1шт.

5034

5034

SPRING latching

1шт.

Part of Service Parts Kit P/N 2338

1шт.

5183

5183

LEVER valve

1шт.

5225

5225

SPEAKER

SCREW and NUT tube clamp, choke

1шт.

5859

5859

CHOKE SHAFT and CAM LEVER ASSEMBLY

1шт.

Part of Service Parts Kit P/N 2338

1шт.

6480

6480

CHOKE TUBE SUPPORT ASSEMBLY

1шт.

6732

6732

SCREW choke shaft

2шт.

Part of Service Parts Kit P/N 2338

1шт.

6733

6733

SCREW throttle shaft

2шт.

Part of Service Parts Kit P/N 2338

1шт.

7037

7037

TESTER

WASHER dust

1шт.

Part of Service Parts Kit P/N 2338

1шт.

7672

7672

KIT

CHOKE LEVER ASSEMBLY

1шт.

7897

7897

STUD

SCREW pivot, valve lever

1шт.

8761

8761

CAP

THROTTLE SHAFT AND LEVER ASSEMBLY

1шт.

Part of Service Parts Kit P/N 2338

1шт.

8765

8765

HORN air, nozzle and balance tube nozzle assembly

1шт.

8768

8768

TUBE throttle, partial assembly

1шт.

09570ab

1342816C1

GASKET

carburetor to inlet manifold

1шт.

Part of Service Parts Kit P/N 2338

1шт.

vt3356

VT3356

PLUG Welch, 1/2"

1шт.
