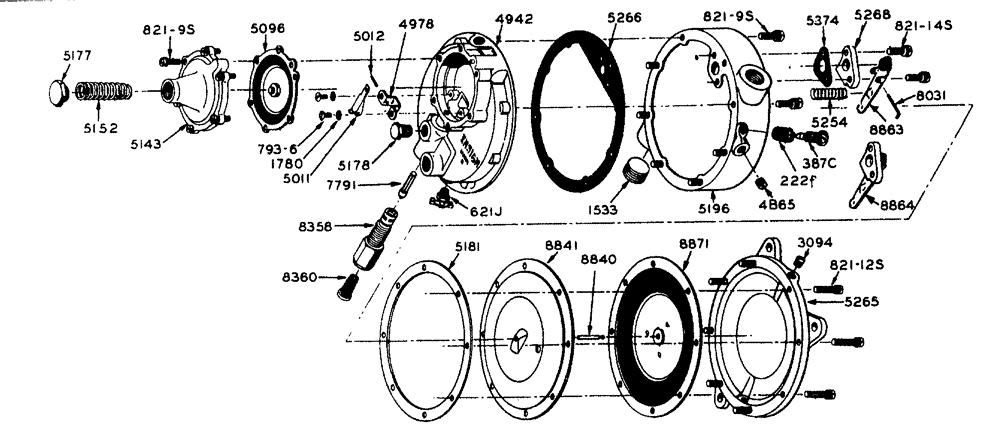

Запчасти Case IH LA-SERIES (032) - PARTS FOR 4001AA REGULATOR (03) - FUEL SYSTEM

4b65

4B65

SCREW bleed

1шт.

222f

222F

RETAINER adjusting screw, idle

1шт.

Part of Service Parts Kit P/N 2519

1шт.

387c

387C

SCREW adjusting, idle

1шт.

621j

621J

COCK drain

1шт.

793-6

793-6

SCREW for 4978 pivot support

2шт.

821-9s

821-9S

SCREW 7 used for 5196 body and 6 used for 5143 cover

13шт.

Part of Service Parts Kit P/N 2519

1шт.

821-12s

821-12S

SCREW for 5265 support plate

8шт.

Part of Service Parts Kit P/N 2519

1шт.

821-14s

821-14S

SCREW for 8864 main valve

2шт.

Part of Service Parts Kit P/N 2519

1шт.

1533

1533

PLUG counter sunk, 3/4"

1шт.

1780

1780

LAMP

WASHER lock, for 793-6 pivot support screws

2шт.

1816

1816

KIT service parts, for 4001AA regulator (Includes P/N's: 5096, 5181, 5248, 5254, 5261, 5266, 5268, 5362, 5374, 7195 and 7791) (Prior to regulator No. 48372)

1шт.

2519

2519

KIT service parts, for 4001AA regulator (Includes P/N's: 222F, 821-9S, 821-12S, 821-14S, 5096, 5181, 5254, 5266, 5374, 7791, 8360, 8864 and 8871) (Regulator No. 48372 and after)

1шт.

3094

3094

PLUG pipe, 1/8"

1шт.

4942

4942

BODY vaporizer

1шт.

4978

4978

GUARD

SUPPORT pivot

1шт.

5011

5011

LEVER valve

1шт.

5012

5012

PIVOT valve lever

1шт.

5096

5096

JACK

DIAPHRAGM ASSEMBLY pressure regulator

1шт.

Part of Service Parts Kit P/N 2519

1шт.

Part of Service Parts Kit P/N 1816

1шт.

5143

5143

KIT

COVER pressure regulator

1шт.

5152

5152

GEAR

SPRING pressure regulator

1шт.

5177

5177

RETAINER spring, pressure regulator

1шт.

5178

5178

PLUG pipe, 1/4"

1шт.

5181

5181

BOLT,V, 3/4" - 10 x 4", Gr 8

GASKET partition plate

1шт.

Part of Service Parts Kit P/N 2519

1шт.

Part of Service Parts Kit P/N 1816

1шт.

5196

5196

BODY fuel regulator

1шт.

5248

5248

PARTITION PLATE ASSEMBLY

1шт.

Part of Service Parts Kit P/N 1816

1шт.

5254

5254

BOLT

SPRING fuel regulator

1шт.

Part of Service Parts Kit P/N 2519

1шт.

Part of Service Parts Kit P/N 1816

1шт.

5261

7773575

HARDWARE

DIAPHRAGM ASSEMBLY

1шт.

Part of Service Parts Kit P/N 1816

1шт.

5265

5265

SPINDLE

PLATE support

1шт.

5266

5266

HYDRAULIC HOSE

GASKET vaporizer body

1шт.

Part of Service Parts Kit P/N 2519

1шт.

Part of Service Parts Kit P/N 1816

1шт.

5268

5268

RETAINER

SEAT valve

1шт.

Part of Service Parts Kit P/N 1816

1шт.

5362

5362

HOSE

VALVE and LEVER ASSEMBLY

1шт.

Part of Service Parts Kit P/N 1816

1шт.

5374

5374

GASKET main valve

1шт.

Part of Service Parts Kit P/N 2519

1шт.

Part of Service Parts Kit P/N 1816

1шт.

7195

7195

CYLINDER END CAP

GASKET strainer cage

2шт.

Part of Service Parts Kit P/N 1816

1шт.

7791

7791

VALVE needle

1шт.

Part of Service Parts Kit P/N 2519

1шт.

Part of Service Parts Kit P/N 1816

1шт.

8031

8031

RIGID TUBE

PIN pivot

1шт.

8358

8358

INLET fuel, valve seat and strainer assembly

1шт.

8360

8360

INLET fuel, strainer assembly

1шт.

Part of Service Parts Kit P/N 2519

1шт.

8840

8840

PIN push

1шт.

8841

8841

SPINDLE

PLATE partition

1шт.

8863

8863

LEVER valve

1шт.

8864

8864

MAIN VALVE ASSEMBLY

1шт.

Part of Service Parts Kit P/N 2519

1шт.

8871

8871

TUBE

FUEL REGULATOR DIAPHRAGM ASSEMBLY

1шт.

Part of Service Parts Kit P/N 2519

1шт.
