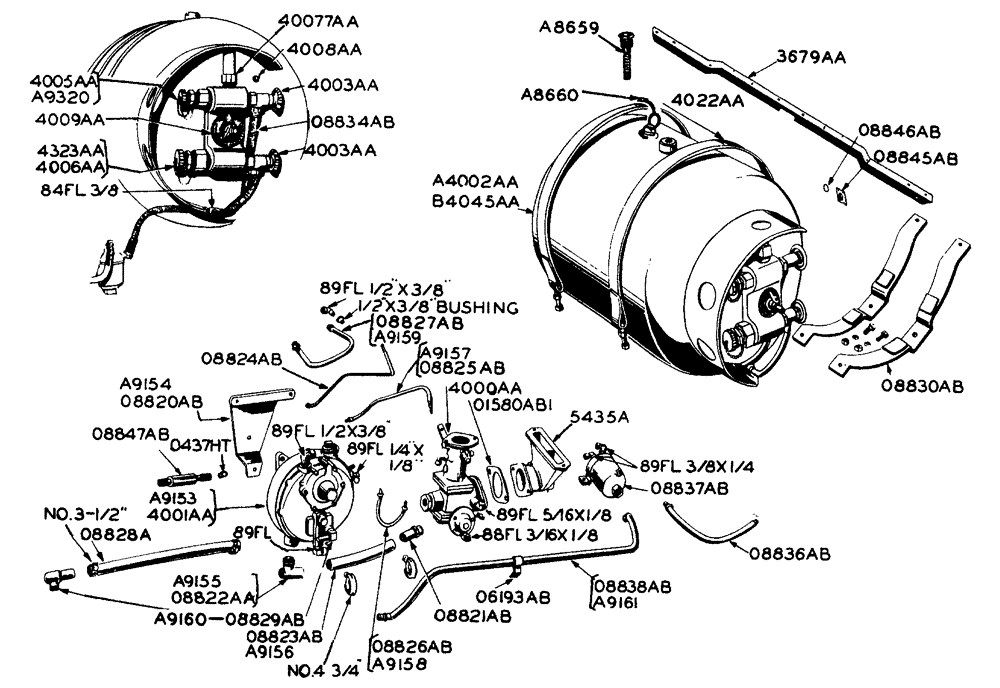

Запчасти Case IH LA-SERIES (030) - LP-GAS EQUIPMENT (03) - FUEL SYSTEM

a8659

A8659

VALVE safety relief, on top of fuel tank (See 4007AA)

1шт.

a8660

A8660

CAP safety relief valve, fuel tank

1шт.

a9320

A9320

VALVE, vapor return, fuel tank (See 4005AA)

1шт.

3679aa

3679AA

SUPPORT rear, fuel tank

1шт.

a4002aa

A4002AA

TANK fuel, with valves and gauge assembly, relief valve on end (Use B4045AA)

1шт.

4003aa

A57245

VALVE

liquid and vapor outlet, fuel tank

2шт.

4005aa

4005AA

VALVE, vapor return, fuel tank (Can use A9320)

1шт.

4006aa

4006AA

VALVE double check filler, 1-1/4" pipe thread, for B4045AA fuel tank (See 4323AA)

1шт.

4007aa

4007AA

VALVE safety relief, fuel tank (See A8659)

1шт.

ELBOW street, safety relief valve, fuel tank, 3/4", when valve is used in horizontal position

1шт.

4008aa

4008AA

GAUGE fixed liquid level, fuel tank

1шт.

4009aa

4009AA

ROTOGAGE fuel tank, with 13-1/8" dip tube

1шт.

4022aa

4022AA

STRAP fuel tank, with tee bolts

2шт.

NUT light, hex, fuel tank strap, N.F. thread, 1/2"

6шт.

b4045aa

B4045AA

TANK fuel, with valves and gauge assembly, relief valve on top

1шт.

4323aa

4323AA

VALVE double check filler, 3/4" pipe thread, for B4045AA fuel tank (See 4006AA)

1шт.

08830ab

O8830AB

CRADLE fuel tank

2шт.

SCREW cap, hex head, fuel tank cradle, N.F. thread, 1/2" x 1-1/2", with nut and lock washer

2шт.

08833ab

O8833AB

ANGLE front support, fuel tank

1шт.

SCREW cap, hex head, fuel tank front support angle, N.F. thread, 3/8" x 1", with nut and lock washer

3шт.

08845ab

O8845AB

ADAPTER rotogage, fuel tank

1шт.

SCREW machine, round head, fuel tank rotogage adapter, N.F. thread, 1/4" x 3/4", with lock washer

4шт.

08846ab

O8846AB

GASKET rotogage adapter, fuel tank

1шт.

4065aa

4065AA

ECONOMIZER

1шт.

08824ab

O8824AB

TUBE, Serial Range: economizer-manifold

1шт.

UNION Imperial No. 88FL, 3/16" tube size x 1/8" pipe thread, connects, Serial Range: tube-economizer

1шт.

ELBOW Imperial No. 89FL, economizer, 3/16" tube size x 1/8" pipe thread, connects, Serial Range: tube-manifold

1шт.

a915

A9156

HOSE,0.75" ID x 4.50"

connects carburetor to A9153 LP-gas regulator 0.75" ID x 4.50"

1шт.

CLAMP hose, No. 4-3/4, LP-gas carburetor

2шт.

a9157

A9157

SPARE PART

TUBE carburetor to A9153 LP-gas regulator, balance connection

1шт.

a9158

A9158

SPRING

TUBE carburetor to A9153 LP-gas regulator, idle connection

1шт.

5435a

5435A

ADAPTER LP-gas carburetor

1шт.

BOLT hex head, LP-gas carburetor adapter, 3/8" x 1", N.C. thread, with lock washer

2шт.

4000aa

4000AA

CARBURETOR LP-gas, 1-1/2", model KGL, Ensign No. 8817

1шт.

ELBOW Imperial No. 89FL, LP-gas carburetor, 1/4" tube size x 1/8" pipe thread

1шт.

ELBOW Imperial No. 89FL, LP-gas carburetor, 5/16" tube size x 1/8" pipe thread

1шт.

UNION Imperial No. 88FL, LP-gas carburetor, 3/16" tube size x 1/8" thread

1шт.

01579ab

O1579AB

STUD LP-gas carburetor to inlet manifold

2шт.

NUT light, hex, LP-gas carburetor to inlet manifold stud, N.F. thread, 3/8", with lock washer

2шт.

01580ab1

A26555

GASKET

adapter, LP-gas carburetor

1шт.

01581ab

O1581AB

STUD in LP-gas carburetor adapter for air cleaner clamp

1шт.

04589ab

O4589AB

CONTROL choke, flexible, LP-gas carburetor

1шт.

08821ab

O8821AB

NIPPLE connects 08823AB hose to LP-gas carburetor

1шт.

08823ab

O8823AB

HOSE connects 4001AA regulator to LP-gas carburetor

1шт.

CLAMP hose, No.4-3/4, LP-gas carburetor

2шт.

08825ab

O8825AB

TUBE 4001AA regulator balance connection to LP-gas carburetor

1шт.

ELBOW Imperial No. 89FL, LP-gas carburetor tube, 5/16" tube size x 1/8" pipe thread

2шт.

08826ab

O8826AB

TUBE 4001AA regulator idle connection to LP-gas carburetor

1шт.

ELBOW Imperial No. 89FL, LP-gas carburetor tube, 1/4" tube size x 1/8" pipe thread

2шт.

09570ab

1342816C1

GASKET

LP-gas carburetor to inlet manifold

1шт.

09571ab

O9571AB

LOOM for 04589AB LP-gas caburetor choke control

1шт.

a9153

A9153

REGULATOR LP gas, Ensign No 8434 (See 4001AA)

1шт.

BUSHING pipe reducer, LP-gas regulator, Serial Range: 3/8"-1/8"

1шт.

ELBOW street, LP-gas regulator, 3/8"

1шт.

a9154

A9154

PLATE support, regulator (Use with A9153 LP-gas regulator)

1шт.

BOLT hex, support plate, LP-gas regulator, N.F. thread fin, 5/16" x 1-1/4", with nut and lock washer

3шт.

BOLT hex, support plate, LP-gas regulator, N.C. thread fin, 3/8" x 3/4", with lock washer

3шт.

a9155

A9155

90 ELBOW

connects A9156 hose to A9153 LP-gas regulator

1шт.

a9159

A9159

TUBE water inlet, cylinder head to A9153 LP-gas regulator

1шт.

a9160

A9160

SPARE PART

HOSE cylinder inlet elbow to A9153 LP-gas regulator

1шт.

CLAMP hose, No. 3-1/2, for hose from cylinder inlet elbow to A9153 LP-gas regulator

2шт.

a9161

A9161

TUBE liquid filter to A9153 LP-gas regulator

1шт.

ELBOW Imperial No. 89FL, 3/8" tube x 1/4" pipe thread, for tube from liquid filter to A9153 LP-gas regulator

2шт.

4001aa

4001AA

REGULATOR LP-gas, Ensign No. 8793

1шт.

06193ab

O6193AB

CLIP LP-gas regulator, for 08838AB tube

1шт.

07675ab

O7675AB

LOOM for 08838AB tube

1шт.

08820ab

O8820AB

SUPPORT 4001AA LP-gas regulator (Prior to Tractor No. 5509822) (See 08847AB)

1шт.

SCREW cap, hex head, LP-gas regulator support, N.F. thread, 5/16" x 1", with nut and lock washer

3шт.

SCREW cap, hex head, LP-gas regulator support, N.C. thread, 3/8" x 3/4", with lock washer

3шт.

08822ab

O8822AB

ELBOW connects 08823AB hose to 4001AA LP-gas regulator

1шт.

08827ab

O8827AB

TUBE water inlet, cylinder head to 4001AA LP-gas regulator

1шт.

ELBOW Imperial No. 89FL, 1/2" tube size x 3/8" pipe thread, for water inlet tube from cylinder head to 4001AA LP-gas regulator

2шт.

BUSHING standard pipe reducing in cylinder head, 1/2" x 3/8", for water inlet tube from cylinder head to 4001AA LP-gas regulator

1шт.

08828ab

O8828AB

HOSE 4001AA LP-gas regulator to cylinder inlet elbow

1шт.

CLAMP hose, No. 3-1/2, for hose from 4001AA LP-gas regulator to cylinder inlet elbow

2шт.

08829ab

A27489

ELBOW UNION

ELBOW water hose, connects LP-gas regulator to cylinder block

2шт.

08838ab

O8838AB

TUBE liquid filter to 4001AA LP-gas regulator

1шт.

ELBOW Imperial No. 89FL, 3/8" tube size x 1/4" pipe thread, for tube connecting liquid filter to 4001AA LP-gas regulator

2шт.

08847ab

O8847AB

STUD 4001AA LP-gas regulator (Tractor No. 5509822 and after) (See O8820AB)

3шт.

NUT light, hex, N.F. thread, 5/16", with lock washer, for 4001AA LP-gas regulator stud

3шт.

0437ht

O437HT

SPACER A9153 LP-gas regulator support plate

3шт.

05592a

O5592A

NUT flared tube short, LP-gas liquid filter, 3/8", for O8834AB and O8835AB tubes

2шт.

06193ab

O6193AB

CLIP for 08838AB LP-gas liquid filter tube

1шт.

07659ab

O7659AB

LOOM for 08834AB tube

1шт.

07675ab

O7675AB

LOOM for 08838AB tube

1шт.

08834ab

O8834AB

TUBE vapor outlet valve to tee (Consists of tube with 1 - O5592A nut)

1шт.

08835ab

O8835AB

TUBE liquid outlet valve to tee (Consists of tube with 1 - O5592A nut)

1шт.

08836ab

O8836AB

TUBE from No. 84FL tee to LP-gas liquid filter

1шт.

TEE Imperial No. 84FL, 3/8" tube size, for tube to LP-gas liquid filter

1шт.

08837ab

O8837AB

FILTER LP-gas liquid, Ensign No. 6257)

1шт.

ELBOW Imperial No. 89FL, 3/8" tube size x 1/4" pipe thread, for LP-gas liquid filter

2шт.

SCREW cap, hex head, LP-gas liquid filter, N.F. thread, 5/16" x 1", with nut and lock washer

2шт.

08840ab

O8840AB

LOOM for O8835AB tube

1шт.

09089ab

O9089AB

LOOM for O8836AB tube

1шт.
