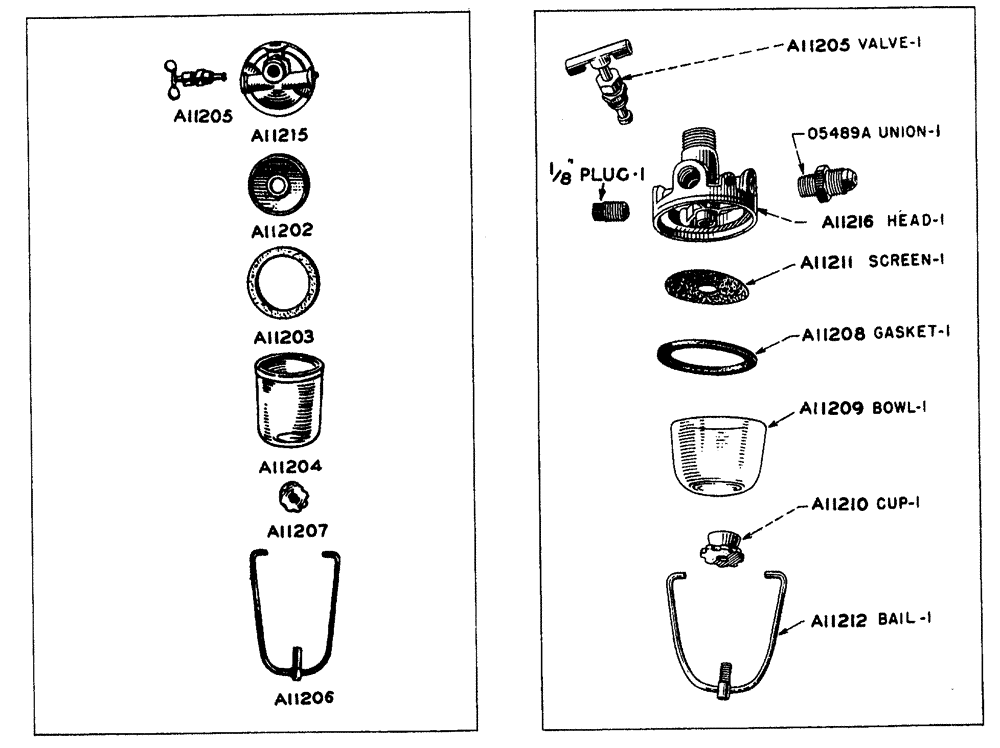

Запчасти Case IH LA-SERIES (029) - 01933AB FUEL STRAINER PRIOR TO TRACTOR NO. 4600027 (03) - FUEL SYSTEM

a11202

13194D

STRAINER ASSY.

SCREEN ASSEMBLY

1шт.

a11203

A11203

GASKET

cork

1шт.

a11204

357957R1

BOWL

glass

1шт.

a11205

50062D

VALVE

ASSEMBLY needle

1шт.

a11206

A11206

BAIL

ASSEMBLY

1шт.

a11207

A11207

NUT

and CUP ASSEMBLY

1шт.

a11215

A11215

BODY

strainer

1шт.

05489a

222-806

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/8" NPT

UNION flared tube, 5/16" x 1/8"

1шт.

a11205

50062D

VALVE

ASSEMBLY needle

1шт.

a11208

A11208

GASKET

cork

1шт.

a11209

357958R1

BOWL

glass

1шт.

a11210

50061D

NUT

CUP and NUT ASSEMBLY

1шт.

a11211

49923D

FILTER SCREEN

SCREEN, FILTER

1шт.

a11212

49947D

COLLAR CLAMP

BAIL ASSEMBLY

1шт.

a11216

A11216

HEAD, strainer

1шт.

PLUG pipe, square head, 1/8"

1шт.

05489a

222-806

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/8" NPT

UNION flared tube, 5/16" x 1/8"

1шт.
