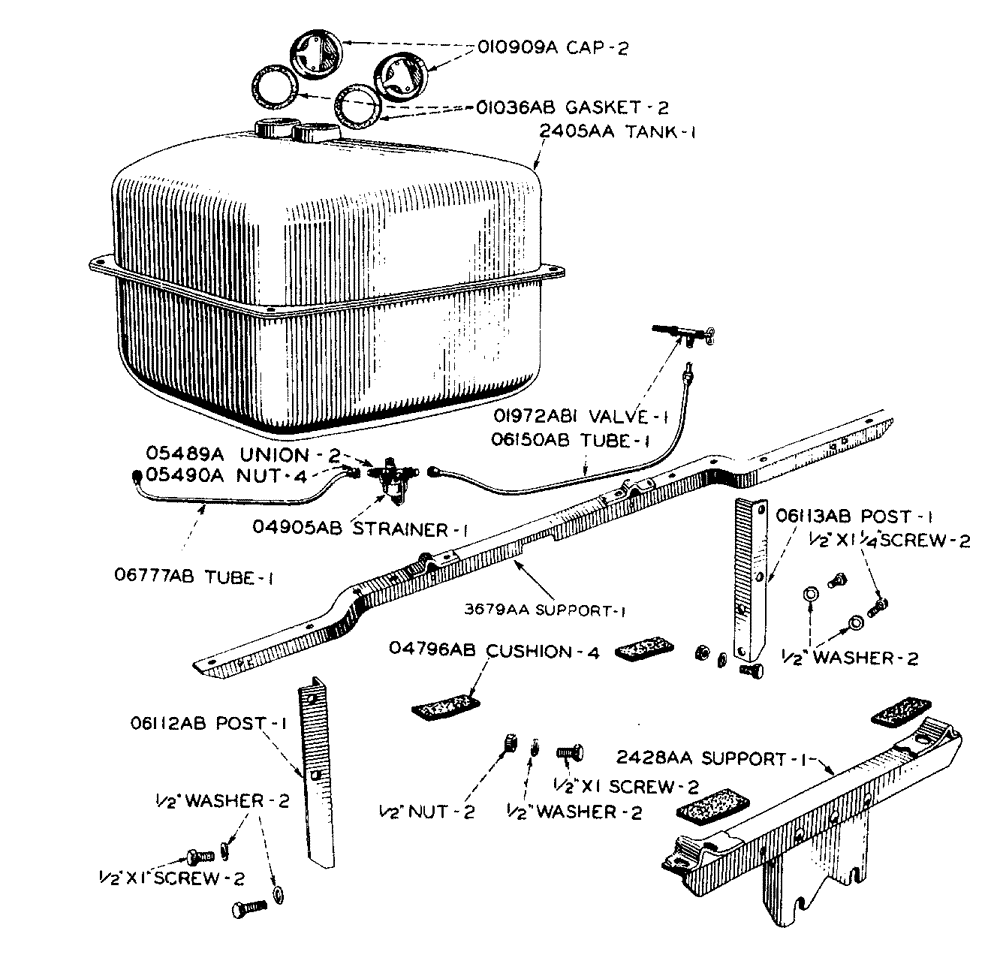

Запчасти Case IH LA-SERIES (028) - TWO COMPARTMENT TANK - LOW COST FUEL (03) - FUEL SYSTEM

05489a

222-806

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/8" NPT

UNION flared tube, for 06150AB and 06777AB tubes, 5/16" x 1/8"

2шт.

05490a

222-703

TUBE NUT

NUT flared tube, short, for 06150AB and 06777AB tubes, 5/16"

4шт.

01036ab

A31101

GASKET

filler cap, fuel tank

2шт.

01933ab

A26615

STRAINER ELEMENT

STRAINER fuel (Use 04905AB with 1/8" square head pipe plug)

1шт.

01972ab1

O1972AB1

VALVE needle

1шт.

02375ab

O2375AB

TUBE inlet, for 01933AB strainer

1шт.

04796ab

A26826

CUSHION

fuel tank

4шт.

04905ab

A31102

STRAINER ELEMENT

STRAINER fuel

1шт.

PLUG pipe, square head, 1/8"

1шт.

06112ab

O6112AB

POST R.H. support, fuel tank

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1"

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/4"

1шт.

NUT light, hex, N.F. thread, 1/2"

2шт.

WASHER lock, standard, 1/2"

2шт.

06113ab

O6113AB

POST L.H. support, fuel tank

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1"

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/4"

1шт.

NUT light, hex, N.F. thread, 1/2"

2шт.

WASHER lock, standard, 1/2"

2шт.

06150ab

O6150AB

TUBE needle, Serial Range: valve-stainer

1шт.

06777ab

O6777AB

TUBE carburetor to fuel strainer

1шт.

010909a

A26400

CAP

filler, fuel tank

2шт.

2405aa

2405AA

TANK fuel, with cap

1шт.

2428aa

2428AA

SUPPORT front, fuel tank

1шт.

SCREW cap, hex head, N.F. thread, 5/8" x 2-1/2", with hex nut

2шт.

a2750aa

A2750AA

SUPPORT rear, fuel tank (Prior to tractor No. 5208165)

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1", with nut and lock washer

2шт.

3679aa

3679AA

SUPPORT rear, fuel tank, (Tractor No. 5208165 and after)

1шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1"

4шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/4"

4шт.

NUT light, hex, N.F. thread, 3/8"

4шт.

NUT light, hex, N.F. thread, 1/2"

4шт.

WASHER lock, standard, 3/8"

4шт.

WASHER plain, 3/8"

4шт.

WASHER lock, standard, 1/2"

4шт.
