Запчасти Case IH LA-SERIES (027) - SINGLE COMPARTMENT TANK - GASOLINE (03) - FUEL SYSTEM

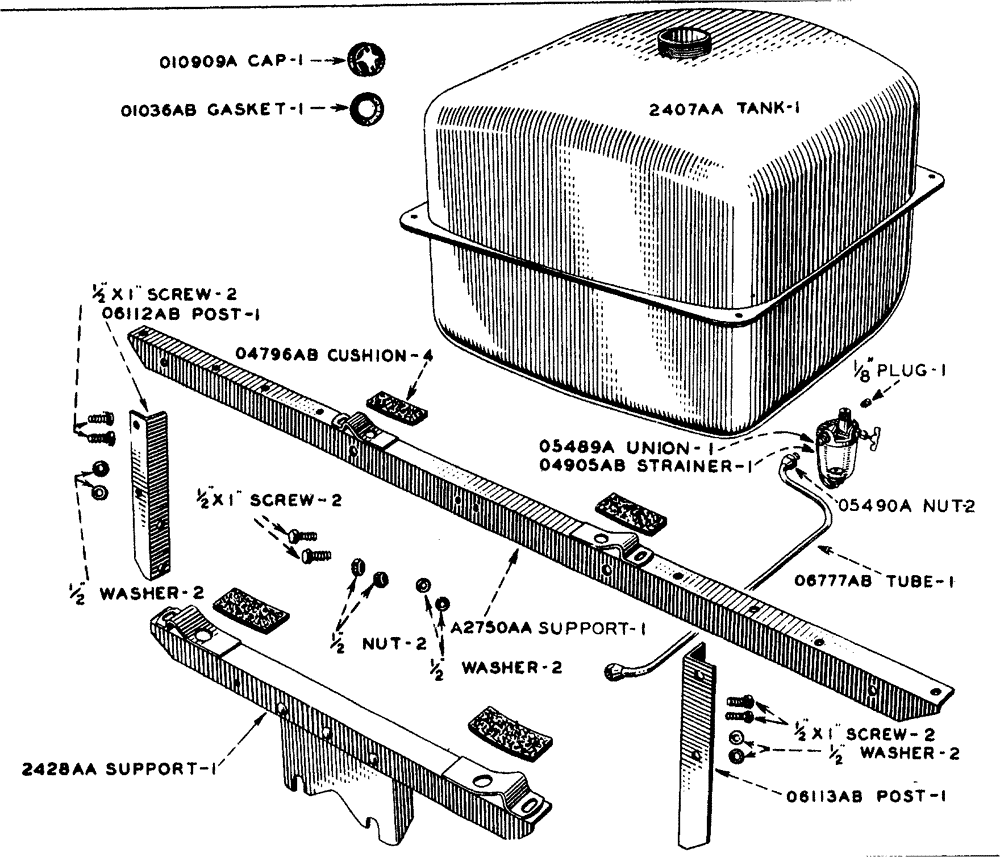

Схема запчастей Case IH LA-SERIES - (027) - SINGLE COMPARTMENT TANK - GASOLINE (03) - FUEL SYSTEM
04796ab
2428aa
06113ab
01036ab
06112ab
010909a
2407aa
a2750aa
06777ab
05489a
04905ab
05490a

Артикул

Название

Примечание

Количество

05489a

222-806

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/8" NPT

UNION flared tube, for 06777AB tube, 5/16" x 1/8"

1шт.

05490a

222-703

TUBE NUT

NUT flared tube, short, for 06777AB tube, 5/16"

2шт.

01036ab

A31101

GASKET

filler cap, fuel tank

1шт.

01933ab

A26615

STRAINER ELEMENT

STRAINER fuel (Use 04905AB with 1/8" square head pipe plug)

1шт.

02375ab

O2375AB

TUBE inlet, for 01933AB strainer

1шт.

04796ab

A26826

CUSHION

fuel tank

4шт.

04905ab

A31102

STRAINER ELEMENT

STRAINER fuel

1шт.

PLUG pipe, square head, 1/8"

1шт.

06112ab

O6112AB

POST R.H. support, fuel tank

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1", with lock washer

2шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/4", with hex nut

1шт.

06113ab

O6113AB

POST L.H. support, fuel tank

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1", with lock washer

2шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/4", with hex nut

1шт.

06777ab

O6777AB

TUBE carburetor to fuel strainer

1шт.

010909a

A26400

CAP

fuel tank filler

1шт.

2407aa

2407AA

TANK fuel

1шт.

2428aa

2428AA

SUPPORT front, fuel tank

1шт.

a2750aa

A2750AA

SUPPORT rear, fuel tank (Prior to tractor No. 5208165)

1шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1", with nut and lock washer

2шт.

3679aa

3679AA

SUPPORT rear, fuel tank (Tractor No. 5208165 and after) (can use 4629AA)

1шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1", with hex nut and lock washer

4шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/4", with hex nut and lock washer

4шт.

WASHER plain, 3/8"

4шт.

4629aa

4629AA

SUPPORT rear, fuel tank

1шт.

SCREW cap, hex head, N.F. thread, 3/8" x 1", with nut and lock washer

8шт.

SCREW cap, hex head, N.F. thread, 1/2" x 1-1/4", with nut and lock washer

2шт.

Выбрано товаров: 27
