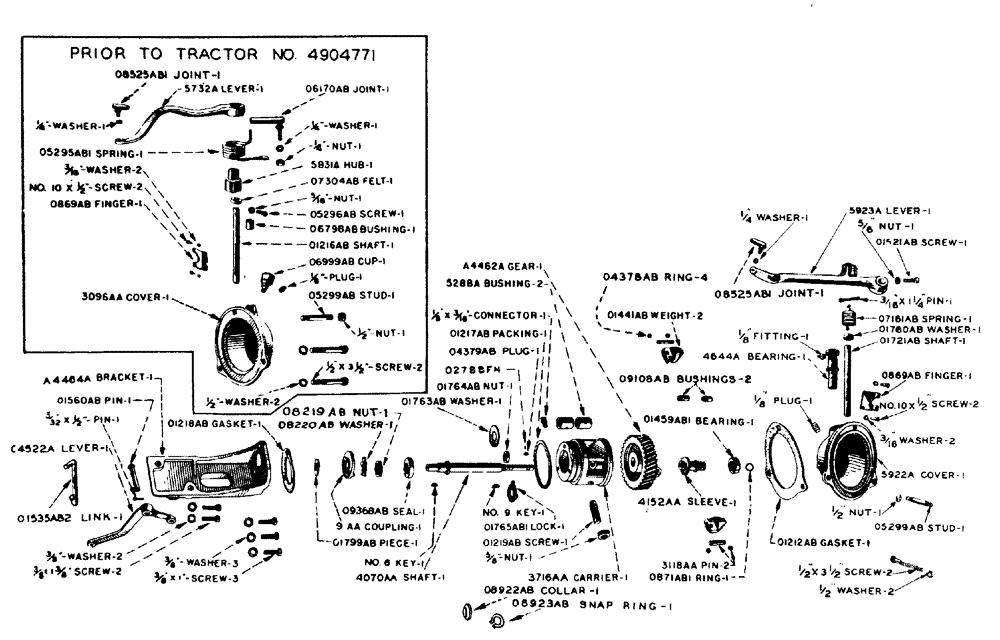

Запчасти Case IH LA-SERIES (011) - GOVERNOR (03) - FUEL SYSTEM

a4362a

A28576

SLEEVE

governor (Use 4152AA)

1шт.

a4461a

A4461A

COVER housing, governor (Use A1428AA)

1шт.

a4462a

A4462A

GEAR governor

1шт.

a4463a

A4463A

CARRIER bearing, governor (Use 3716AA)

1шт.

CONNECTOR male, governor, Dole A3, 3/16" tube size x 1/8" pipe thread)

1шт.

4470a

4470A

housing cover, governor (Prior to tractor No. 4608405) (See O6798AB)

2шт.

4644a

4644A

BEARING shaft, governor (Tractor No. 4904771 and after)

1шт.

FITTING straight lubricating, governor, Lincoln No. 5000, 1/8"

1шт.

5288a

5288A

BUSHING bearing carrier, governor

2шт.

5732a

5732A

LEVER governor (Prior to tractor No. 4904771) (See 5923A)

1шт.

5830a

5830A

COVER housing, governor (Use 3096AA)

1шт.

5831a

5831A

HUB lever, governor (Tractor No. 4608405 to tractor No. 4904771) (See O5294AB)

1шт.

5922a

5922A

COVER housing, governor (Tractor No. 4904771 and after) (See A1428AA and 3096AA)

1шт.

SCREW hex head cap, governor, N.C. thread, 1/2" x 3-1/2"

2шт.

WASHER lock, standard, governor, 1/2"

2шт.

PLUG pipe, square head, 1/8"

1шт.

5923a

5923A

LEVER governor (Tractor No. 4904771 and after) (See 5732A)

1шт.

6116a

A28576

SLEEVE

governor (Use 4152AA)

1шт.

0869ab

O869AB

FINGER governor

1шт.

SCREW round head machine, governor, N.F. thread, No. 10 x 1/2"

2шт.

WASHER lock, standard, governor, 3/16"

2шт.

0871ab1

O871AB1

RING snap, governor bearing

1шт.

01212ab

A26483

GASKET

housing cover, governor

1шт.

01216ab

O1216AB

SHAFT lever, governor (Prior to tractor No. 4904771) (See O1721AB)

1шт.

01217ab

O1217AB

PACKING bearing carrier, governor

1шт.

01218ab

O1218AB

GASKET bearing carrier, governor

1шт.

01219ab

O1219AB

SCREW bearing carrier, governor

1шт.

NUT hex, jam, governor, N.C. thread, 5/8"

1шт.

01441ab

A26531

WEIGHT

governor

2шт.

01459ab1

A26534

THRUST BEARING,0.747" ID x 40552" OD x 0.5625"

BEARING thrust, governor shaft (Nice No. 6071)

1шт.

01521ab

O1521AB

SCREW set, governor lever (Tractor No. 4904771 and after) (See O5296AB)

1шт.

NUT hex, jam, governor, N.C. thread, 5/16"

1шт.

01721ab

O1721AB

SHAFT lever, governor (Tractor No. 4904771 and after) (See O1216AB)

1шт.

01760ab

A26587

WASHER

felt, shaft bearing, governor (Tractor No. 4904771 and after) (See 07304AB)

1шт.

01763ab

O1763AB

WASHER thrust, gear, governor

1шт.

01764ab

O1764AB

NUT shaft, governor

1шт.

01765ab1

O1765AB1

LOCK nut, shaft, governor

1шт.

04378ab

O4378AB

RING snap, weight pin, governor

4шт.

04379ab

O4379AB

PLUG shaft, governor

1шт.

04381ab

O4381AB

SEAL oil, shaft, governor (Prior to tractor No. 5521190) (See 09368AB)

1шт.

05294ab

O5294AB

HUB lever, governor (Prior to tractor No. 4608405) (See 5831A)

1шт.

05295ab1

O5295AB1

SPRING torsion, governor (Prior to tractor No. 4904771) (See 07161AB)

1шт.

PIN cotter, 1/16" x 5/8"

1шт.

05296ab

O5296AB

SCREW set, lever, governor (Prior to tractor No. 4904771) (See 01521AB)

1шт.

NUT hex, jam, governor, N.C. thread, 5/16"

1шт.

05299ab

O5299AB

STUD housing, governor

1шт.

NUT hex, jam, governor, N.F. thread, 1/2"

1шт.

06170ab

O6170AB

JOINT ball, torsion spring, governor (Prior to tractor No. 4904771)

1шт.

NUT hex, governor, N.F. thread, 1/4"

1шт.

WASHER lock, standard, governor, 1/4"

1шт.

WASHER plain, standard, governor, 1/4"

1шт.

06798ab

O6798AB

BUSHING housing cover, governor (Tractor No. 4608405 to tractor No. 4904771) (See 4470A)

1шт.

06999ab

O6999AB

CUP grease, governor, 1/2 oz., 1/8" male compression, for 3096AA cover

1шт.

07161ab

A27169

SPRING

torsion, governor (Tractor No. 4904771 and after) (See 05295AB1)

1шт.

PIN cotter, governor, 3/16" x 1-1/4"

1шт.

07304ab

O7304AB

WASHER felt, shaft bearing, governor (Prior to tractor No. 4904771) (See 01760AB)

1шт.

08525ab1

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, lever, governor

1шт.

WASHER lock, standard, governor, 1/4"

1шт.

08922ab

O8922AB

COLLAR for 4070AA governor shaft

1шт.

08923ab

100-1168

SNAP RING,#68, Ext

Ring, Snap, , for 4070AA governor shaft #68, Ext

1шт.

09108ab

O9108AB

BUSHING for 4152AA governor sleeve

2шт.

09368ab

A27707

OIL SEAL

SEAL oil, shaft, governor (Tractor No. 5521190 and after) (See 04381AB)

1шт.

a140aa

A140AA

GOVERNOR ASSEMBLY (Consists of: one each of: A4462A, A4463A, 0871AB1, 01459AB1, O1763AB, O1764AB, O1765AB1, 4070AA, 4152AA and 2 each of: 5288A, O1441AB and 3118AA)

1шт.

a1428aa

A1428AA

COVER housing, governor, with bushing (Prior to tractor No. 4608405) (See 5922A and 3096AA)

1шт.

SCREW hex head cap, governor, N.C. thread, 1/2" x 3-1/2"

2шт.

WASHER lock, standard, governor, 1/2"

2шт.

PLUG pipe, square head, governor, 1/2"

1шт.

3096aa

3096AA

COVER housing, governor, with bushing (Tractor No. 4608405 to tractor No. 4904771) (See 5922A and A1428AA)

1шт.

SCREW hex head cap, governor, N.C. thread, 1/2" x 3-1/2"

2шт.

WASHER lock, standard, governor, 1/2"

2шт.

PLUG pipe, square head, governor, 1/8"

1шт.

FITTING straight lubricating, governor, Lincoln No. 5000, 1/8"

1шт.

3118aa

3118AA

PIN weight, governor, with snap rings

2шт.

3312aa

3312AA

X

SHAFT governor, with plug (Prior to tractor No. 5521190) (Use 4070AA)

1шт.

When 3312AA governor shaft is wanted, furnish 4070AA governor shaft with 09368AB oil seal.

1шт.

3716aa

3716AA

CARRIER bearing, governor, with bushings

1шт.

CONNECTOR male, governor, Dole A3, 3/16" tube size x 1/8" pipe thread)

1шт.

4070aa

4070AA

SHAFT governor, with collar and snap ring (Tractor No. 5521190 and after) (See 3312AA)

1шт.

KEY Woodruff, governor, No. 6

1шт.

KEY Woodruff, governor, No. 9

1шт.

4152aa

A28576

SLEEVE

governor, with bushings

1шт.

02788fh

19792R1

PIN,3/32" x 3/8", Slotted

roll, governor, 3/32" x 3/8" (Use with 4070AA)

1шт.

a4464a

A4464A

BRACKET magneto

1шт.

SCREW hex head cap, magneto, N.C. thread, 3/8" x 1"

3шт.

SCREW hex head cap, magneto, N.C. thread, 3/8" x 1-3/8"

2шт.

WASHER lock, standard, magneto, 3/8"

5шт.

b4522a

B4522A

LEVER spark, magneto (Use C4522A)

1шт.

c4522a

C4522A

LEVER spark, magneto

1шт.

06011a

O6011A

SEPARATOR spark plug wire, magneto, 4 hole

2шт.

SCREW round head machine, magneto, N.C. thread, 1/4" x 1-1/4" (Screws are replaced with 2 - 08904AB studs, nuts and washers, when 4044AA conduit is used.)

2шт.

WASHER lock, standard, magneto, 1/4"

2шт.

07236a3

O7236A3

SPARK PLUG

PLUG spark, magneto, 7/8" (Prior to tractor No. 5408295) (See O9012AB)

4шт.

01535ab1

O1535AB1

LINK lever, magneto (Use O1535AB2)

1шт.

01535ab2

O1535AB2

LINK lever, magneto

1шт.

PIN cotter, magneto, 1/16" x 3/8"

2шт.

01560ab

O1560AB

PIN lever, spark, magneto

1шт.

PIN cotter, magneto, 3/32" x 1/2"

1шт.

01570ab1

O1570AB1

WIRE magneto to No. 1 and No. 4 spark plugs

2шт.

01571ab1

A26551

CABLE

WIRE magneto to No. 2 and No. 3 spark plugs

2шт.

01799ab

A26596

SPARE PART

PIECE center, magneto coupling

1шт.

04449ab1

A26799

FITTING

NIPPLE for spark plug wire on magneto distributor

4шт.

04738ab

O4738AB

GAUGE timing and assembling, for 4CMA "Case" magneto

1шт.

07769ab

G46839

GASKET

magneto, for O9012AB spark plug

4шт.

07770ab

O7770AB

GASKET magneto, for O7236A3 spark plug

4шт.

08217ab

O8217AB

MEMBER adjustable drive, coupling, magneto (Use 9AA)

1шт.

08218ab

O8218AB

CONE adjusting, coupling, magneto (Use 9AA)

1шт.

08219ab

O8219AB

NUT adjusting, coupling, magneto

1шт.

08220ab

O8220AB

WASHER lock, coupling, magneto

1шт.

08904ab

O8904AB

STUD magneto, for O6011A separator when 4044AA conduit is used

2шт.

NUT hex, light, magneto, N.F. thread, 1/4"

2шт.

WASHER lock, standard, magneto, 1/4"

2шт.

09012ab

G44840

SPARK PLUG

PLUG spark, magneto (Type 85S, AC18MM) (Tractor No. 5408295 and after) (See O7236A3)

4шт.

9aa

A28321

COUPLING, BREAK AWAY

COUPLING magneto (Consists of: 1 - O8217AB, 1 - O8218AB, 1 - O8219AB and 1 - O8220AB)

1шт.

4cm30

4CM30

MAGNETO "Case"

1шт.
