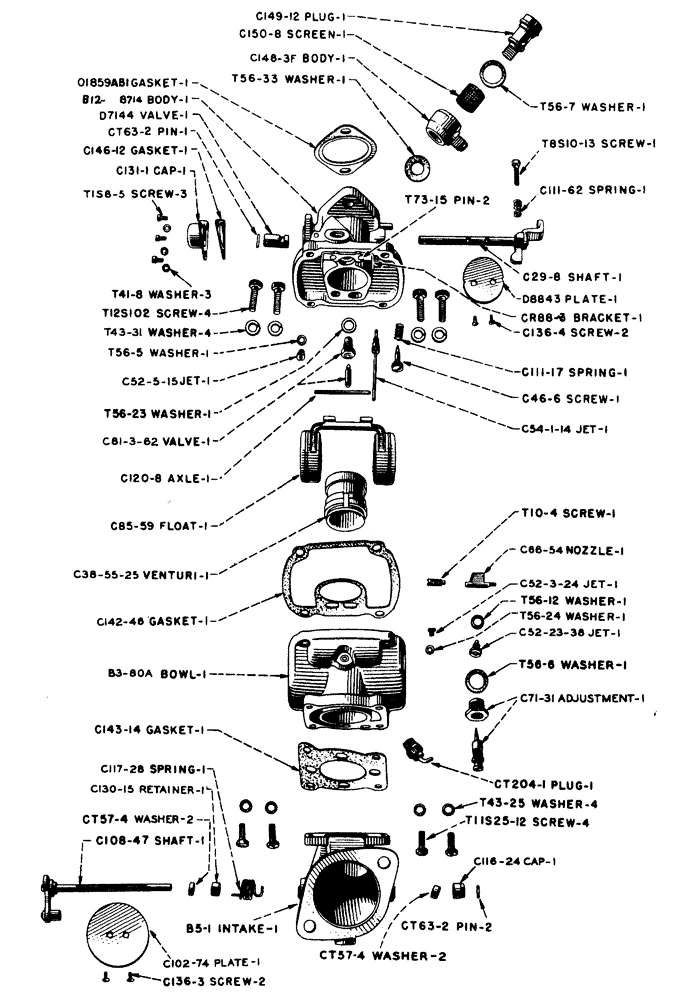

Запчасти Case IH LA-SERIES (010) - 04669AB ZENITH CARBURETOR, MODEL K6A OUTLINE NO. O-8714 (03) - FUEL SYSTEM

b380a

B380A

BOWL fuel

1шт.

b51

B51

V-BELT

INTAKE ASSEMBLY air

1шт.

b128714

B128714

BODY ASSEMBLY throttle (Consists of: throttle body complete with throttle shaft and lever, plate, stop lever and stop lever pin.) (Can use present stock of A2-79-1 bodies until exhausted.)

1шт.

c298

C298

SHAFT AND LEVER throttle

1шт.

c385525

C385525

VENTURI

1шт.

c466

C466

CONVERSION KIT

SCREW idle adjusting

1шт.

Part of Service Parts Kit P/N K623

1шт.

c52324

C52324

JET compensating, for gasoline and low cost fuel

1шт.

Part of Service Parts Kit P/N K623

1шт.

c52330

C52330

JET compensating, for alcohol only

1шт.

c52515

C52515

JET economizer

1шт.

Part of Service Parts Kit P/N K623

1шт.

c522338

C522338

JET main, for gasoline and low cost fuel

1шт.

Part of Service Parts Kit P/N K623

1шт.

c522340

C522340

JET main, for alcohol only

1шт.

c54114

C54114

JET idling

1шт.

Part of Service Parts Kit P/N K623

1шт.

c6654

C6654

NOZZLE discharge

1шт.

c7131

C7131

ADJUSTMENT main jet

1шт.

c81362

C81362

VALVE ASSEMBLY fuel

1шт.

Part of Service Parts Kit P/N K623

1шт.

c8559

C8559

FLOAT ASSEMBLY

1шт.

c10274

C10274

PLATE air shutter

1шт.

c10847

C10847

SHAFT AND LEVER air intake shutter

1шт.

c11117

C11117

SPRING idle adjusting screw

1шт.

c11162

N9355

HOUSING

SPRING throttle lever stop screw

1шт.

c11624

C11624

CAP packing

1шт.

c11728

C11728

SPRING air shutter return

1шт.

Part of Service Parts Kit P/N K623

1шт.

c1208

C1208

AXLE float

1шт.

Part of Service Parts Kit P/N K623

1шт.

c13015

C13015

RETAINER packing, air shutter shaft

1шт.

c1311

C1311

CAP valve, economizer

1шт.

c1363

C1363

SCREW air shutter

2шт.

c1364

C1364

SCREW throttle plate

2шт.

Part of Service Parts Kit P/N K623

1шт.

c13729

C13729

PLUG seal, nozzle screw

1шт.

c14142

C14142

GASKET flange

1шт.

Part of Service Parts Kit P/N K623

1шт.

c14246

C14246

GASKET, Serial Range: bowl-body

1шт.

Part of Service Parts Kit P/N K623

1шт.

Part of Gasket Set P/N C1814

1шт.

c14314

C14314

GASKET bowl to air intake assembly

1шт.

Part of Service Parts Kit P/N K623

1шт.

Part of Gasket Set P/N C1814

1шт.

c14612

C14612

GASKET cap, economizer

1шт.

Part of Service Parts Kit P/N K623

1шт.

Part of Gasket Set P/N C1814

1шт.

c1483f

C1483F

BODY fuel union

1шт.

c14912

C14912

PLUG filter or union body

1шт.

c1508

C1508

SCREEN filter

1шт.

Part of Service Parts Kit P/N K623

1шт.

c1814

C1814

SET gasket (Includes part numbers: C14246, C14314, C14612, T565, T566, T567, T5612, T5623, T5624, T5633)

1шт.

cr916

CR916

BUSHING throttle shaft

1шт.

cr883

CR883

BRACKET float

1шт.

ct574

CT574

WASHER packing, air shutter shaft

2шт.

Part of Service Parts Kit P/N K623

1шт.

ct5711

CT5711

PACKING drain

1шт.

Part of Service Parts Kit P/N K623

1шт.

ct5721

CT5721

PACKING drain

1шт.

Part of Service Parts Kit P/N K623

1шт.

ct632

CT632

PIN shutter and throttle shaft

2шт.

ct93b50

CT93B50

PLUG drain

1шт.

Part of Service Parts Kit P/N K623

1шт.

ct93b51

CT93B51

PLUG drain (Welch)

1шт.

Part of Service Parts Kit P/N K623

1шт.

ct2041

CT2041

PLUG drain, bowl

1шт.

d7144

D7144

VALVE economizer

1шт.

Part of Service Parts Kit P/N K623

1шт.

d8843

D8843

PLATE throttle

1шт.

t104

T104

SCREW set, nozzle

1шт.

t418

T418

WASHER lock, economizer cap screw

3шт.

Part of Service Parts Kit P/N K623

1шт.

t43-25

T43-25

WASHER lock, intake assembly screw

4шт.

t4331

T4331

WASHER lock, bowl to body screw

4шт.

t565

T565

WASHER fibre, economizer jet

1шт.

Part of Service Parts Kit P/N K623

1шт.

Part of Gasket Set P/N C1814

1шт.

t566

T566

WASHER fibre, main jet adjustment

1шт.

Part of Service Parts Kit P/N K623

1шт.

Part of Gasket Set P/N C1814

1шт.

t567

T567

WASHER fibre, filter plug

1шт.

Part of Service Parts Kit P/N K623

1шт.

Part of Gasket Set P/N C1814

1шт.

t5612

T5612

WASHER fibre, main jet

1шт.

Part of Service Parts Kit P/N K623

1шт.

Part of Gasket Set P/N C1814

1шт.

t5623

T5623

WASHER fibre, fuel valve seat

1шт.

Part of Service Parts Kit P/N K623

1шт.

Part of Gasket Set P/N C1814

1шт.

t5624

T5624

WASHER fibre, compensating jet

1шт.

Part of Service Parts Kit P/N K623

1шт.

Part of Gasket Set P/N C1814

1шт.

t5633

T5633

WASHER fibre, union body

1шт.

Part of Service Parts Kit P/N K623

1шт.

Part of Gasket Set P/N C1814

1шт.

t5636

T5636

WASHER fibre, throttle stop

1шт.

Part of Service Parts Kit P/N K623

1шт.

t7315

T7315

PIN fastening float bracket

2шт.

t1s85

T1S85

SCREW economizer cap assembly

3шт.

Part of Service Parts Kit P/N K623

1шт.

t1s1010

T1S1010

SCREW housing cover

1шт.

Part of Service Parts Kit P/N K623

1шт.

t8s1013

T8S1013

SCREW throttle stop

1шт.

t11s2512

T11S2512

SCREW intake to bowl assembly

4шт.

t12s102

T12S102

SCREW bowl to body assembly

4шт.

k623

K623

KIT service parts

1шт.

Includes part numbers: C466, C52324, C52515, C522338, C54114, C81362, C11728, C1208, C1364, C14142, C14246, C14314, C14612, C1508, CT574, CT5711, CT5721, CT93B50, CT93B51, D7144, T418, T565, T566, T567, T5612, T5623, T5624, T5633, T5636, T1S85 and T1S1010

1шт.

o1859ab1

O1859AB1

GASKET

, Serial Range: carburetor-manifold

1шт.
