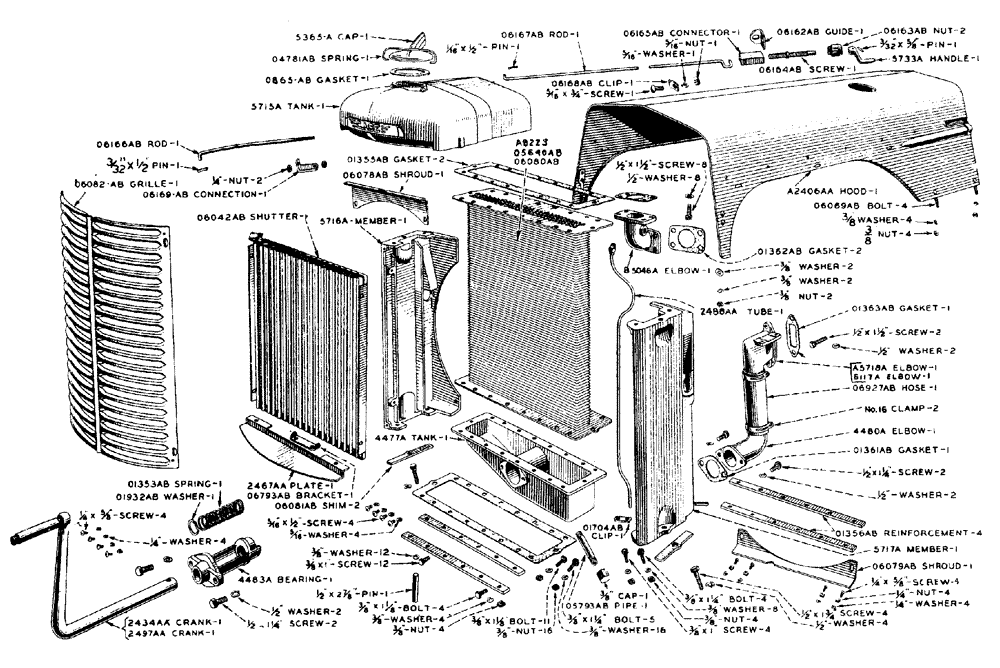

Запчасти Case IH LA-SERIES (023) - RADIATOR (02) - ENGINE

a8223

A8223

CORE

radiator, with header

1шт.

4477a

4477A

TANK lower, radiator

1шт.

BOLT machine, square head, radiator, N.C. thread, 3/8" x 1-1/8"

11шт.

BOLT machine, square head, radiator, N.C. thread, 3/8" x 1-1/4"

5шт.

WASHER lock, standard, radiator, 3/8"

16шт.

4480a

4480A

ELBOW outlet, radiator

1шт.

SCREW cap, hex head, radiator, N.C. thread, 1/2" x 1-1/4", with lock washer

2шт.

b5046a

B5046A

ELBOW inlet, radiator

1шт.

SCREW cap, hex head, radiator, N.C. thread, 1/2" x 1-1/2"

4шт.

WASHER lock, standard, radiator, 1/2"

4шт.

5365a

5365A

CAP radiator

1шт.

5715a

5715A

TANK top, radiator

1шт.

5716a

5716A

MEMBER side, radiator, R.H.

1шт.

BOLT machine, square head, radiator, N.C. thread, 3/8" x 1-1/4"

2шт.

SCREW cap, hex head, radiator, N.C. thread, 3/8" x 1"

2шт.

WASHER lock, standard, radiator, 3/8"

4шт.

SCREW cap, hex head, radiator, N.C. thread, 1/2" x 1-3/4"

2шт.

WASHER lock, standard, radiator, 1/2"

2шт.

5717a

5717A

MEMBER side, radiator, L.H.

1шт.

BOLT machine, square head, radiator, N.C. thread, 3/8" x 1-1/4"

2шт.

SCREW cap, hex head, radiator, N.C. thread, 3/8" x 1"

2шт.

WASHER lock, standard, radiator, 3/8"

4шт.

SCREW cap, hex head, radiator, N.C. thread, 1/2" x 1-3/4"

2шт.

WASHER lock, standard, radiator, 1/2"

2шт.

5718a

5718A

ELBOW inlet, cylinder, radiator (Use A5718A)

1шт.

a5718a

A5718A

ELBOW inlet, cylinder, radiator (See 6117A)

1шт.

SCREW cap, hex head, radiator, N.C. thread, 1/2" x 1-1/2"

2шт.

WASHER lock, standard, radiator, 1/2"

2шт.

5719a

5719A

ELBOW inlet, radiator (Use B5046A with 4-1/2" x 1-1/2" N.C. thread, hex head cap screw, with 1/2" standard lock washer and 1/2" square head pipe plug

1шт.

a5719a

A5719A

ELBOW inlet, radiator (Use B5046A with 4-1/2" x 1-1/2" N. C. thread, hex head cap screw, with 1/2" lock washer and 1/2" square head pipe plug

1шт.

b5719a

B5719A

ELBOW inlet, radiator (Use B5046A with 4-1/2" x 1-1/2" N. C. thread, hex head cap screw, with 1/2" standard lock washer and 1/2" square head pipe plug

1шт.

6117a

6117A

ELBOW inlet, cylinder, radiator, for LP-gas (See A5718A)

1шт.

SCREW cap, hex head, radiator, N.C. thread, 1/2" x 1-1/2"

2шт.

WASHER lock, standard, radiator, 1/2"

2шт.

0865ab

O865AB

GASKET

cap, radiator

1шт.

01355ab

O1355AB

GASKET

header, radiator

2шт.

01356ab

O1356AB

REINFORCEMENT header, radiator

4шт.

BOLT machine, radiator, N.C. thread, 3/8" x 1-1/8"

2шт.

SCREW cap, hex head, radiator, N.C. thread, 3/8" x 1"

12шт.

WASHER lock, standard, radiator, 3/8"

12шт.

01360ab

O1360AB

HOSE radiator (Used with 5718A elbow) (See O6927AB)

1шт.

CLAMP hose, radiator, No. 16

2шт.

01361ab

O1361AB

GASKET

outlet elbow, radiator

1шт.

01362ab

O1362AB

GASKET

inlet elbow, radiator

2шт.

01363ab

O1363AB

GASKET

inlet elbow, cylinder, radiator

1шт.

01704ab

O1704AB

CLIP tube, overflow, radiator

1шт.

BOLT machine, radiator, N.C. thread, 3/8" x 1-1/4", with lock washer

1шт.

04781ab

O4781AB

SPRING

cap, radiator

1шт.

05793ab

O5793AB

PIPE drain, radiator, 3/8" x 4", used for drain in 4477A

1шт.

CAP pipe, hex head, radiator, 3/8"

1шт.

06078ab

O6078AB

SHROUD upper, radiator

1шт.

SCREW machine, round head, radiator, N.C. thread, 1/14" x 5/8"

2шт.

NUT hex, radiator, N.C. thread, 1/4"

2шт.

WASHER lock standard, radiator, 1/4"

2шт.

06079ab

O6079AB

SHROUD lower, radiator

1шт.

SCREW machine, round head, radiator, N.C. thread, 1/4" x 5/8"

2шт.

NUT hex, radiator, N.C. thread, 1/4"

2шт.

WASHER lock, standard, radiator, 1/4"

2шт.

06081ab

O6081AB

SHIM radiator

2шт.

SCREW cap, hex head, radiator, N.C. thread, 1/2" x 1-3/4", with lock washer

2шт.

06082ab

O6082AB

GRILLE radiator

1шт.

SCREW machine, round head, radiator, N.C. thread, 1/4" x 5/8", with lock washer

4шт.

06927ab

O6927AB

HOSE radiator (Used with A5718A elbow) (See 01360AB)

1шт.

CLAMP hose, radiator, No. 16

2шт.

08989ab

A27563

THERMOSTAT

radiator

1шт.

2467aa

2467AA

PLATE baffle, radiator

1шт.

2488aa

2488AA

TUBE overflow, radiator, with connector

1шт.

3881aa

3881AA

RADIATOR complete

1шт.

5733a

5733A

HANDLE control, shutter, radiator

1шт.

PIN taper groove, full length, radiator shutter, Type 1, 3/32" x 5/8"

1шт.

06042ab

O6042AB

SHUTTER radiator

1шт.

SCREW machine, round head, radiator shutter, N.C. thread, 5/16" x 1/2"

4шт.

WASHER lock, standard, radiator shutter, 5/16"

4шт.

06162ab

O6162AB

GUIDE control, radiator shutter

1шт.

06163ab

O6163AB

NUT control, radiator shutter

2шт.

06164ab

O6164AB

SCREW control, radiator shutter

1шт.

06165ab

O6165AB

CONNECTOR control, radiator shutter

1шт.

06166ab

O6166AB

ROD front, control, radiator shutter

1шт.

PIN cotter, front control rod, radiator shutter, 3/32" x 1/2"

1шт.

NUT hex, front control rod, radiator shutter, N.C. thread, 1/4"

2шт.

06167ab

O6167AB

ROD rear, radiator shutter control

1шт.

PIN cotter, rear rod, radiator shutter control, 1/16" x 1/2"

1шт.

06168ab

O6168AB

CLIP, rear rod, radiator shutter control

1шт.

SCREW machine, round head, rear rod clip, radiator shutter control, N.C. thread, 5/16" x 3/4"

1шт.

NUT hex, machine screw, rear rod clip, radiator shutter control, N.C. thread, 5/16"

1шт.

WASHER lock, standard, rear rod clip, radiator shutter control, 5/16"

1шт.

06169ab

O6169AB

CONNECTION control rod, radiator shutter

1шт.

06793ab

O6793AB

BRACKET support, radiator shutter

1шт.

4483a

4483A

BEARING starting crank

1шт.

SCREW cap, hex head, starting crank, N.C. thread, 1/2" x 1-1/4"

2шт.

WASHER lock, standard, starting crank, 1/2"

2шт.

0877ab

O877AB

PIN handle, starting crank

1шт.

0878ab

O878AB

HANDLE starting crank

1шт.

01353ab

O1353AB

SPRING starting crank

1шт.

01932ab

O1932AB

WASHER spring, starting crank

1шт.

0434aa

O434AA

CRANK starting, with handle and pin (See 2497AA)

1шт.

PIN groove, center, starting crank, type 5, 1/2" x 2-7/8"

1шт.

PIN cotter, starting crank, 1/8" x 1-1/2"

1шт.

2497aa

2497AA

CRANK starting, with bearing and spring (Consists of: 1 - 2434AA, 1 - 4483A, 1 - O1353AB, 1 - O1932AB, 1 - 1/8" x 1-1/2" cotter pin, 1 - 1/2" x 2-7/8" type 5, center groove pin)

1шт.
