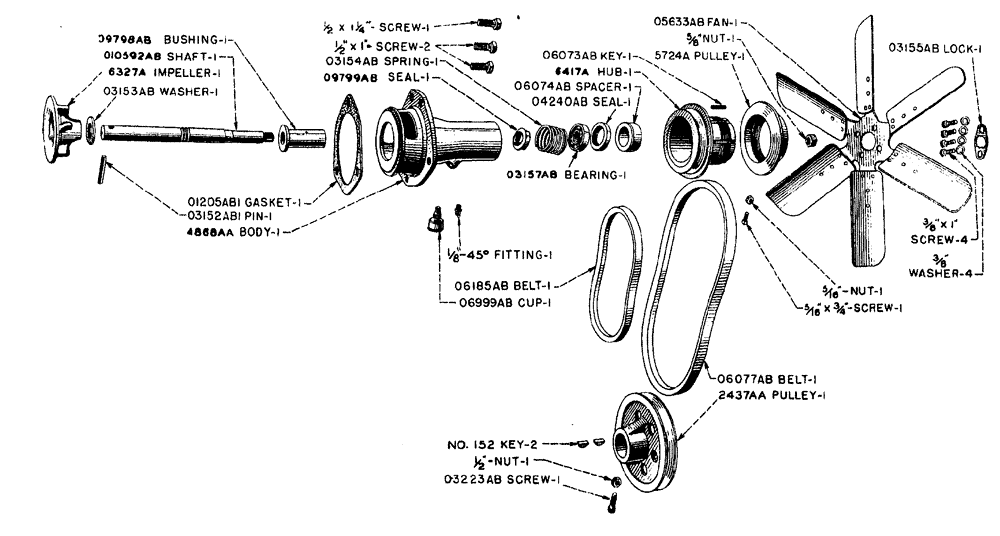

Запчасти Case IH LA-SERIES (022) - FAN AND WATER PUMP BODY NO. 6417A (02) - ENGINE

5723a

5723A

HUB fan, with stationary half of pulley

1шт.

5724a

5724A

PULLEY fan, adjustable half

1шт.

SCREW set, cup point, N.C. thread, 5/16" x 3/4"

1шт.

NUT hex, jam, N.C. thread, 5/16"

1шт.

5725a

5725A

PULLEY fan drive (Use 2437AA)

1шт.

6327a

6327A

IMPELLER water pump

1шт.

6417a

6417A

BODY water pump (Use 2868AA)

1шт.

2437aa

2437AA

PULLEY fan drive, with set screw and jam nut

1шт.

KEY Woodruff, No.152

2шт.

4868aa

4868AA

BODY water pump, with bushing

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1"

2шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

1шт.

FITTING lubricating, Lincoln No. 5200, 1/8", 45 degree

1шт.

4869aa

4869AA

WATER PUMP ASSEMBLY less fan blades and pulley

1шт.

01205ab1

A26478

GASKET

water pump

1шт.

03157ab

A26708

BALL BEARING,0.7874" ID x 2.0472" OD x 0.5906"

BEARING water pump and fan shaft (New departure No. 7304)

1шт.

03223ab

O3223AB

SCREW set, fan drive pulley

1шт.

NUT hex, jam, N.C. thread, 1/2"

1шт.

04240ab

A26777

OIL SEAL

oil, outer, water pump

1шт.

05633ab

O5633AB

FAN BLADE ASSEMBLY

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1"

4шт.

WASHER lock, standard, 3/8"

4шт.

06073ab

A27001

KEY

water pump and fan shaft

1шт.

06074ab

A27002

SPACER

water pump and fan shaft

1шт.

06077ab

O6077AB

BELT

fan

1шт.

06185ab

O6185AB

BELT

generator (Used with starting equipment)

1шт.

09798ab

A27900

BUSHING

water pump body

1шт.

09799ab

O9799AB

SEAL oil, inner, water pump

1шт.

010592ab

O10592AB

SHAFT water pump and fan

1шт.

NUT hex, light, N.F. thread, 5/8"

1шт.
