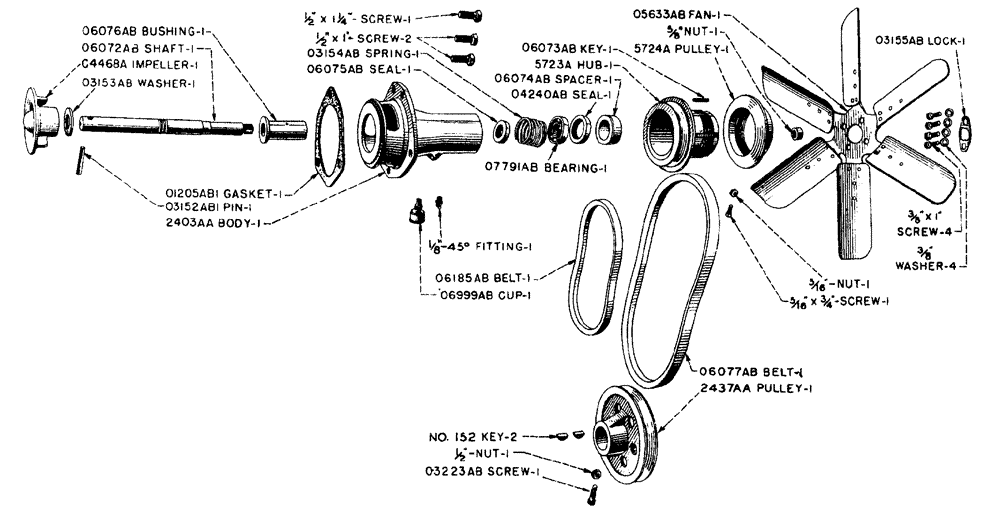

Запчасти Case IH LA-SERIES (021) - FAN AND WATER PUMP BODY NO. 5722A (02) - ENGINE

c4468a

C4468A

IMPELLER water pump

1шт.

5722a

5722A

BODY water pump (Use 2403AA)

1шт.

5723a

5723A

HUB fan, with stationary half of pulley

1шт.

5724a

5724A

PULLEY fan, adjustable half

1шт.

SCREW set, cup point, N.C. thread, 5/16" x 3/4"

1шт.

NUT hex, jam, N.C. thread, 5/16"

1шт.

5725a

5725A

PULLEY fan drive (Use 2437AA)

1шт.

01205ab1

A26478

GASKET

water pump

1шт.

03152ab1

A26704

PIN

impeller, water pump

1шт.

03153ab

O3153AB

X

WASHER thrust, water pump

1шт.

03154ab

A26706

SPRING

water pump

1шт.

03155ab

A26707

LOCK

shaft nut, water pump

1шт.

03223ab

O3223AB

SCREW set, fan drive pulley

1шт.

NUT hex, jam, N.C. thread, 1/2"

1шт.

04240ab

A26777

OIL SEAL

oil, outer, water pump

1шт.

05633ab

O5633AB

FAN BLADE ASSEMBLY

1шт.

SCREW cap, hex head, N.C. thread, 3/8" x 1"

4шт.

WASHER lock, standard, 3/8"

4шт.

06072ab

O6072AB

SHAFT water pump and fan

1шт.

NUT hex, light, N.F. thread, 5/8"

1шт.

06073ab

A27001

KEY

water pump and fan shaft

1шт.

06074ab

A27002

SPACER

water pump and fan shaft

1шт.

06075ab

366601R91

OIL SEAL

SEAL oil, inner, water pump

1шт.

06076ab

A27003

BUSHING

water pump body

1шт.

06077ab

O6077AB

BELT

fan

1шт.

06185ab

O6185AB

BELT

generator (Used with starting equipment)

1шт.

06999ab

O6999AB

CUP grease, 1/2 oz., 1/8" male compression, for water pump body

1шт.

07791ab

O7791AB

BEARING

water pump and fan shaft (New departure No. 1304)

1шт.

2403aa

2403AA

PUMP, water, with bushing

1шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1"

2шт.

SCREW cap, hex head, N.C. thread, 1/2" x 1-1/4"

1шт.

FITTING lubricating, Lincoln No. 5200, 1/8", 45 degree

1шт.

2437aa

2437AA

PULLEY fan drive, with set screw and jam nut

1шт.

KEY Woodruff, No. 152

2шт.

3282aa

3282AA

WATER PUMP ASSEMBLY less fan blades and pulley

1шт.

3393aa

3393AA

KIT

water pump repair (Consists of: 1 - C4468A, 1 - O1205AB1, 1 - O3152AB1, 1 - O3153AB, 1 - O4240AB, 1 - O6072AB, 1 - O6075AB, 1 - O6076AB and 1 - O7791AB)

1шт.
