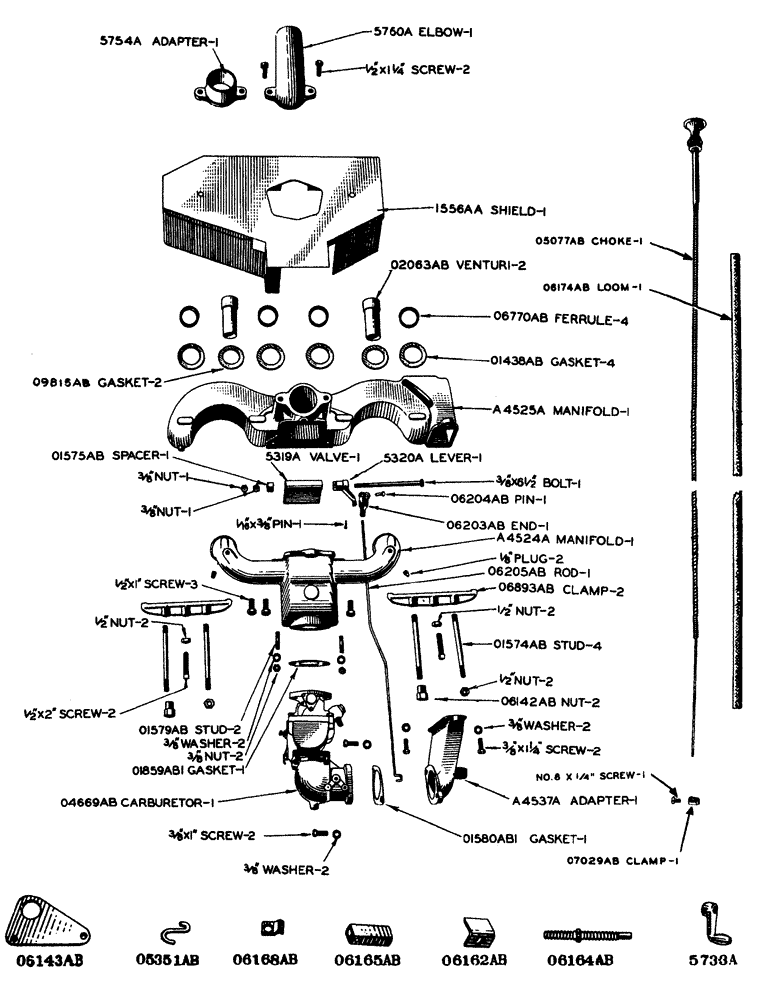

Запчасти Case IH LA-SERIES (008) - LOW COST FUEL MANIFOLD AND CARBURETOR (02) - ENGINE

a4524a

A4524A

MANIFOLD inlet, low cost fuel

1шт.

SCREW hex head cap, low cost fuel manifold, N.C. thread, 1/2" x 1"

3шт.

PLUG pipe, square head, low cost fuel manifold, 1/8"

2шт.

4525a

4525A

MANIFOLD exhaust, low cost fuel (Prior to tractor No. 4504027) (Use A4525A and 5754A)

1шт.

a4525a

A4525A

MANIFOLD exhaust, low cost fuel (Tractor No. 4504027 and after)

1шт.

4527a

4527A

ELBOW exhaust, for 4525A manifold (See 5760A)

1шт.

SCREW cup point set, low cost fuel manifold, N.C. thread, with hex nut, 3/8" x 1"

2шт.

5319a

5319A

heat regulator, low cost fuel manifold

1шт.

5320a

5320A

LEVER heat regulator, low cost fuel manifold

1шт.

BOLT machine, low cost fuel manifold, N.C. thread, 3/8" x 6-1/2"

1шт.

NUT hex, regular, low cost fuel manifold, N.C. thread, 3/8"

1шт.

NUT hex, jam, low cost fuel manifold, N.C. thread, 3/8"

1шт.

5733a

5733A

HANDLE heat regulator and radiator shutter control, low cost fuel manifold

1шт.

PIN taper groove, full length, Type 1, low cost fuel manifold, 3/32" x 5/8"

1шт.

5754a

5754A

ADAPTER elbow, exhaust, low cost fuel manifold

1шт.

5759a

5759A

ELBOW exhaust, low cost fuel manifold (Use 5760A)

1шт.

a5759a

A5759A

ELBOW exhaust, low cost fuel manifold (Use 5760A)

1шт.

5760a

5760A

ELBOW exhaust, for A4525 manifold (See 4527A)

1шт.

SCREW hex head cap, low cost fuel manifold, N.C. thread, 1/2" x 1-1/4"

2шт.

01436ab

O1436AB

FERRULE exhaust port, low cost fuel manifold (Prior to tractor No. 4605820) (See O6770AB)

4шт.

01438ab

O1438AB

GASKET

exhaust port, low cost fuel manifold

4шт.

01573ab

O1573AB

CLAMP for 4525A manifold (See O6893AB)

2шт.

SCREW cup point set, low cost fuel manifold, with hex jam nut, N.C. thread, 1/2" x 2"

2шт.

01574ab

O1574AB

STUD inlet and exhaust, low cost fuel manifold

4шт.

NUT hex, light, low cost fuel manifold, N.F. thread, 1/2"

2шт.

01575ab

O1575AB

SPACER heater valve, low cost fuel manifold

1шт.

01576ab

O1576AB

GASKET between intake and exhaust manifold (Prior to tractor No. 4504027)

1шт.

02063ab

O2063AB

VENTURI inlet, low cost fuel manifold

2шт.

05351ab

O5351AB

LINK lever arm, heat regulator, low cost fuel manifold

1шт.

PIN cotter, low cost fuel manifold, 1/16" x 3/8"

1шт.

06142ab

O6142AB

NUT stud, manifold shield and clamp

2шт.

06143ab

O6143AB

ARM lever, heat regulator, low cost fuel manifold

1шт.

06144ab

O6144AB

SPACER lever arm, heat regulator, low cost fuel manifold

1шт.

06162ab

O6162AB

GUIDE control, heat regulator and radiator shutter, low cost fuel manifold

1шт.

06164ab

O6164AB

SCREW control, heat regulator and radiator shutter, low cost fuel manifold

1шт.

06165ab

O6165AB

CONNECTOR control, heat regulator and radiator shutter, low cost fuel manifold

1шт.

06168ab

O6168AB

CLIP rod, heat regulator, low cost fuel manifold

1шт.

SCREW round head machine, low cost fuel manifold, with nut and lockwasher, 5/16" x 3/4"

1шт.

06203ab

213-113

ADJUSTABLE CLEVIS,#10-32

END yoke, heat regulator rod, low cost fuel manifold

1шт.

06204ab

141-1

CLEVIS PIN,3/16" x .580"

PIN yoke end, heat regulator rod, low cost fuel manifold

1шт.

PIN cotter, low cost fuel manifold, 1/16" x 3/8"

1шт.

06205ab

O6205AB

ROD heat regulator, low cost fuel manifold

1шт.

06770ab

A21056

CAP

FERRULE exhaust port, low cost fuel manifold (Tractor No. 4605820 and after) (See O1436AB)

4шт.

06893ab

O6893AB

CLAMP for A4525A manifold (See O1573AB)

2шт.

SCREW cup point set, low cost fuel manifold, with hex jam nut, N.C. thread, 1/2" x 2"

2шт.

09815ab

A27909

GASKET

intake port, low cost fuel manifold

2шт.

1556aa

1556AA

SHIELD low cost fuel manifold

1шт.

a4537a

A4537A

ADAPTER carburetor, for gasoline or low cost fuel

1шт.

SCREW hex head cap, with lockwasher, N.C. thread, 3/8" x 1-1/4", for carburetor for gasoline or low cost fuel

2шт.

01579ab

O1579AB

STUD carburetor to inlet manifold, for gasoline or low cost fuel

2шт.

NUT hex, light, , for carburetor for gasoline or low cost fuel, N.F. thread, 3/8"

2шт.

WASHER lock, standard, for carburetor for gasoline or low cost fuel, 3/8"

2шт.

01580ab1

A26555

GASKET

adapter, for carburetor for gasoline or low cost fuel

1шт.

01581ab

O1581AB

STUD clamp, air cleaner, in carburetor adapter

1шт.

01859ab1

O1859AB1

GASKET

carburetor to inlet manifold

1шт.

04591ab1

O4591AB1

CLIP flexible choke control, for carburetor for gasoline or low cost fuel

1шт.

SCREW round head machine, with nut, N.C. thread, No. 10 x 3/4", for carburetor for gasoline or low cost fuel

1шт.

04669ab

O4669AB

CARBURETOR for gasoline or low cost fuel (Zenith model No. K6A, outline No. 0-8714)

1шт.

SCREW hex head cap, with lock washer, N.C. thread, 3/8" x 1", for carburetor for gasoline or low cost fuel

2шт.

05077ab

O5077AB

CHOKE

control, flexible, for carburetor for gasoline or low cost fuel

1шт.

06174ab

O6174AB

LOOM for O5077AB coke control, for carburetor for gasoline or low cost fuel

1шт.

07029ab

O7029AB

CLAMP flexible choke control wire, for carburetor for gasoline or low cost fuel

1шт.

SCREW round head machine, N.C. thread, No. 8 x 1/4", for carburetor for gasoline or low cost fuel

1шт.
