Запчасти Case IH LA-SERIES (007) - GASOLINE MANIFOLD AND AIR CLEANER (02) - ENGINE

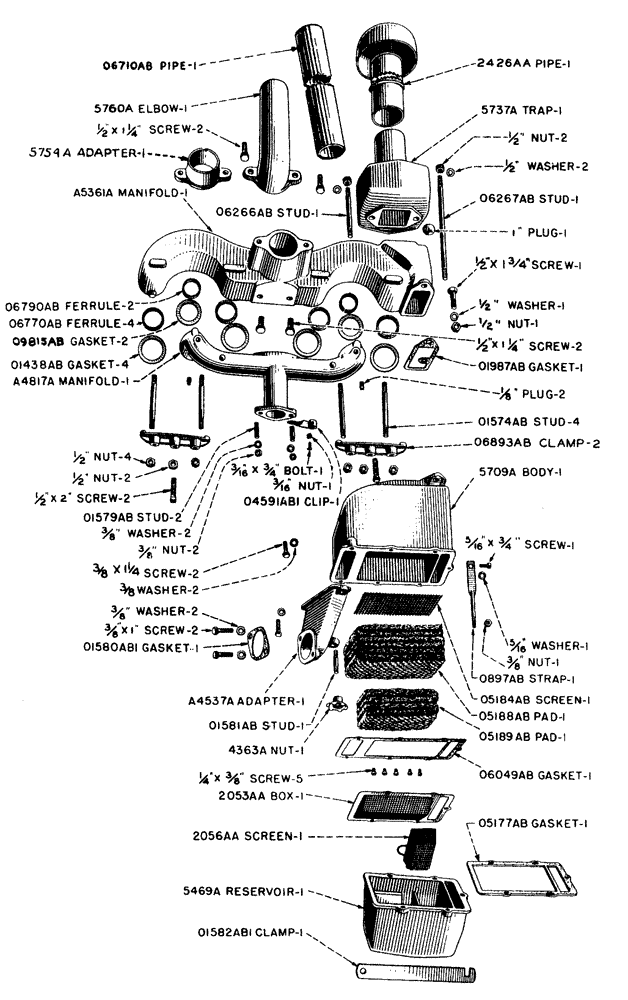

Схема запчастей Case IH LA-SERIES - (007) - GASOLINE MANIFOLD AND AIR CLEANER (02) - ENGINE
060494ab
01582ab1
2426aa
a4537a
01574ab
01438ab
01580ab1
06893ab
0897ab
a4817a
04591ab1
01581ab
a5361a
06266ab
06710ab
5709a
5754a
2053aa
06267ab
4363a
09815ab
5737a
01579ab
05184ab
2056aa
05188ab
06790
5760a
06770ab
01987ab
05189ab
5469a
05177ab

Артикул

Название

Примечание

Количество

4527a

4527A

ELBOW exhaust, gasoline, for 5361A manifold (See 5760A)

1шт.

SCREW cup point set, gasoline manifold, N.C. thread, 3/8" x 1"

2шт.

NUT hex, gasoline manifold, N.C. thread, 3/8"

2шт.

a4537a

A4537A

ADAPTER carburetor, gasoline manifold

1шт.

SCREW hex head cap, gasoline manifold, N.C. thread, 3/8" x 1-1/4"

2шт.

WASHER lock, standard, gasoline manifold, 3/8"

2шт.

a4817a

A4817A

MANIFOLD inlet, gasoline

1шт.

SCREW hex head cap, gasoline manifold, N.C. thread, 1/2" x 1-1/4"

2шт.

PLUG pipe, square head, gasoline manifold, 1/8"

2шт.

5361a

5361A

MANIFOLD exhaust, gasoline (Prior to tractor No. 4504027) (Use A5361A and 5754A)

1шт.

a5361a

A5361A

MANIFOLD exhaust, gasoline (Tractor No 4504027 and after)

1шт.

5754a

5754A

ADAPTER elbow, exhaust, gasoline manifold

1шт.

5759a

5759A

ELBOW exhaust, gasoline manifold (Use 5760A)

1шт.

a5759a

A5759A

ELBOW exhaust, gasoline manifold (Use 5760A)

1шт.

5760a

5760A

ELBOW exhaust, gasoline, for A5361A manifold (See 4527A)

1шт.

SCREW hex head cap, gasoline manifold, N.C. thread, 1/2" x 1-1/4"

2шт.

01436ab

O1436AB

FERRULE exhaust port, gasoline manifold (Prior to tractor No. 4605820) (See O6770AB)

4шт.

01438ab

O1438AB

GASKET

exhaust port, gasoline manifold

4шт.

01573ab

O1573AB

CLAMP for 5361A manifold (See O6893AB)

2шт.

SCREW cup point set, gasoline manifold, N.C. thread, 1/2" x 2"

2шт.

NUT hex, jam, gasoline manifold, N.C. thread, 1/2"

2шт.

01574ab

O1574AB

STUD inlet and exhaust, gasoline manifold

4шт.

NUT hex, gasoline manifold, N.F. thread, 1/2"

4шт.

01579ab

O1579AB

STUD carburetor to intake manifold

2шт.

NUT hex, light, gasoline manifold, N.F. thread, 3/8"

2шт.

WASHER lock, standard, gasoline manifold, 3/8"

2шт.

01580ab1

A26555

GASKET

carburetor adapter, gasoline manifold

1шт.

04591ab1

O4591AB1

CLIP flexible choke control, gasoline manifold

1шт.

SCREW round head machine, gasoline manifold, N.C. thread, No. 10 x 3/4"

1шт.

NUT hex, gasoline manifold, N.C. thread, No 10

1шт.

06710ab

O6710AB

PIPE exhaust, gasoline manifold, 3" O.D. x 34" long

1шт.

06770ab

A21056

CAP

FERRULE exhaust port, gasoline manifold (Tractor No. 4605820 and after) (See O1436AB)

4шт.

06790ab

O6790AB

X

FERRULE inlet port, gasoline manifold

2шт.

06893ab

O6893AB

CLAMP for A5361A manifold (See O1573AB)

2шт.

SCREW cup point set, gasoline manifold, N.C. thread, 1/2" x 2"

2шт.

NUT hex, jam, gasoline manifold, N.C. thread, 1/2"

2шт.

09815ab

A27909

GASKET

intake port, gasoline manifold

2шт.

vt3399

VT3399

PLUG Welch, air cleaner, 1", for 5737A oil trap

1шт.

4363a

4363A

NUT clamp, air cleaner

1шт.

5469a

5469A

RESERVOIR air cleaner

1шт.

5709a

5709A

BODY air cleaner

1шт.

SCREW hex head cap, air cleaner, N.F. thread, 1/2" x 1-3/4"

1шт.

NUT hex, light, air cleaner, N.F. thread, 1/2"

1шт.

WASHER lock, standard, air cleaner, 1/2"

1шт.

5727a

5727A

FLANGE air intake pipe (Use 5737A air cleaner oil trap with 1 - O6266AB stud and 1 - O6267AB stud)

1шт.

5737a

5737A

TRAP oil, air cleaner

1шт.

0897ab

O897AB

STRAP clamp, air cleaner

1шт.

SCREW hex head cap, air cleaner, N.C. thread, 5/16" x 3/4"

1шт.

WASHER lock, standard, air cleaner, 5/16"

1шт.

NUT hex, air cleaner, N.C. thread, 3/8"

1шт.

01581ab

O1581AB

STUD clamp, air cleaner, in carburetor adapter

1шт.

01582ab1

O1582AB1

CLAMP air cleaner

1шт.

01987ab

O1987AB

GASKET

upper, air cleaner body

1шт.

05177ab

A26854

GASKET

reservoir, air cleaner

1шт.

05184ab

O5184AB

SCREEN upper, air cleaner

1шт.

05188ab

O5188AB

PAD filter, upper, air cleaner

1шт.

05189ab

O5189AB

PAD filter, lower, air cleaner

1шт.

06049ab

A26987

GASKET

body, lower, air cleaner

1шт.

06266ab

O6266AB

STUD short, oil trap, air cleaner

1шт.

NUT hex, light, air cleaner, N.F. thread, 1/2"

1шт.

WASHER lock, standard, air cleaner, 1/2"

1шт.

06267ab

O6267AB

STUD long, oil trap, air cleaner

1шт.

NUT hex, light, air cleaner, N.F. thread, 1/2"

1шт.

WASHER lock, standard, air cleaner, 1/2"

1шт.

2053aa

2053AA

BOX air cleaner

1шт.

SCREW fillister head machine, air cleaner, N.F. thread, 1/4" x 3/8"

5шт.

2056aa

2056AA

SCREEN chaff, air cleaner, with clip

1шт.

2426aa

2426AA

PIPE air intake

1шт.

3083aa

3083AA

AIR CLEANER complete

1шт.

Выбрано товаров: 69
