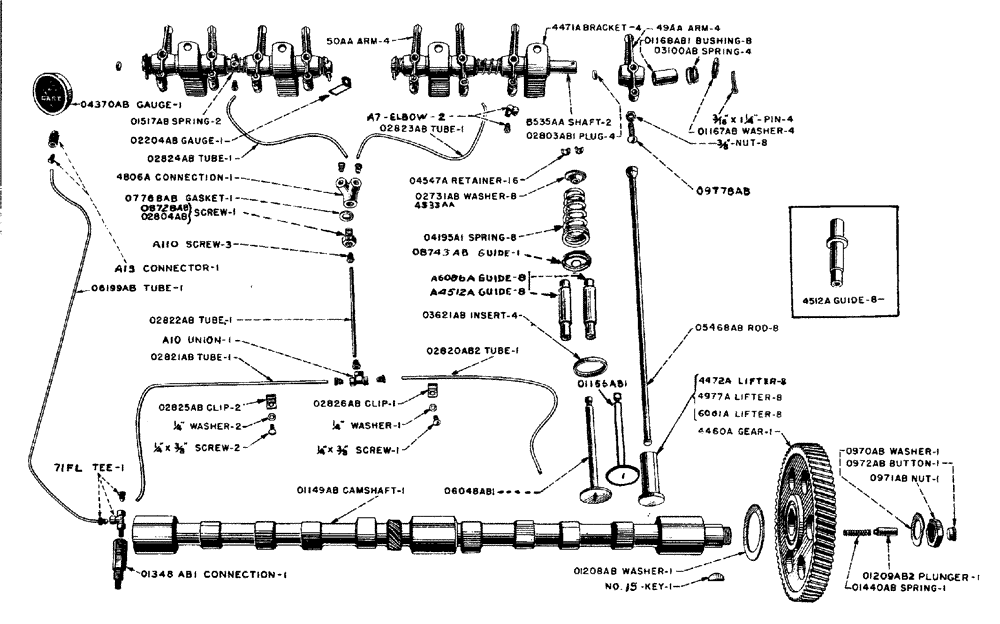

Запчасти Case IH LA-SERIES (004) - VALVES, PUSH RODS AND CAMSHAFT (02) - ENGINE

a9302

A26986

VALVE, ENG EXHAUST,

VALVE, exhaust, stellate, for 51AA, 3943AA and 3947AA cylinder heads (See O6048AB)

4шт.

4460a

4460A

GEAR camshaft

1шт.

4471a

4471A

BRACKET valve rocker arm shaft

4шт.

4472a

4472A

LIFTER push rod, standard size, (See 4977A and 6061A)

8шт.

4512a

4512A

X

GUIDE valve stem (Use A4512A with 08743AB if inlet guide is wanted or A6086A with O8743AB if exhaust valve is wanted)

1шт.

a4512a

A4512A

ROLL PIN

GUIDE inlet valve (See A6086A and 6388A)

4шт.

4977a

4977A

LIFTER push rod, .010" oversize (See 4472A and 6061A)

8шт.

6061a

6061A

LIFTER push rod, .020" oversize (See 4472A and 4977A)

8шт.

a6086a

A6086A

SPARE PART

GUIDE exhaust valve (See A4512A and 6389A)

4шт.

6388a

6388A

GUIDE inlet valve, for 4767AA cylinder head (LP gas)

4шт.

6389a

6389A

GUIDE exhaust valve, for 4767AA cylinder head (LP gas)

4шт.

04195a1

O4195A1

SPRING inlet and exhaust valve

8шт.

04547a

O4547A

RETAINER valve spring (2 required per valve) (See O8974AB)

16шт.

0970ab

A26444

LOCK WASHER

lock, camshaft nut

1шт.

0971ab

A26445

NUT

hex, camshaft, 1-1/8" N.C.

1шт.

0972ab

O972AB

BUTTON thrust, camshaft

1шт.

01149ab

O1149AB

CAMSHAFT

1шт.

01156ab1

O1156AB1

VALVE inlet, gasoline equipment (See O10332AB)

4шт.

01167ab

380718R1

WASHER

valve rocker arm shaft

4шт.

01168ab1

O1168AB1

BUSHING valve rocker arm

8шт.

01208ab

O1208AB

WASHER thrust, camshaft

1шт.

01209ab2

O1209AB2

PLUNGER thrust, camshaft

1шт.

01440ab

A26530

SPRING

thrust, camshaft

1шт.

01517ab

O1517AB

SPRING valve rocker arm shaft

2шт.

02731ab

A26663

RETAINER

WASHER valve spring retainer (See O8973AB, 4533AA and 4715AA)

4шт.

02803ab1

O2803AB1

PLUG valve rocker arm shaft

4шт.

03100ab

O3100AB

SPRING valve rocker arm shaft end

4шт.

03621ab

O3621AB

INSERT exhaust valve seat (See O9105AA)

4шт.

05468ab

A26887

ROD

push

8шт.

06048ab1

O6048AB1

VALVE exhaust (See O10333AB)

4шт.

08743ab

A27456

GUIDE

inlet and exhaust valve spring

8шт.

08973ab

O8973AB

RETAINER inlet valve spring, for 4767AA cylinder head (LP gas)

4шт.

08974ab

60437R1

KEY

LOCK inlet and exhaust valve spring retainer, for 4767AA cylinder head (LP gas)

16шт.

09105ab

O9105AB

INSERT exhaust valve seat stellate faced, for 3947AA cylinder head (See O3621AB)

4шт.

09778ab

A27883

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW push rod adjusting

8шт.

NUT hex jam, push rod adjusting screw, 3/8" N.F.

8шт.

010329ab

O10329AB

INSERT exhaust valve seat, for 4767AA cylinder head (LP gas)

4шт.

010332ab

O10332AB

VALVE inlet, for 4767AA cylinder head (LP gas)

4шт.

010332ab

O10333AB

VALVE exhaust, for 4767AA cylinder head (LP gas)

4шт.

49aa

49AA

ARM valve rocker, with bushing, R.H.

4шт.

50aa

50AA

ARM valve rocker, with bushing, L.H.

4шт.

b535aa

B535AA

SHAFT valve rocker arm

2шт.

PIN cotter, valve rocker arm shaft, 3/16" x 1-1/4"

4шт.

ELBOW male, valve rocker arm shaft, Dole A-7, 3/16" tube x 1/8" PT)

2шт.

4533aa

4533AA

ROTOCAP exhaust valve, for A9203 and O6048AB1 valves (See O2713AB and 4715AA)

4шт.

4715aa

4715AA

ROTOCAP exhaust valve, for O10333AB valve

4шт.

4806a

4806A

"Y" connection at cylinder head, oil lines

1шт.

SCREW compression, oil lines to valve rocker arms, Dole A110, 3/16" tube x 1/8" PT)

2шт.

01348ab1

O1348AB1

CONNECTION oil gauge tube

1шт.

TEE flex, Imperial No. 71FL, oil gauge tube connection, 3/16" tube x 1/8" PT)

1шт.

02347ab

O2347AB

CLIP for O6199AB oil gauge tube

1шт.

SCREW round head machine, oil gauge tube clip, with nut and lockwasher, 5/16" x 5/8" N.C.

1шт.

02804ab

O2804AB

SCREW oil connection, (Used with 51AA cylinder head) (See O8728AB)

1шт.

SCREW compression, Dole A110, 3/16" tube x 1/8" PT)

1шт.

02820ab2

O2820AB2

TUBE, Serial Range: tee-governor

1шт.

02821ab

O2821AB

TUBE tee to oil gauge connection

1шт.

02822ab

O2822AB

TUBE tee to cylinder head

1шт.

UNION oil line to valve rocker arm, Dole A10, 3/16" tube size

1шт.

02823ab

O2823AB

TUBE "Y" connection to front rocker arm shaft

1шт.

ELBOW male, oil line to valve rocker arm, Dole A7, 3/16" tube x 1/8" PT)

1шт.

02824ab

O2824AB

TUBE "Y" connection to rear rocker arm shaft

1шт.

ELBOW male, oil line to valve rocker arm, Dole A7, 3/16" tube x 1/8" PT

1шт.

02825ab

A26673

CLIP

oil, Serial Range: line-governor

2шт.

SCREW round head machine, oil line to governor clip, with lockwasher, 1/4" x 3/8" N.C.

2шт.

02826ab

O2826AB

CLIP oil line to governor at center of cylinder block

1шт.

SCREW round head machine, oil line to governor clip, with lockwasher, 1/4" x 3/8" N.C.

1шт.

04370ab

536967R1

ELECTRICAL GAUGE

GAUGE oil pressure, standard (See O7732AB)

1шт.

CONNECTOR female, Imperial flex, No. 66FL, oil pressure gauge, 3/16" tube x 1/8" PT

1шт.

06192ab

O6192AB

LOOM oil pressure gauge tube

1шт.

06199ab

O6199AB

TUBE oil pressure gauge

1шт.

06207ab

O6207AB

SUPPORT for O2347AB clip for oil gauge tube

1шт.

BOLT hex head, oil gauge tube clip support, 1/2" x 1-3/4" N.C.

1шт.

07732ab

O7732AB

GAUGE oil pressure metric (For export) (See O4370AB)

1шт.

07768ab

O7768AB

GASKET oil connection screw at cylinder head, for O2804AB or O8728AB

1шт.

08728ab

O8728AB

SCREW oil connection, at cylinder head, (Used with 3943AA, 4767AA or 3947AA cylinder head) (See O2804AB)

1шт.

SCREW compression, Dole A110, 3/16" tube x 1/8" PT

1шт.
