Запчасти Case IH LA-SERIES (003) - OIL PUMP (02) - ENGINE

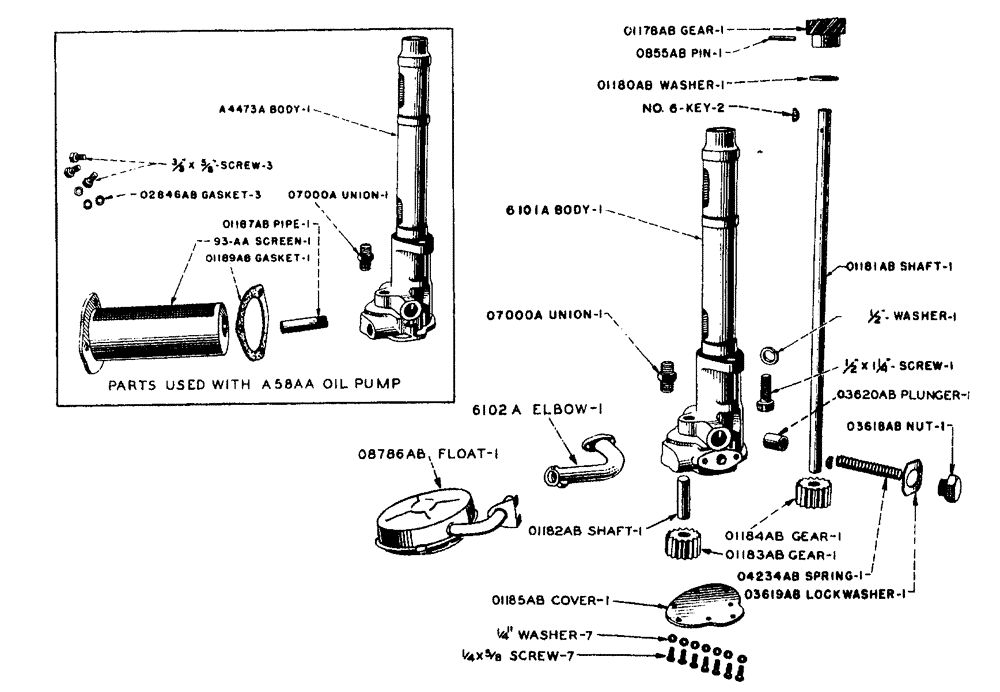

Схема запчастей Case IH LA-SERIES - (003) - OIL PUMP (02) - ENGINE
a58aa
a4473a
0855ab
01182ab
08786ab
01178ab
04234ab
01181ab
93aa
03620ab
01180ab
03618ab
01187ab
01183ab
6102a
07000a
07000a
02846ab
01189ab
01185ab
03619ab
6101a
01184ab

Артикул

Название

Примечание

Количество

a4473a

A4473A

BODY for A58AA oil pump (See 6101A)

1шт.

SCREW hex head cap, N.C. thread, 1/2" x 1-1/4"

1шт.

WASHER standard lock, 1/2"

1шт.

4475a

A28330

SCREEN

HEAD oil pump screen (Use 93AA)

1шт.

6101a

6101A

BODY for 3982AA oil pump (See A4473A)

1шт.

SCREW hex head cap, N.C. thread, 1/2" x 1-1/4"

1шт.

WASHER standard lock, 1/2"

1шт.

6102a

6102A

ELBOW inlet, for 3982AA oil pump (See O1187AB)

1шт.

SCREW hex head cap, N.C. thread, 5/16" x 7/8"

2шт.

WASHER standard lock, 5/16"

2шт.

07000a

O7000A

UNION flared tube, 1/2" tube size x 3/8" pipe thread, for 06786AB tube

1шт.

0855ab

O855AB

PIN oil pump drive gear

1шт.

01178ab

O1178AB

GEAR oil pump drive

1шт.

KEY Woodruff, No 6

1шт.

01180ab

O1180AB

WASHER thrust, oil pump drive gear

1шт.

01181ab

O1181AB

SHAFT oil pump drive

1шт.

KEY Woodruff, No. 6

2шт.

01182ab

O1182AB

SHAFT oil pump stub

1шт.

01183ab

A26471

GEAR

oil pump, without keyway

1шт.

01184ab

O1184AB

GEAR oil pump, with keyway

1шт.

KEY Woodruff, No. 6

1шт.

01185ab

O1185AB

COVER oil pump body

1шт.

SCREW round head machine, N.C. thread, 1/4" x 5/8"

7шт.

WASHER standard lock, 14"

7шт.

01187ab

O1187AB

PIPE inlet, 3/8" x 2-1/2" long, for A58AA oil pump

1шт.

01189ab

A31037

GASKET

for 93AA oil pump screen

1шт.

02846ab

A26676

GASKET

for 93AA oil pump screen cap screw

3шт.

03618ab

O3618AB

NUT oil pump relief

1шт.

03619ab

O3619AB

WASHER lock, oil pump relief nut

1шт.

03620ab

O3620AB

PLUNGER oil pump relief

1шт.

04234ab

A26776

SPRING

oil pump relief plunger

1шт.

08786ab

A27476

FILTER SCREEN

SCREEN float - O type, for 3982AA oil pump (See 93AA)

1шт.

PIN cotter, 3/32" x 1-1/2"

1шт.

a58aa

A58AA

PUMP ASSEMBLY oil, less screen and elbow (Prior to tractor No. 5418607) (See 3982AA)

1шт.

93aa

A28330

SCREEN

for A58AA oil pump (See O8786AB)

1шт.

SCREW hex head cap, N.C. thread, 3/8" x 5/8"

3шт.

3982aa

3982AA

PUMP ASSEMBLY oil, less screen (Tractor No. 5418607 and after) (See A58AA)

1шт.

Выбрано товаров: 37
