(106) - SWINGING DRAW BAR WITH AUTOMATIC COUPLER

Запчасти Case IH LA-SERIES (106) - SWINGING DRAW BAR WITH AUTOMATIC COUPLER (09) - CHASSIS

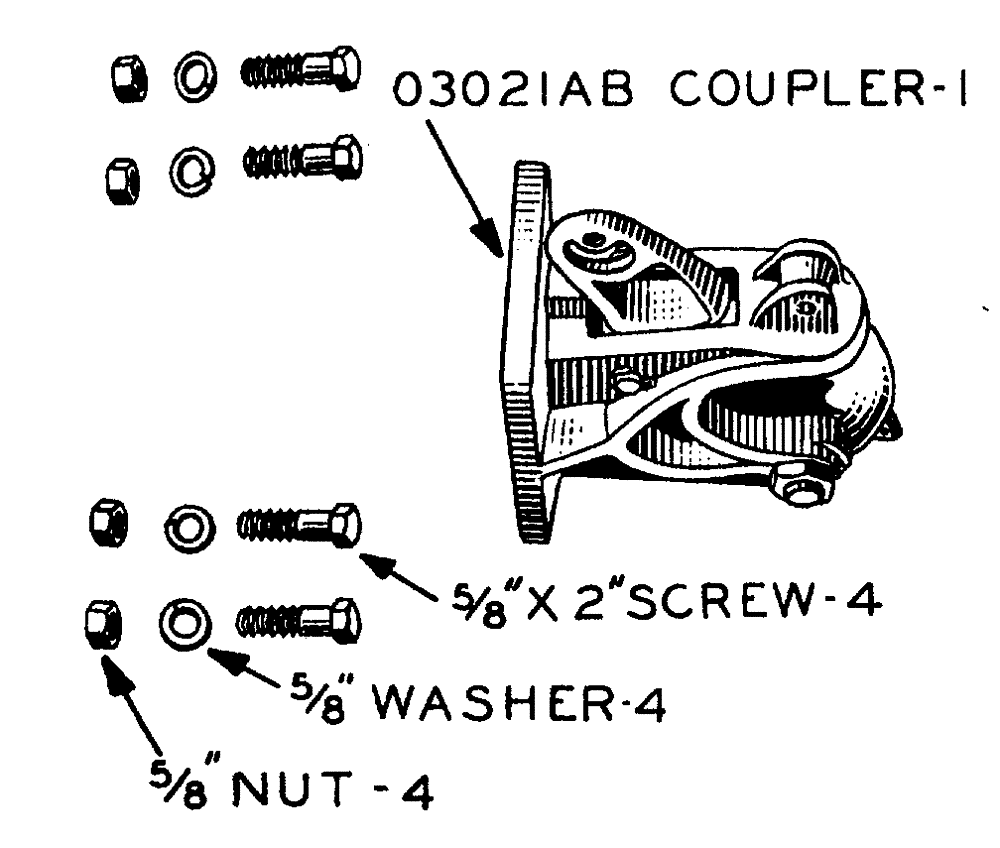

Схема запчастей Case IH LA-SERIES - (106) - SWINGING DRAW BAR WITH AUTOMATIC COUPLER (09) - CHASSIS
03021ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

03021ab

O3021AB

COUPLER automatic

1шт.

SCREW cap, hex head, N.F. thread, 5/8" x 2"

4шт.

NUT light, hex, N.F. thread, 5/8"

4шт.

WASHER lock, standard, 5/8"

4шт.

2984aa

2984AA

BAR draw, with roller strap

1шт.
